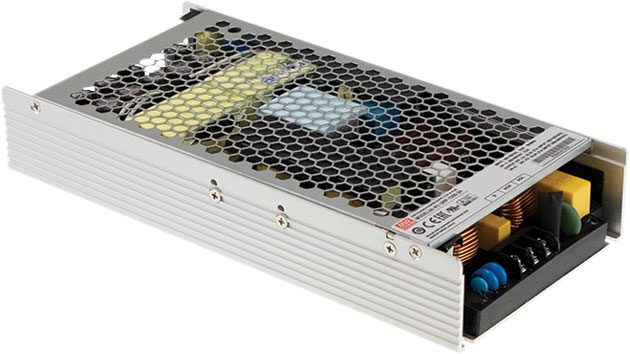

Power supply: switching; modular; MEAN WELL

Manufacturer	MEAN WELL
Type of power supply	switching
Number of outputs	1
Electrical connection	terminal block
Protection	anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP, overheating OTP
Caution!	rated parameters obtained at full load

Symbol	Power	Output voltage	Out. curr.	Supply voltage	Supply voltage	Body dim.	Efficiency
	[W]	[V DC]	[A]	[V AC]	[V DC]	[mm]	[%]
UHP-200-3.3	132	3.3	40	90...264	127...370	194x55x26	89
UHP-200-4.2	168	4.2	40	90...264	127...370	194x55x26	90
UHP-200-5	200	5	40	90...264	127...370	194x55x26	91
UHP-200-12	200.4	12	16.7	90...264	127...370	194x55x26	93
UHP-200-15	201	15	13.4	90...264	127...370	194x55x26	94
UHP-200-24	201.6	24	8.4	90...264	127...370	194x55x26	94
UHP-200-36	201.6	36	5.6	90...264	127...370	194x55x26	94
UHP-200-48	201.6	48	4.2	90...264	127...370	194x55x26	94
UHP-200-55	200	55	-	-	127...370	-	-
UHP-200R-3.3	132	3.3	40	90...264	127...370	194x55x26	89
UHP-200R-4.2	168	4.2	40	90...264	127...370	194x55x26	90
UHP-200R-5	200	5	40	90...264	127...370	194x55x26	91
UHP-200R-12	200.4	12	16.7	90...264	127...370	194x55x26	93
UHP-200R-15	201	15	13.4	90...264	127...370	194x55x26	94
UHP-200R-24	201.6	24	8.4	90...264	127...370	194x55x26	94
UHP-200R-36	201.6	36	5.6	90...264	127...370	194x55x26	94
UHP-200R-48	201.6	48	4.2	90...264	127...370	194x55x26	94
UHP-350-3.3	198	3.3	60	90...264	127...370	220x62x31	88.5
UHP-350-4.2	252	4.2	60	90...264	127...370	220x62x31	89
UHP-350-5	300	5	60	90...264	127...370	220x62x31	90
UHP-350-12	350.4	12	29.2	90...264	127...370	220x62x31	91
UHP-350-15	351	15	23.4	90...264	127...370	220x62x31	92
UHP-350-24	350.4	24	14.6	90...264	127...370	220x62x31	94
UHP-350-36	351	36	9.75	90...264	127...370	220x62x31	94
UHP-350-48	350.4	48	7.3	90...264	127...370	220x62x31	94
UHP-350R-3.3	198	3.3	60	90...264	127...370	220x62x31	88.5
UHP-350R-4.2	252	4.2	60	90...264	127...370	220x62x31	89
UHP-350R-5	300	5	60	90...264	127...370	220x62x31	90
UHP-350R-12	350.4	12	29.2	90...264	127...370	220x62x31	91
UHP-350R-15	351	15	23.4	90...264	127...370	220x62x31	92
UHP-350R-24	350.4	24	14.6	90...264	127...370	220x62x31	94
UHP-350R-36	351	36	9.75	90...264	127...370	220x62x31	94
UHP-350R-48	350.4	48	7.3	90...264	127...370	220x62x31	94
UHP-500-4.2	336	4.2	80	90...264	127...370	232x81x31	89
UHP-500-5	400	5	80	90...264	127...370	232x81x31	90
UHP-500-12	500.4	12	41.7	90...264	127...370	232x81x31	94
UHP-500-15	501	15	33.4	90...264	127...370	232x81x31	94
UHP-500-24	501.6	24	20.9	90...264	127...370	232x81x31	94.5
UHP-500-36	500.4	36	13.9	90...264	127...370	232x81x31	95
UHP-500-48	501.6	48	10.45	90...264	127...370	232x81x31	95
UHP-500R-4.2	336	4.2	80	90...264	127...370	232x81x31	89
UHP-500R-5	400	5	80	90...264	127...370	232x81x31	90
UHP-500R-12	500.4	12	41.7	90...264	127...370	232x81x31	94
UHP-500R-15	501	15	33.4	90...264	127...370	232x81x31	94
UHP-500R-24	501.6	24	20.9	90...264	127...370	232x81x31	94.5
UHP-500R-36	500.4	36	13.9	90...264	127...370	232x81x31	95
UHP-500R-48	501.6	48	10.45	90...264	127...370	232x81x31	95
UHP-750-12	720	12	60	90...264	127...370	237x100x41	93.5
UHP-750-24	750	24	31.3	90...264	127...370	237x100x41	95
UHP-750-36	750	36	20.9	90...264	127...370	237x100x41	95
UHP-750-48	750	48	15.7	90...264	127...370	237x100x41	95
UHP-1000-12	960	12	80	90...264	250...370	240x115x41	94
UHP-1000-24	1000	24	42	90...264	250...370	240x115x41	95
UHP-1000-36	1000	36	28	90...264	250...370	240x115x41	95.5
UHP-1000-48	1000	48	21	90...264	250...370	240x115x41	96
UHP-1500-24	1500	24	62.5	90...264	250...370	290x140x41	95
UHP-1500-24CAN	1500	24	62.5	90...264	250...370	290x140x41	95
UHP-1500-48	1512	48	31.5	90...264	250...370	290x140x41	96
UHP-1500-48CAN	1512	48	31.5	90...264	250...370	290x140x41	96
UHP-1500-115	1500	115	13.05	90...264	250...370	290x140x41	95
UHP-1500-230	1500	230	6.52	90...264	250...370	290x140x41	95
UHP-1500-380	1500	380	3.95	90...264	250...370	290x140x41	95.5
UHP-1500-380E	1500	380	3.95	90...264	250...370	290x140x41	95.5
UHP-2500-24CAN	2500.8	24	104.2	90...264	250...370	310x150x60	95
UHP-2500-48CAN	2500.8	48	52.1	90...264	250...370	310x150x60	96

Kind of power supply:

for building in (UHP-2xxx, UHP-350-3.3, UHP-350-36, UHP-350-4.2, UHP-350-48, UHP-350-5, UHP-350-15, UHP-350-24, UHP-350R-xxx, UHP-500-xxx, UHP-500R-4.2, UHP-500R-48, UHP-500R-5, UHP-500R-15, UHP-500R-24, UHP-500R-36, UHP-750-xx, UHP-1xxx)
modular

Operating temperature:

-30...70°C (UHP-2xxx, UHP-350xxx, UHP-750-xx, UHP-1xxx)
-20...70°C (UHP-500xxx)

Additional functions:

CANBus (UHP-xxxCAN)
active PFC
redundancy (UHP-200R-xxx, UHP-350R-xxx, UHP-500R-xxx)
output voltage control (UHP-1xxx, UHP-2500-24CAN, UHP-2500-48CAN)
output current control (UHP-1xxx, UHP-2500-24CAN, UHP-2500-48CAN)

Manufacturer series:

UHP-200 (UHP-200xxx)
UHP-350 (UHP-350xxx)
UHP-500 (UHP-500xxx)
UHP-750 (UHP-750-xx)
UHP-1000 (UHP-1000-xx)
UHP-1500 (UHP-1500-24, UHP-1500-24CAN, UHP-1500-48, UHP-1500-48CAN)
UHP-1500-HV (UHP-1500-115, UHP-1500-230, UHP-1500-380, UHP-1500-380E)
UHP-2500 (UHP-2500-24CAN, UHP-2500-48CAN)

Dimensions:

Fig. 1. (UHP-200-3.3, UHP-200-36, UHP-200-4.2, UHP-200-48, UHP-200-5, UHP-200-12, UHP-200-15, UHP-200-24, UHP-200R-xxx)

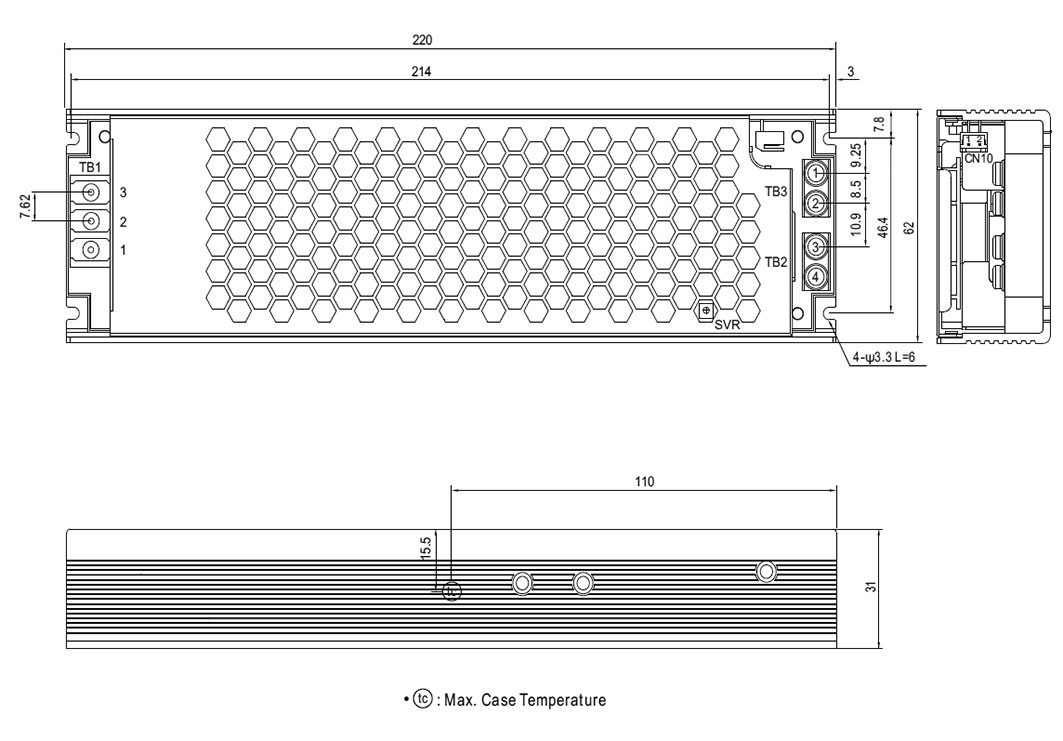

Fig. 2. (UHP-350xxx)
Fig. 3. (UHP-500xxx)
Fig. 4. (UHP-750-xx)
Fig. 5. (UHP-1000-xx)

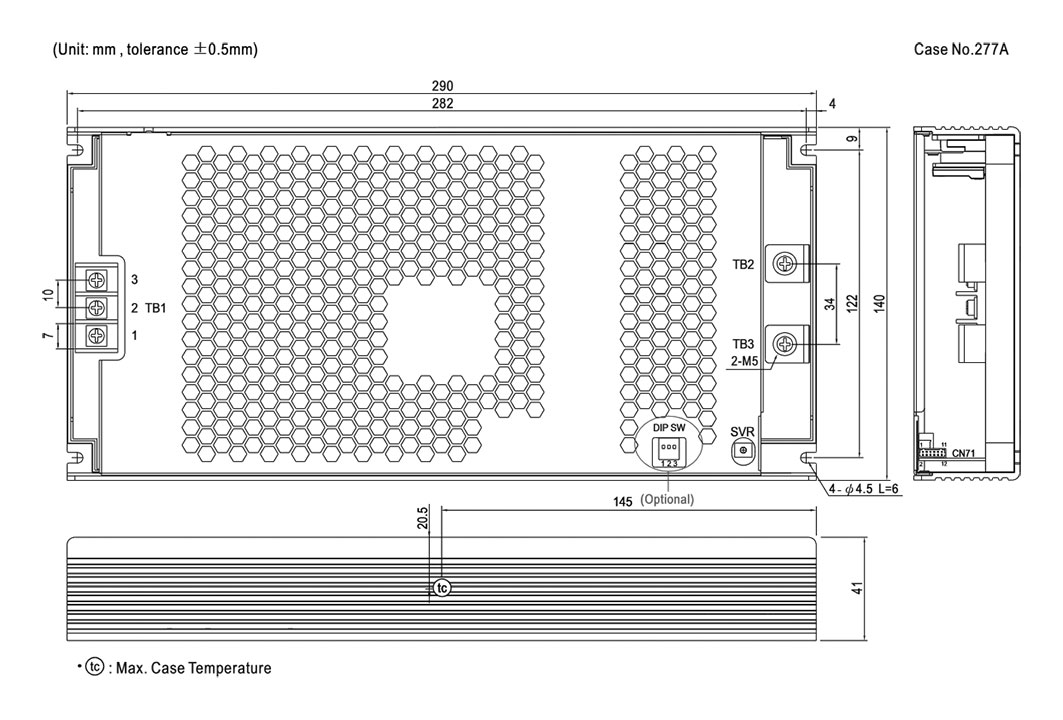

Fig. 6. (UHP-1500-24, UHP-1500-24CAN, UHP-1500-48, UHP-1500-48CAN)

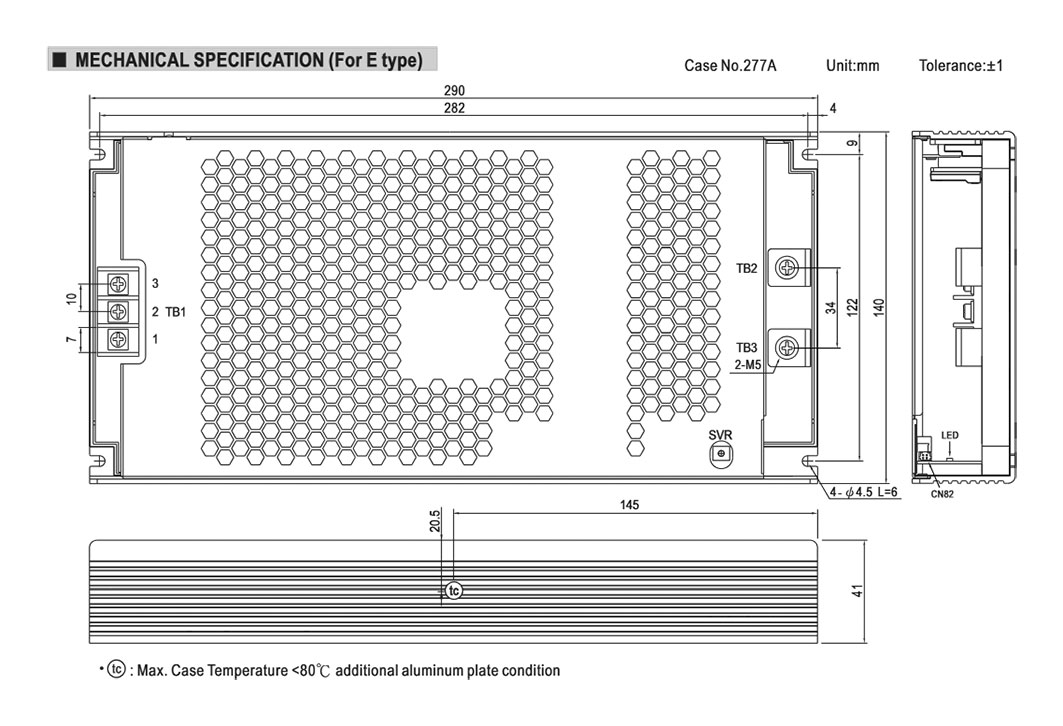

Fig. 7. (UHP-1500-115, UHP-1500-230, UHP-1500-380, UHP-1500-380E)

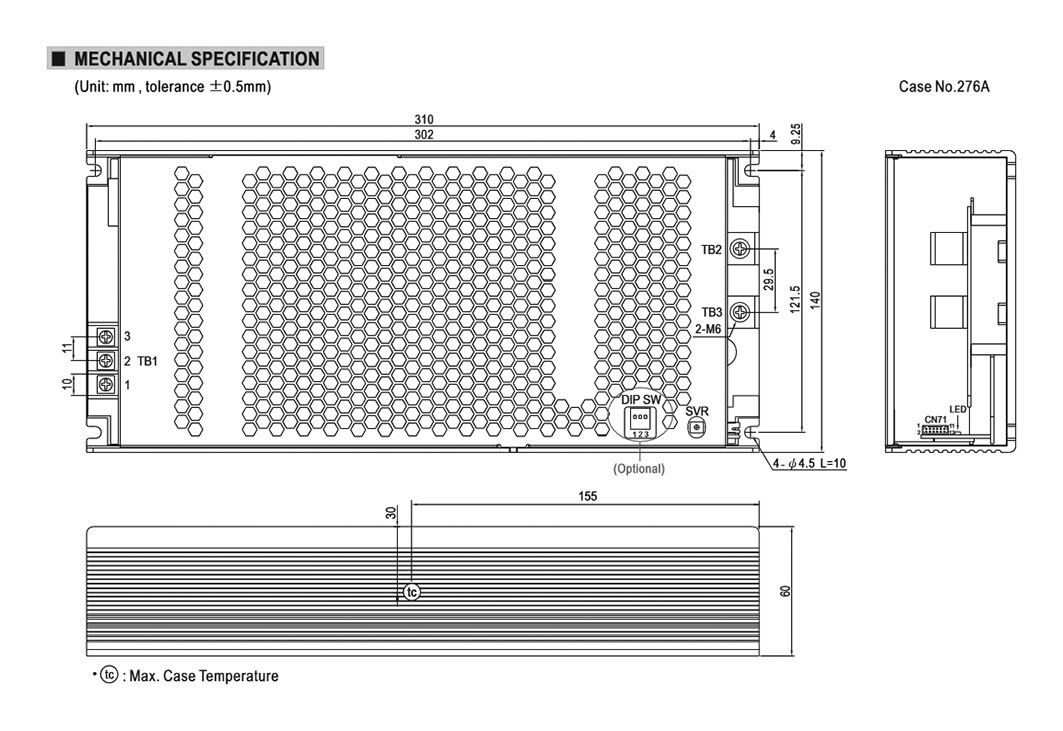

Fig. 8. (UHP-2500-24CAN, UHP-2500-48CAN)

Kind of case:

232C (UHP-350xxx)
233D (UHP-500xxx)
249B (UHP-200-3.3, UHP-200-36, UHP-200-4.2, UHP-200-48, UHP-200-5, UHP-200-12, UHP-200-15, UHP-200-24, UHP-200R-xxx)
270B (UHP-750-xx)
272A (UHP-1000-xx)
276A (UHP-2500-24CAN, UHP-2500-48CAN)
277A (UHP-1500-xxx)

Output voltage range:

3.2...3.5V DC (UHP-xxx-3.3)
3.6...4.4V DC (UHP-xxx-4.2)
4.5...5.5V DC (UHP-xxx-5)
11.4...12.6V DC (UHP-350-12, UHP-350R-12, UHP-500-12, UHP-500R-12)
11.4...12.8V DC (UHP-200-12, UHP-200R-12)
12...14.4V DC (UHP-750-12, UHP-1000-12)
14.3...15.8V DC (UHP-xxx-15)
22.8...25.2V DC (UHP-200-24, UHP-200R-24, UHP-350-24, UHP-350R-24, UHP-500-24, UHP-500R-24)
24...28.8V DC (UHP-750-24, UHP-1000-24, UHP-1500-24, UHP-1500-24CAN, UHP-2500-24CAN)
34.2...37.8V DC (UHP-200-36, UHP-200R-36, UHP-350-36, UHP-350R-36, UHP-500-36, UHP-500R-36)
36...43.2V DC (UHP-750-36, UHP-1000-36)
45.6...50.4V DC (UHP-200-48, UHP-200R-48, UHP-350-48, UHP-350R-48, UHP-500-48, UHP-500R-48)
48...57.6V DC (UHP-750-48, UHP-1000-48, UHP-1500-48, UHP-1500-48CAN, UHP-2500-48CAN)
115...138V DC (UHP-1500-115)
216...260V DC (UHP-1500-230)
334...400V DC (UHP-1500-380, UHP-1500-380E)
