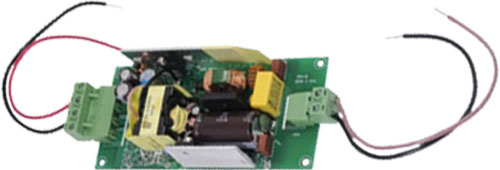

Power supply: switching; open; AIMTEC
| Manufacturer | AIMTEC |
| Type of power supply | switching |
| Protection | anti-overload OPP, anti-overvoltage OVP, short circuit protection SCP |
| Kind of power supply | open |
| Caution! | rated parameters obtained at full load |
| Symbol | Power | Output voltage | Iout | Uout2 | Iout2 | Body dim. | Efficiency |
|---|---|---|---|---|---|---|---|
| [W] | [V DC] | [A] | [V DC] | [A] | [mm] | [%] | |
| AMEOC30-3.3SMAZ | 19.8 | 3.3 | 6 | - | - | 125x59x26 | 80 |
| AMEOC30-12DMAZ | 30 | 12 | 1.25 | -12 | 1.25 | 125x59x26 | 84 |
| AMEOC30-15DMAZ | 30 | 15 | 1 | -15 | 1 | 125x59x26 | 83 |
| AMEOC30-24DMAZ | 30 | 24 | 0.63 | -24 | 0.63 | 125x59x26 | 82 |
| AMEOC40-12SMAZ | 40 | 12 | 3.33 | - | - | 125x59x26 | 84 |
| AMEOC40-5DMAZ | 40 | 5 | 4 | -5 | 4 | 125x59x26 | 80 |
| AMEOC40-12DMAZ | 40 | 12 | 1.66 | -12 | 1.66 | 125x59x26 | 85 |
| AMEOC40-24DMAZ | 40 | 24 | 0.84 | -24 | 0.84 | 125x59x26 | 77 |
| AMEOF65-48SHAMJZ-B | 65 | 48 | 1.36 | - | - | 76.2x50.8x26.5 | 91 |
| AMEOF120-48SHAMJZB | 120 | 48 | 2.5 | - | - | 76.2x50.8x31 | 94.5 |
| AMEOF225-12SHAMJZB | 225 | 12 | 18.75 | - | - | - | - |
| AMEOF225-24SHAMJZB | 225 | 24 | 9.4 | - | - | - | - |
| AMEOF225-24SHAMJZF | 225 | 24 | 9.4 | - | - | - | - |
| AMEOF225-48SHAMJZF | 225 | 48 | 4.7 | - | - | - | - |
| AMEOF350-24SHAMJZF | 350 | 24 | 14.6 | - | - | - | - |
| AMEOF350-48SHAMJZF | 350 | 48 | 7.3 | - | - | - | - |
| AMEOF120-48SHAMJZ | 120 | 45.6...50.4 | 2.5 | - | - | 50.8x76.2x31 | 94.5 |
| AMEOF225-48SHAMJZ | 225 | 47.1...50.4 | 4.7 | - | - | 50.8x101.6x25.4 | 94 |
| AMEOF45-5SHAMJZ | 40 | 4.5...5.5 | 8 | - | - | 50.8x76.2x26.5 | 85 |
Electrical connection:
- terminal block (AMEOCxxxMAZ)
Supply voltage:
- 80...264V AC (AMEOF65-48SHAMJZ-B, AMEOF45-5SHAMJZ)
- 85...264V AC (AMEOF120-48SHAMJZB, AMEOF120-48SHAMJZ, AMEOF225-xxx, AMEOF350-24SHAMJZF, AMEOF350-48SHAMJZF)
- 90...264V AC (AMEOCxxxMAZ)
Supply voltage:
- 100...370V DC (AMEOF65-48SHAMJZ-B)
- 120...370V DC (AMEOF120-48SHAMJZB, AMEOF120-48SHAMJZ, AMEOF225-xxx, AMEOF350-24SHAMJZF, AMEOF350-48SHAMJZF, AMEOF45-5SHAMJZ)
- 130...370V DC (AMEOCxxxMAZ)
Operating temperature:
- -40...70°C (AMEOF225-xxx, AMEOF350-24SHAMJZF, AMEOF350-48SHAMJZF)
- -40...85°C (AMEOCxxxMAZ, AMEOF65-48SHAMJZ-B, AMEOF120-48SHAMJZB, AMEOF120-48SHAMJZ, AMEOF45-5SHAMJZ)
Manufacturer series:
- AMEOC (AMEOCxxxMAZ)
- AMEOF65-HAMJZ (AMEOF65-48SHAMJZ-B)
- AMEOF120-HAMJZ (AMEOF120-48SHAMJZB, AMEOF120-48SHAMJZ)
- AMEOF225-HAMJZ (AMEOF225-xxx)
- AMEOF350-HAMJZ (AMEOF350-24SHAMJZF, AMEOF350-48SHAMJZF)
- AMEOF45-HAMJZ (AMEOF45-5SHAMJZ)
Dimensions:

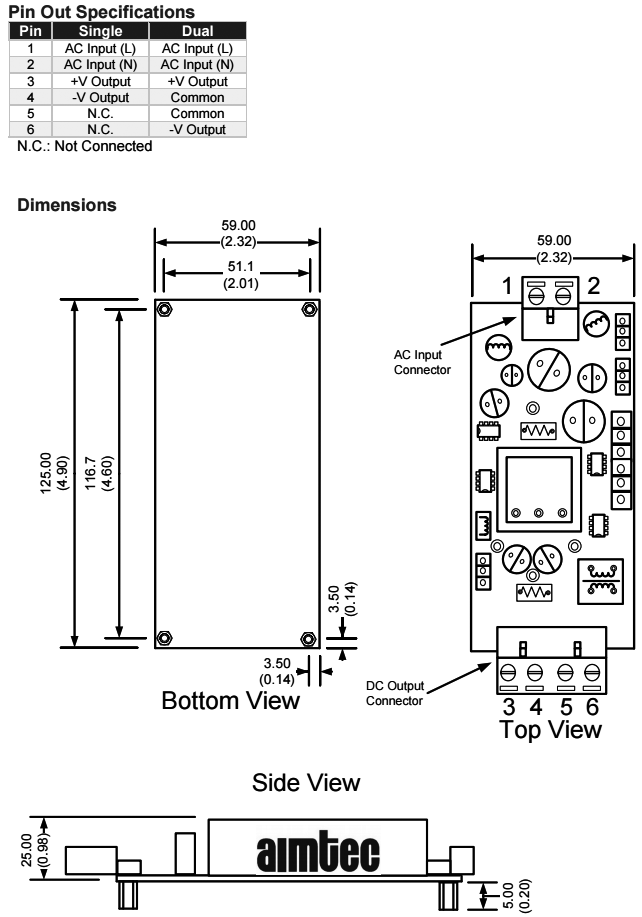

- Fig. 1. (AMEOCxxxMAZ)

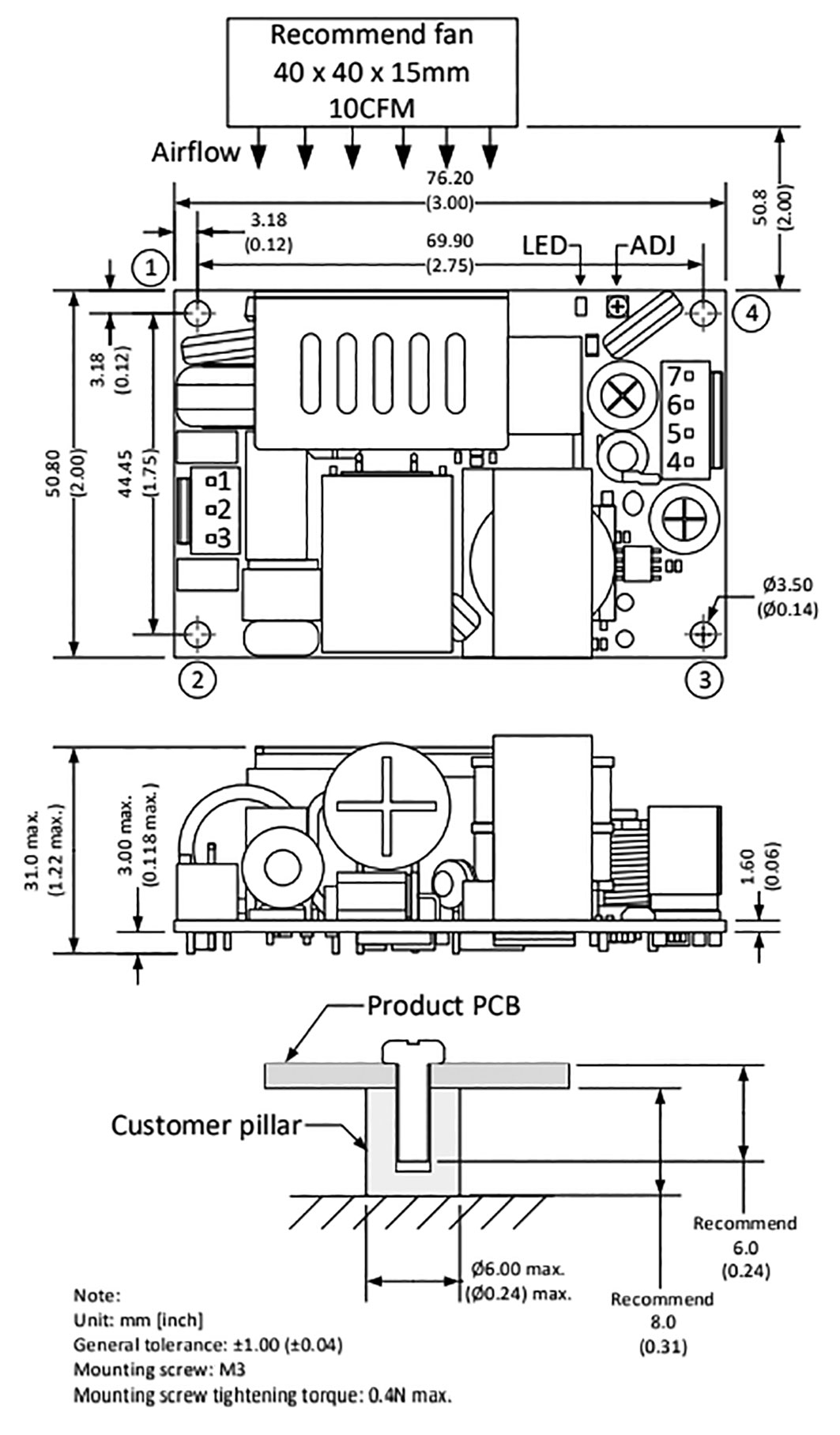

- Fig. 2. (AMEOF120-48SHAMJZ)
Number of outputs:
- 1 (AMEOC30-3.3SMAZ, AMEOC40-12SMAZ, AMEOFxxx)
- 2 (AMEOCxxxDMAZ)
Insulation voltage:
