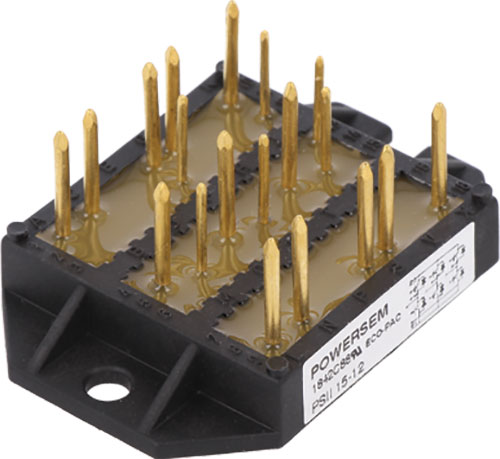

POWERSEM IGBT modules
| Symbol | Manufacturer | Type of semiconductor module | Structure | Topology | Urmax | Ic | Icm | Case | Electr. mounting | Uge | Power dissipation | Application | Mech. mounting |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [A] | [A] | [V] | [W] | |||||||||
| PSHI25/06 | POWERSEM | IGBT | transistor/transistor | H-bridge | 600 | 17 | 30 | ECO-PAC 2 | THT | ±20 | 82 | motors | screw |
| PSHI25/12 | POWERSEM | IGBT | transistor/transistor | H-bridge | 1.2k | 21 | 35 | ECO-PAC 2 | THT | ±20 | 130 | motors | screw |
| PSI130/06 | POWERSEM | IGBT | transistor/transistor | IGBT half-bridge | 600 | 83 | 200 | ECO-PAC 2 | THT | ±20 | 379 | motors | screw |
| PSI25/12 | POWERSEM | IGBT | transistor/transistor | IGBT half-bridge | 1.2k | 21 | 35 | ECO-PAC 2 | THT | ±20 | 130 | motors | screw |
| PSI50/12 | POWERSEM | IGBT | transistor/transistor | IGBT half-bridge | 1.2k | 33 | 50 | ECO-PAC 2 | THT | ±20 | 208 | motors | screw |
| PSII15/12 | POWERSEM | IGBT | transistor/transistor | IGBT three-phase bridge | 1.2k | 14 | 20 | ECO-PAC 2 | THT | ±20 | 90 | Inverter | screw |
| PSII24/06 | POWERSEM | IGBT | transistor/transistor | IGBT three-phase bridge | 600 | 14 | 20 | ECO-PAC 2 | THT | ±20 | 73 | Inverter | screw |
| PSII35/06 | POWERSEM | IGBT | transistor/transistor | IGBT three-phase bridge | 600 | 21 | 40 | ECO-PAC 2 | THT | ±20 | 100 | Inverter | screw |
| PSII6/12 | POWERSEM | IGBT | transistor/transistor | IGBT three-phase bridge | 1.2k | 4.1 | 9.6 | ECO-PAC 2 | THT | ±20 | 40 | Inverter | screw |
| PSIS100/06 | POWERSEM | IGBT | diode/transistor | buck chopper | 600 | 63 | 150 | ECO-PAC 2 | THT | ±20 | 294 | Inverter | screw |
| PSIS130/06 | POWERSEM | IGBT | diode/transistor | buck chopper | 600 | 83 | 200 | ECO-PAC 2 | THT | ±20 | 379 | Inverter | screw |
| PSIS160/12 | POWERSEM | IGBT | diode/transistor | buck chopper | 1.2k | 117 | 200 | ECO-PAC 2 | THT | ±20 | 694 | Inverter | screw |
| PSIS25/06 | POWERSEM | IGBT | diode/transistor | buck chopper | 600 | 17 | 30 | ECO-PAC 2 | THT | ±20 | 82 | Inverter | screw |
| PSIS25/12 | POWERSEM | IGBT | diode/transistor | buck chopper | 1.2k | 21 | 35 | ECO-PAC 2 | THT | ±20 | 130 | Inverter | screw |
| PSIS50/06 | POWERSEM | IGBT | diode/transistor | buck chopper | 600 | 29 | 60 | ECO-PAC 2 | THT | ±20 | 130 | Inverter | screw |
| PSIS50/12 | POWERSEM | IGBT | diode/transistor | buck chopper | 1.2k | 33 | 50 | ECO-PAC 2 | THT | ±20 | 208 | Inverter | screw |
| PSIS75/12 | POWERSEM | IGBT | diode/transistor | buck chopper | 1.2k | 62 | 100 | ECO-PAC 2 | THT | ±20 | 379 | Inverter | screw |
| PSSI100/06 | POWERSEM | IGBT | diode/transistor | boost chopper | 600 | 63 | 150 | ECO-PAC 2 | THT | ±20 | 294 | Inverter | screw |
| PSSI100/12 | POWERSEM | IGBT | diode/transistor | boost chopper | 1.2k | 94 | 150 | ECO-PAC 2 | THT | ±20 | 568 | Inverter | screw |
| PSSI130/06 | POWERSEM | IGBT | diode/transistor | boost chopper | 600 | 83 | 200 | ECO-PAC 2 | THT | ±20 | 379 | Inverter | screw |
| PSSI160/12 | POWERSEM | IGBT | diode/transistor | boost chopper | 1.2k | 117 | 200 | ECO-PAC 2 | THT | ±20 | 694 | Inverter | screw |
| PSSI25/06 | POWERSEM | IGBT | diode/transistor | boost chopper | 600 | 17 | 30 | ECO-PAC 2 | THT | ±20 | 82 | Inverter | screw |
| PSSI25/12 | POWERSEM | IGBT | diode/transistor | boost chopper | 1.2k | 21 | 35 | ECO-PAC 2 | THT | ±20 | 130 | Inverter | screw |
| PSSI50/06 | POWERSEM | IGBT | diode/transistor | boost chopper | 600 | 29 | 60 | ECO-PAC 2 | THT | ±20 | 130 | Inverter | screw |
| PSSI50/12 | POWERSEM | IGBT | diode/transistor | boost chopper | 1.2k | 33 | 50 | ECO-PAC 2 | THT | ±20 | 208 | Inverter | screw |
| PSSI75/06 | POWERSEM | IGBT | diode/transistor | boost chopper | 600 | 48 | 100 | ECO-PAC 2 | THT | ±20 | 208 | Inverter | screw |
| PSSI75/12 | POWERSEM | IGBT | diode/transistor | boost chopper | 1.2k | 62 | 100 | ECO-PAC 2 | THT | ±20 | 379 | Inverter | screw |
