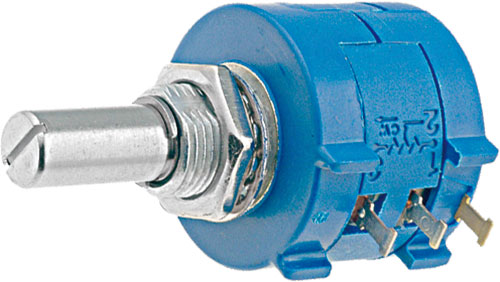

Precise multiturn potentiometers 3590S, Bourns
| Manufacturer | BOURNS |
| Type of potentiometer | shaft |
| Track mat. | wirewound |
| Power | 2W |
| Tolerance | ±5% |
| Temp. coefficient | 50ppm/°C |
| Characteristics | linear |
| Number of electrical turns | 10 |
| Symbol | Linearity tolerance | Body dimensions | Thread length | Shaft length | Min. insulation resistance | Features | Operating temperature | Resist. | Shaft material | Shaft d. | IP rating | Diameter | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [%] | [mm] | [mm] | [mm] | [MΩ] | [°C] | [Ω] | [mm] | [mm] | [mm] | ||||
| 3590S-2-201L | - | 17x9.5 | - | 20.63 | - | - | -10...70 | 200 | - | 6.34 | - | - | - |
| 3590S-1-501L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 500 | plastic | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-2-501L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 500 | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-1-102L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 1k | plastic | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-2-102L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 1k | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-4-102L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 1k | metal | 6.35 | IP65 | 22.22 | 18.6 |
| 3590S-2-202L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 2k | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-4-202L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 2k | metal | 6.35 | IP65 | 22.22 | 18.6 |
| 3590S-1-502L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 5k | plastic | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-2-502L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 5k | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-4-502L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 5k | metal | 6.35 | IP65 | 22.22 | 18.6 |
| 3590S-6-502L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 5k | metal | 6 | IP40 | 22.22 | 18.6 |
| 3590S-1-103L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 10k | plastic | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-2-103L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 10k | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-4-103L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 10k | metal | 6.35 | IP65 | 22.22 | 18.6 |
| 3590S-6-103L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 10k | metal | 6 | IP40 | 22.22 | 18.6 |
| 3590S-1-203L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 20k | plastic | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-2-203L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 20k | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-2-503L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 50k | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-1-104L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 100k | plastic | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-2-104L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 100k | metal | 6.35 | IP40 | 22.22 | 18.6 |
| 3590S-4-104L | ±0.25 | Ø22.22x18.6 | 8 | 12.6 | 1000 | precise | -40...125 | 100k | metal | 6.35 | IP65 | 22.22 | 18.6 |
