Probe: for oscilloscope; passive; STÄUBLI
| Symbol: (68.9366-12028, 68.9433-28) | |
|---|---|
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | grey |
| Conform to the norm | CAT III 300V EN 61010 |
| Symbol: (68.9367-12023, 68.9434-23) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | blue |
| Conform to the norm | CAT III 300V EN 61010 |
| Symbol: (68.9411-28) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | grey |
| Conform to the norm | CAT II 600V EN 61010 |
| Symbol: (68.9411-22) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | red |
| Conform to the norm | CAT II 600V EN 61010 |
| Symbol: (68.9413-22) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 2.5m |
| Colour | red |
| Conform to the norm | CAT II 1000V EN 61010 |

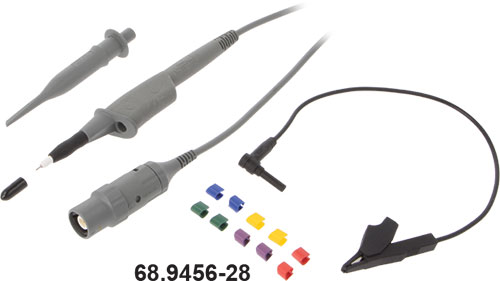

| Symbol: (68.9456-28, 68.9557-28) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | grey |
| Max. input voltage | 1000V |
| Conform to the norm | CAT III 1000V EN 61010 |
| Symbol: (68.9490-21, 68.9870-12021) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | black |
| Conform to the norm | CAT III 300V EN 61010 |
| Symbol: (68.1010-12028, 68.9872-12028) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | grey |
| Conform to the norm | CAT II 1000V EN 61010 |
| Symbol: (68.9501-12028, 68.9558-28) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | grey |
| Conform to the norm | CAT III 600V EN 61010 |
| Symbol: (68.9533-12028) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | grey |
| Conform to the norm | CAT III 1000V EN 61010 |
| Symbol: (68.9548-12023, 68.9559-23) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 1.2m |
| Colour | blue |
| Conform to the norm | CAT III 1000V EN 61010 |
| Symbol: (68.9549-25028, 68.9554-28) | |
| Manufacturer | STÄUBLI |
| Type of measuring probe | for oscilloscope |
| Kind of probe | passive |
| Cable length | 2.5m |
| Colour | grey |
| Conform to the norm | CAT III 1000V EN 61010 |
| Symbol | 68.9366-12028 | 68.9367-12023 | 68.9411-28 | 68.9411-22 | 68.9413-22 | 68.9433-28 | 68.9434-23 | 68.9456-28 | 68.9490-21 | 68.1010-12028 | 68.9501-12028 | 68.9533-12028 | 68.9548-12023 | 68.9549-25028 | 68.9554-28 | 68.9557-28 | 68.9558-28 | 68.9559-23 | 68.9870-12021 | 68.9872-12028 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Attenuator | ||||||||||||||||||||
| - 1:1 | x | x | ||||||||||||||||||
| - 10:1 | x | x | x | x | x | x | x | x | x | x | x | x | x | |||||||
| - 100:1 | x | x | x | x | x | |||||||||||||||
| Compensation range [pF] | 10...25 | 10...25 | 10...30 | 10...30 | 10...30 | 10...25 | 10...25 | 12...25 | - | 10...35 | 10...22 | 10...30 | 12...25 | 10...30 | 10...30 | 10...30 | 10...22 | 12...25 | - | 12...22 |

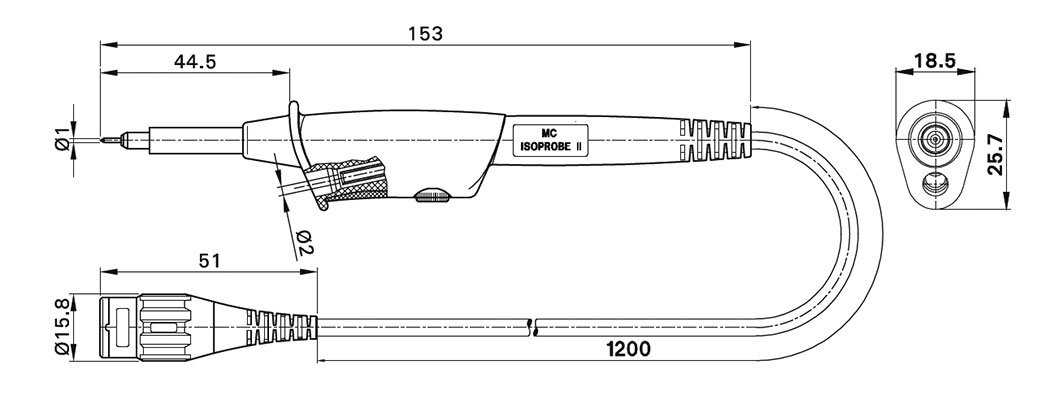

| Symbol: (68.9366-12028) | |
|---|---|
| Dimensions | Fig. 1. |
| Wire insulation material | PVC |

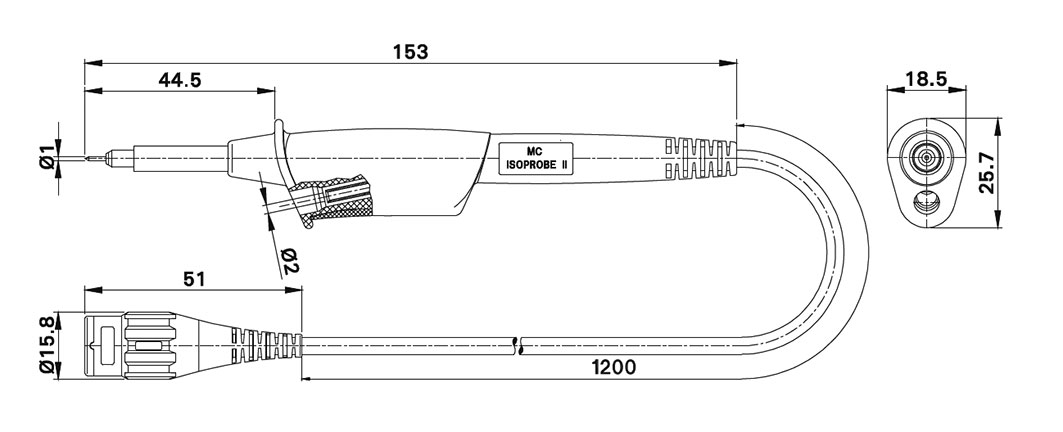

| Symbol: (68.9367-12023) | |
| Dimensions | Fig. 2. |
| Wire insulation material | PVC |
| Symbol: (68.941xxx) | |
| Wire insulation material | PVC |

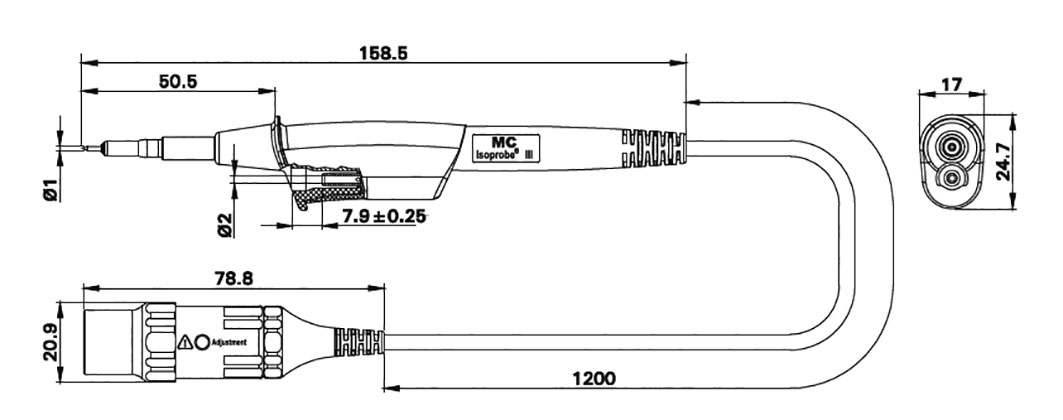

| Symbol: (68.9501-12028) | |
| Dimensions | Fig. 3. |
| Wire insulation material | PVC |

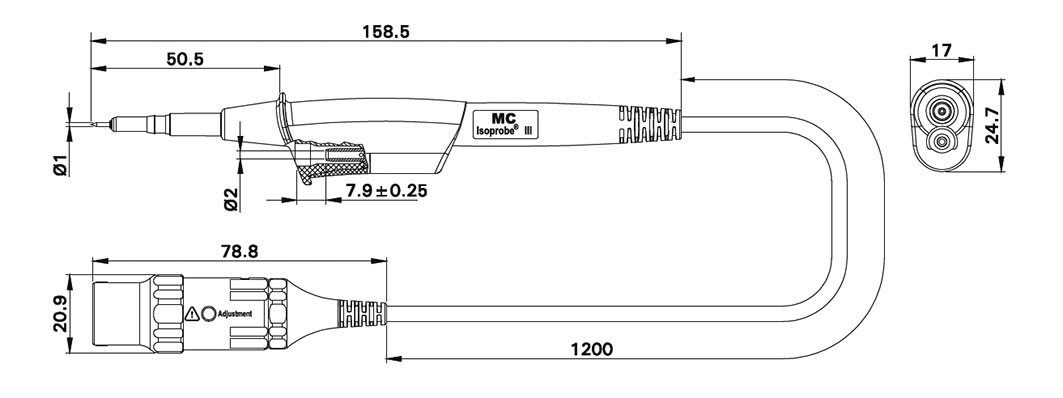

| Symbol: (68.9533-12028) | |
| Dimensions | Fig. 4. |
| Wire insulation material | PVC |

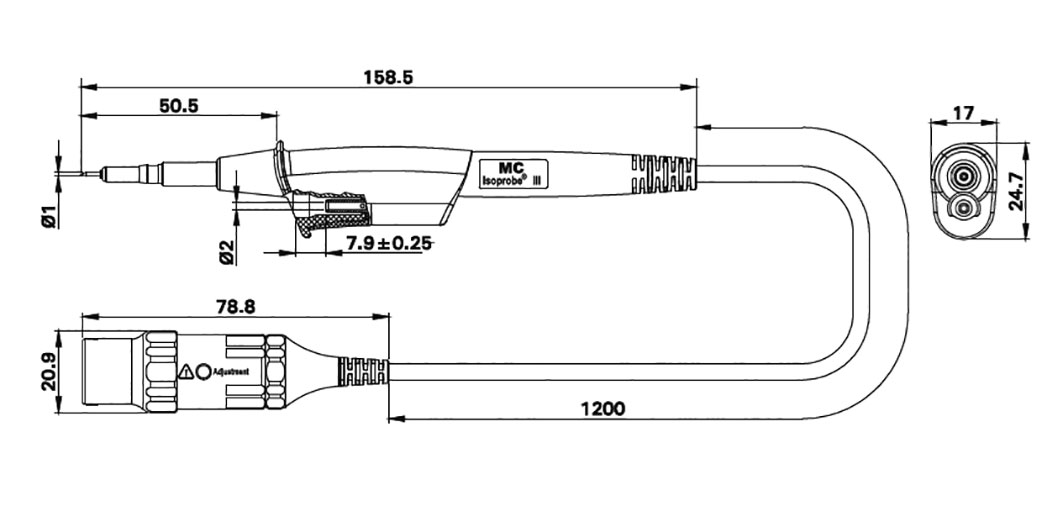

| Symbol: (68.9548-12023) | |
| Dimensions | Fig. 5. |
| Wire insulation material | PVC |

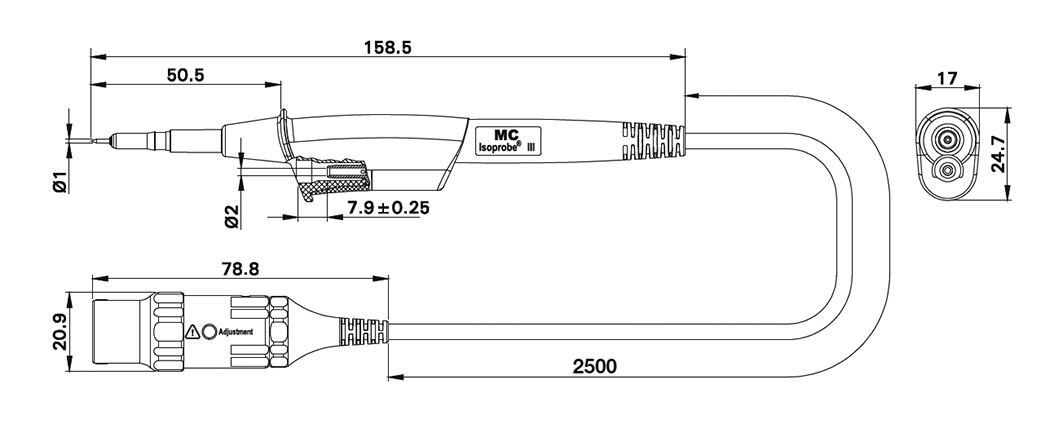

| Symbol: (68.9549-25028) | |
| Dimensions | Fig. 6. |
| Wire insulation material | PVC |

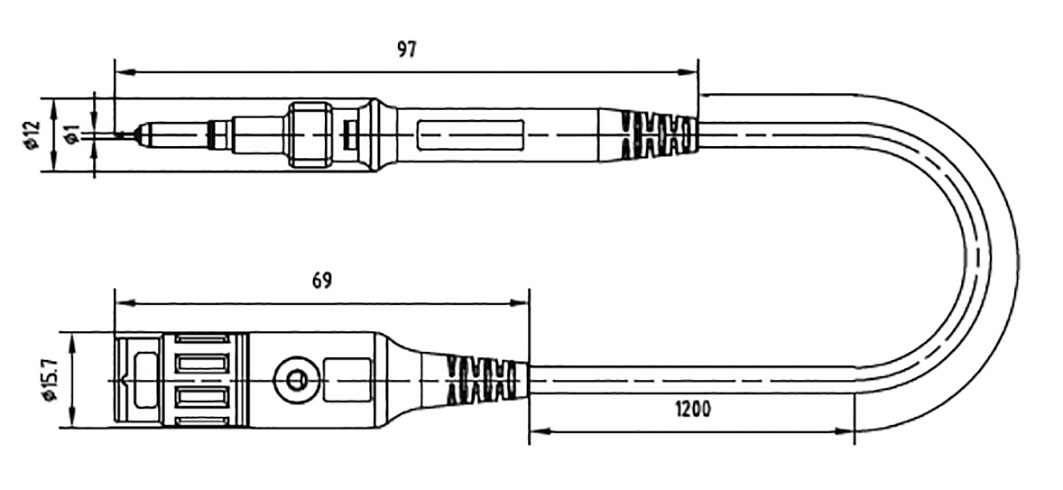

| Symbol: (68.9870-12021) | |
| Dimensions | Fig. 7. |
| Wire insulation material | PVC |

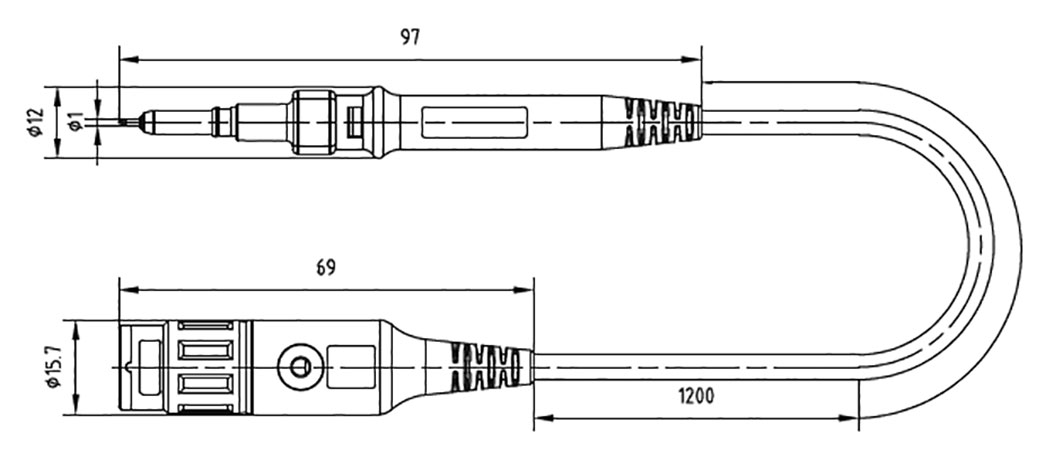

| Symbol: (68.9872-12028) | |
| Dimensions | Fig. 8. |
| Wire insulation material | PVC |
Kit contents:
- adapter (68.941xxx, 68.9433-28, 68.9434-23, 68.9456-28, 68.9558-28, 68.9559-23)
- gripping hook (68.955xxx)
- clip-on probe (68.94xxx)
- clip-on probe x2 (68.9557-28)
- cable (68.9557-28)
- lead with crocodile clip (68.94xxx, 68.955xxx)
- probe (68.94xxx, 68.955xxx)
- insulating bushing (68.9456-28, 68.955xxx)
- plug (68.941xxx, 68.9433-28, 68.9434-23)
- clips kit (68.941xxx, 68.9433-28, 68.9434-23, 68.9456-28, 68.955xxx)
| Symbol | Band | Rise time | Resistance |
|---|---|---|---|
| [MHz] | [ns] | [MΩ] | |
| 68.9366-12028 | 0...500 | 0.9 | 10 |
| 68.9367-12023 | 0...500 | 0.9 | 100 |
| 68.9411-28 | 0...500 | 1 | 10 |
| 68.9411-22 | 0...500 | 1 | 10 |
| 68.9413-22 | 0...150 | 1.3 | 10 |
| 68.9433-28 | 0...500 | 0.9 | 10 |
| 68.9434-23 | 0...500 | 0.9 | 100 |
| 68.9456-28 | 0.0011...35 | <10 | 100 |
| 68.9490-21 | 0...45 | - | - |
| 68.1010-12028 | 0...250 | 1.2 | 10 |
| 68.9501-12028 | 0...500 | 0.9 | 10 |
| 68.9533-12028 | 0...300 | 1.1 | 10 |
| 68.9548-12023 | 0...500 | 0.9 | 100 |
| 68.9549-25028 | 0...250 | 1.3 | 10 |
| 68.9554-28 | 0...250 | 1.3 | 10 |
| 68.9557-28 | 0...300 | 1.1 | 10 |
| 68.9558-28 | 0...500 | 0.9 | 10 |
| 68.9559-23 | 0...500 | 0.9 | 100 |
| 68.9870-12021 | 0...45 | - | - |
| 68.9872-12028 | 0...450 | 1 | 10 |
