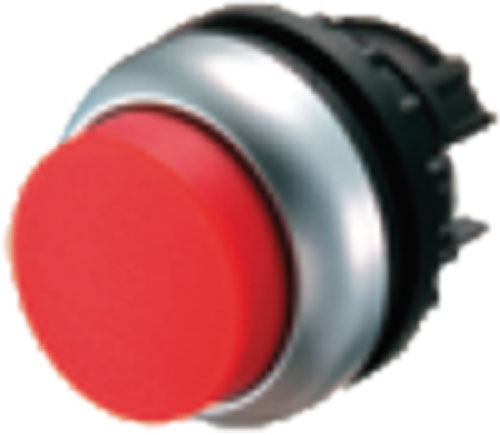

Prominent push-button switches, M22 series

Manufacturer	EATON ELECTRIC
Type of switch	push-button
Button shape	prominent
Mounting hole	Ø22.5mm
Operating temperature	-25...70°C
IP rating	IP67
Dimensions	Fig. 1.
Caution!	Contact sets must be ordered separately.
Switch standard	22mm

Symbol	Positions	Actuator colour	Button marking	Features	Illumination
M22-DH-S	2	black	blank	witout symbol	none
M22-DH-W	2	white	blank	witout symbol	none
M22-DH-R	2	red	blank	witout symbol	none
M22-DH-G	2	green	blank	witout symbol	none
M22-DH-Y	2	yellow	blank	witout symbol	none
M22-DH-B	2	blue	blank	witout symbol	none
M22-DH-R-X0	2	red	O	with symbol	none
M22-DH-G-X1	2	green	I	with symbol	none
M22-DH-S-X0	2	black	O	with symbol	none
M22-DRH-S	2	black	blank	witout symbol	none
M22-DRH-W	2	white	blank	witout symbol	none
M22-DRH-R	2	red	blank	witout symbol	none
M22-DRH-G	2	green	blank	witout symbol	none
M22-DRH-Y	2	yellow	blank	witout symbol	none
M22-DRH-B	2	blue	blank	witout symbol	none
M22-DRH-R-X0	2	red	O	with symbol	none
M22-DRH-G-X1	2	green	I	with symbol	none
M22-DRH-S-X0	2	black	O	with symbol	none
M22-DRH-W-X1	2	white	I	with symbol	none
