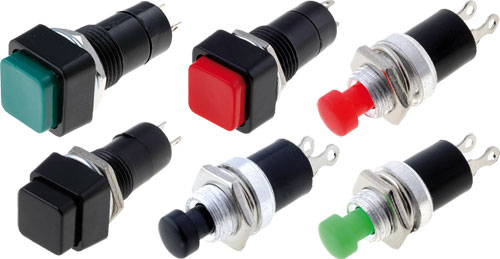

Push-button switches, PS-0 series
| Type of switch | push-button |
| Mounting | on panel |
| AC contacts rating @R* | 3A / 125V AC |
| Max. contact resistance: | 20mΩ |
| Electrical life | 50000 cycles |
| Mechanical durability | 100000 cycles |
| Leads | for soldering |
| Operating temperature | -25...70°C |
| Illumination | none |
| Positions | 2 |
* at resistive load
| Symbol: (PS-03B) | |
|---|---|
| Mounting hole | Ø7mm |
| Button shape | round, prominent |
| Symbol: (PS-03R) | |
| Mounting hole | Ø7mm |
| Button shape | round |
| Symbol: (PS-05/xx, PS-06xxx) | |
| Mounting hole | Ø12mm |
| Button shape | square |
| Symbol | Manufacturer | Contacts layout | Switch. method* | Dimensions | Body colour | Actuator colour |
|---|---|---|---|---|---|---|

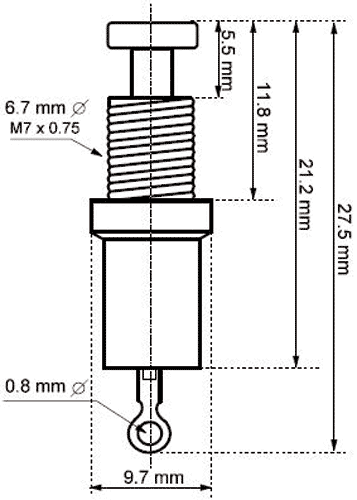

| PS-03B | NINIGI | SPST-NO | OFF-(ON) | Fig. 1. | silver | black |
| PS-03R | SPST-NO | OFF-(ON) | Fig. 1. | silver | red | |
| PS-05/B | SPST-NO | OFF-ON | Fig. 2. | black | black | |
| PS-05/GN | SPST-NO | OFF-ON | Fig. 2. | black | green | |
| PS-05/R | SPST-NO | OFF-ON | Fig. 2. | black | red | |
| PS-06B-MONO | NINIGI | SPST-NO | OFF-(ON) | Fig. 2. | black | black |
| PS-06GN-MONO | NINIGI | SPST-NO | OFF-(ON) | Fig. 2. | black | green |
| PS-06R-MONO | NINIGI | SPST-NO | OFF-(ON) | Fig. 2. | black | red |
| PS-06R-BI | NINIGI | - | OFF-(ON) | - | black | red |
* the position in bracket indicates momentary position.
