Push-button switches, R13-502 series

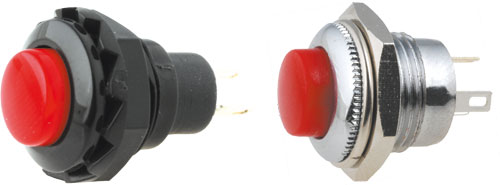

Push-button switches, R13-502 series, PS502A-BR, PS502A-BB, PS502MC-R, PS502MC-B |EN|

Manufacturer	SCI
Type of switch	push-button
Mounting	on panel
AC contacts rating @R*	1.5A / 250V AC
Electrical life	6000 cycles
Max. contact resistance:	50mΩ
Panel thickness	max. 3mm
Mounting hole dimensions	Ø12.7mm
Operating temperature	-25...70°C
Dimensions	Fig. 1.
Button shape	round, prominent
Illumination	none
Positions	2
Leads	for soldering
Manufacturer series	R13-502

* at resistive load

Symbol	Contacts layout	Switch. method*	Actuator colour	Body mat.
PS502A-BR	SPST-NO	OFF-(ON)	red	plastic
PS502A-BB	SPST-NO	OFF-(ON)	black	plastic
PS502MC-R	SPDT	ON-(ON)	red	metal
PS502MC-B	SPDT	ON-(ON)	black	metal

* the position in bracket indicates momentary position.
