Push-button switches, SDT series

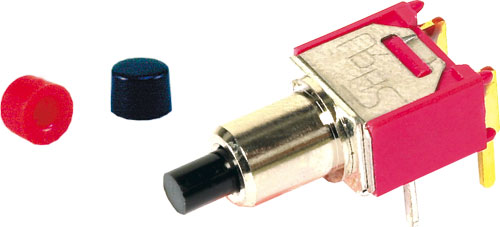

Push-button switches, SDT series, SDT21S, SDT21SP, SDT21LP |EN|

Manufacturer	SALECOM ELECTRONICS
Type of switch	push-button
Mounting	on panel, THT
AC contacts rating @R*	1A / 120V AC
DC contacts rating @R*	1A / 28V DC
Max. contact resistance:	20mΩ
Mechanical durability	60000 cycles
Min. insulation resistance	1000MΩ
Related items	SCV1RT, SCV1SW
Operating temperature	-30...85°C
Button shape	round, prominent
Illumination	none
Contacts layout	SPST-NO
Switch. method**	OFF-(ON)
Actuator colour	black
Positions	2

* at resistive load
** the position in bracket indicates momentary position.

Symbol	Leads	Dimensions
SDT21S	for soldering	Fig. 1.
SDT21SP	for PCB, straight	Fig. 1.
SDT21LP	for PCB, angled	Fig. 2.

Related frames:

Buttons for SDT switch
