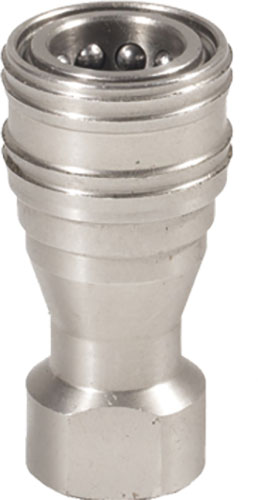

Quick connection coupling; PNEUMAT

Manufacturer	PNEUMAT
Type of hydraulic accessories	quick connection coupling
ISO standard	ISO 7241-1B
Enclosure material	stainless steel
Splice terminal variant	double-sided
Seal material	FKM
Operating temperature	-20...180°C

Symbol	Internal thread	Operating pressure	L	SW dimension
		[bar]	[mm]	[mm]
246.01-ES	G 1/8"	max. 300	48.7	14
246.02-ES	G 1/4"	max. 300	56.3	19
246.03-ES	G 3/8"	max. 280	64	22
246.04-ES	G 1/2"	max. 280	71.5	28
246.05-ES	G 3/4"	max. 250	94	34
246.06-ES	G 1"	max. 230	106	41
