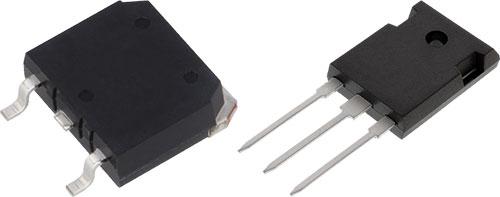

Rectifying diodes from MICROCHIP (MICROSEMI)
| Manufacturer | MICROCHIP TECHNOLOGY |
| Symbol | Type of diode | Structure | Features | If | Ifmax | Ifsm | Urmax | Ufmax | trr | Mounting | Case | Technology | Heatsink thickness | Application | Kind of package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [A] | [A] | [V] | [V] | [ns] | [mm] | ||||||||||
| APT15DQ60SG | rectifying | single diode | fast switching | 15A | - | - | 600 | 2 | 15 | SMD | D3PAK | FRED | - | automotive industry | tube |
| APT30D120SG | rectifying | single diode | fast switching | 30A | - | - | 1.2k | 2 | 31 | SMD | D3PAK | FRED | - | - | tube |
| APT30D20SG | rectifying | single diode | ultrafast switching | 30A | - | - | 200 | 1.1 | 21 | SMD | D3PAK | FRED | - | - | tube |
| APT30D40SG | rectifying | single diode | ultrafast switching | 30A | - | - | 400 | 1.3 | 22 | SMD | D3PAK | FRED | - | - | tube |
| APT30D60SG | rectifying | single diode | fast switching | 30A | - | - | 600 | 1.6 | 23 | SMD | D3PAK | FRED | - | - | tube |
| APT40DQ120SG | rectifying | single diode | - | 40A | - | - | 1.2k | 3.4 | 350 | SMD | D3PAK | FRED | - | automotive industry | tube |
| APT60D100SG | rectifying | single diode | - | 60A | - | - | 1k | 2.5 | - | SMD | D3PAK | FRED | - | - | tube |
| APT60D120SG | rectifying | single diode | - | 60A | - | - | 1.2k | 2.5 | - | SMD | D3PAK | FRED | - | - | tube |
| APT60D40SG | rectifying | single diode | - | 60A | - | - | 400 | 1.5 | 37 | SMD | D3PAK | FRED | - | - | tube |
| APT60D60SG | rectifying | single diode | - | 60A | - | - | 600 | 1.8 | 130 | SMD | D3PAK | FRED | - | - | tube |
| APT60DQ120SG | rectifying | single diode | - | 60A | - | - | 1.2k | 3.3 | - | SMD | D3PAK | FRED | - | automotive industry | tube |
| APT60DQ60SG | rectifying | single diode | - | 60A | - | - | 600 | 2.4 | 35 | SMD | D3PAK | FRED | - | automotive industry | tube |
| APT75DQ120SG | rectifying | single diode | - | 75A | - | - | 1.2k | 3.3 | 325 | SMD | D3PAK | FRED | - | automotive industry | tube |
| APT75DQ60SG | rectifying | single diode | - | 75A | - | - | 600 | 2.5 | 31 | SMD | D3PAK | FRED | - | automotive industry | tube |
| APT100D60B2G | rectifying | single diode | fast switching | 100A | - | 600 | 600 | - | - | THT | T-Max | FRED | - | - | tube |
| APT15D100KG | rectifying | single diode | fast switching | 15A | - | 80 | 1k | 1.9 | 28 | THT | TO220-2 | FRED | 1.14...1.4 | - | tube |
| APT15D120KG | rectifying | single diode | fast switching | 15A | - | 110 | 1.2k | 2 | 32 | THT | TO220-2 | FRED | 1.14...1.4 | - | tube |
| APT15D40KG | rectifying | single diode | ultrafast switching | 15A | - | - | 400 | 1.3 | 19 | THT | TO220-2 | FRED | 1.14...1.4 | - | tube |
| APT15D60KG | rectifying | single diode | fast switching | 15A | - | 110 | 600 | 1.6 | 21 | THT | TO220-2 | FRED | 1.14...1.4 | - | tube |
| APT15DQ100KG | rectifying | single diode | fast switching | 15A | - | 80 | 1k | 2.5 | 20 | THT | TO220-2 | FRED | 1.14...1.4 | automotive industry | tube |
| APT15DQ120KG | rectifying | single diode | fast switching | 15A | - | 110 | 1.2k | 2.8 | 21 | THT | TO220-2 | FRED | 1.14...1.4 | automotive industry | tube |
| APT15DQ60KG | rectifying | single diode | fast switching | 15A | - | 110 | 600 | 2 | 15 | THT | TO220-2 | FRED | 1.14...1.4 | automotive industry | tube |
| APT30DQ100KG | rectifying | single diode | fast switching | 30A | - | 150 | 1k | - | - | THT | TO220-2 | FRED | 1.14...1.4 | automotive industry | tube |
| APT30DQ120KG | rectifying | single diode | fast switching | 30A | - | 210 | 1.2k | - | - | THT | TO220-2 | FRED | 1.14...1.4 | automotive industry | tube |
| APT30DQ60KG | rectifying | single diode | fast switching | 30A | - | - | 600 | - | 30 | THT | TO220-2 | FRED | 1.14...1.4 | automotive industry | tube |
| APT100D60BG | rectifying | single diode | ultrafast switching | 100A | 180 | 1k | 600 | 2 | 92 | THT | TO247-2 | FRED | - | - | tube |
| APT15DQ100BG | rectifying | single diode | fast switching | 15A | - | 80 | 1k | 2.5 | 20 | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT15DQ120BG | rectifying | single diode | fast switching | 15A | - | 110 | 1.2k | 2.8 | 21 | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT15DQ60BG | rectifying | single diode | fast switching | 15A | - | 110 | 600 | 2 | 15 | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT15DS60BG | rectifying | single diode | ultrafast switching | 15A | - | - | 600 | 3.2 | 13 | THT | TO247-2 | FRED | - | - | tube |
| APT30D30BG | rectifying | single diode | ultrafast switching | 30A | - | 320 | 300 | 1.2 | 20 | THT | TO247-2 | FRED | - | - | tube |
| APT30DQ100BG | rectifying | single diode | fast switching | 30A | - | 150 | 1k | - | - | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT30DQ120BG | rectifying | single diode | fast switching | 30A | - | 210 | 1.2k | - | - | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT30DQ60BG | rectifying | single diode | fast switching | 30A | - | 320 | 600 | - | - | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT30DS60BG | rectifying | single diode | - | 30A | - | - | 600 | - | 24 | THT | TO247-2 | FRED | - | - | tube |
| APT40DQ100BG | rectifying | single diode | - | 40A | - | 210 | 1k | - | - | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT40DQ120BG | rectifying | single diode | - | 40A | - | 210 | 1.2k | - | - | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT40DQ60BG | rectifying | single diode | - | 40A | - | 320 | 600 | - | - | THT | TO247-2 | FRED | - | automotive industry | tube |
| APT15D100BCTG | rectifying | double, common cathode | fast switching | 15A | - | - | 1k | 1.9 | 28 | THT | TO247-3 | FRED | - | - | tube |
| APT15D40BCTG | rectifying | double, common cathode | ultrafast switching | 15A | - | 110 | 400 | 1.3 | 19 | THT | TO247-3 | FRED | - | - | tube |
| APT15D60BCTG | rectifying | double, common cathode | fast switching | 15A | - | 110 | 600 | 1.6 | 21 | THT | TO247-3 | FRED | - | - | tube |
| APT15DQ120BHBG | rectifying | double series | fast switching | 15A | - | 110 | 1.2k | 3 | 21 | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT15DQ60BCTG | rectifying | double, common cathode | fast switching | 15A | - | 110 | 600 | 2 | 15 | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT30D100BCTG | rectifying | double, common cathode | fast switching | 30A | - | 210 | 1k | 1.9 | 29 | THT | TO247-3 | FRED | - | - | tube |
| APT30D100BHBG | rectifying | double series | fast switching | 30A | - | 210 | 1k | 1.9 | 29 | THT | TO247-3 | FRED | - | - | tube |
| APT30D120BCTG | rectifying | double, common cathode | fast switching | 30A | - | 210 | 1.2k | 2 | 31 | THT | TO247-3 | FRED | - | - | tube |
| APT30D20BCAG | rectifying | double, common anode | ultrafast switching | 30A | - | 320 | 200 | 1.1 | 21 | THT | TO247-3 | FRED | - | - | tube |
| APT30D20BCTG | rectifying | double, common cathode | ultrafast switching | 30A | - | 320 | 200 | 1.1 | 21 | THT | TO247-3 | FRED | - | - | tube |
| APT30D30BCTG | rectifying | double, common cathode | ultrafast switching | 30A | - | - | 300 | 1.2 | 20 | THT | TO247-3 | FRED | - | - | tube |
| APT30D60BCAG | rectifying | double, common anode | fast switching | 30A | - | 320 | 600 | 1.6 | 23 | THT | TO247-3 | FRED | - | - | tube |
| APT30D60BCTG | rectifying | double, common cathode | fast switching | 30A | - | 320 | 600 | 1.6 | 23 | THT | TO247-3 | FRED | - | - | tube |
| APT30DQ120BCTG | rectifying | double, common cathode | fast switching | 30A | - | 210 | 1.2k | - | - | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT30DQ60BCTG | rectifying | double, common cathode | fast switching | 30A | - | 320 | 600 | - | 30 | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT30DQ60BHBG | rectifying | double series | fast switching | 30A | - | - | 600 | - | - | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT40DQ100BCTG | rectifying | double, common cathode | - | 40A | - | - | 1k | - | 250 | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT40DQ60BCTG | rectifying | double, common cathode | - | 40A | - | 320 | 600 | - | 25 | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT60DQ60BCTG | rectifying | double, common cathode | - | 60A | - | 600 | 600 | - | - | THT | TO247-3 | FRED | - | automotive industry | tube |
| APT15D100BG | rectifying | single diode | fast switching | 15A | - | - | 1k | 1.9 | 28 | THT | TO247AC | FRED | - | - | tube |
| APT15D120BG | rectifying | single diode | fast switching | 15A | - | 110 | 1.2k | 2 | 32 | THT | TO247AC | FRED | - | - | tube |
| APT15D60BG | rectifying | single diode | ultrafast switching | 15A | 32 | 110 | 600 | 1.6 | 80 | THT | TO247AC | FRED | - | - | tube |
| APT15DQ100BCTG | rectifying | double, common cathode | ultrafast switching | 15A x2 | 29 | 80 | 1k | 2.5 | 235 | THT | TO247AC | FRED | - | - | tube |
| APT30D100BG | rectifying | single diode | ultrafast switching | 30A | 60 | 210 | 1k | 1.9 | 290 | THT | TO247AC | FRED | - | - | tube |
| APT30D120BG | rectifying | single diode | ultrafast switching | 30A | 59 | 210 | 1.2k | 2 | 370 | THT | TO247AC | FRED | - | - | tube |
| APT30D20BG | rectifying | single diode | ultrafast switching | 30A | 80 | 320 | 200 | 1.1 | 24 | THT | TO247AC | FRED | - | - | tube |
| APT30D40BCTG | rectifying | double, common cathode | ultrafast switching | 30A x2 | 73 | 320 | 400 | 1.3 | 32 | THT | TO247AC | FRED | - | - | tube |
| APT30D40BG | rectifying | single diode | ultrafast switching | 30A | 73 | 320 | 400 | 1.3 | 32 | THT | TO247AC | FRED | - | - | tube |
| APT30D60BG | rectifying | single diode | ultrafast switching | 30A | 72 | 320 | 600 | 1.6 | 85 | THT | TO247AC | FRED | - | - | tube |
| APT30D60BHBG | rectifying | double series | ultrafast switching | 27A x2 | 42 | 320 | 600 | 1.6 | 85 | THT | TO247AC | FRED | - | - | tube |
| APT60D100BG | rectifying | single diode | ultrafast switching | 60A | 152 | 540 | 1k | 1.9 | 280 | THT | TO247AC | FRED | - | - | tube |
| APT60D120BG | rectifying | single diode | ultrafast switching | 60A | - | 540 | 1.2k | - | 400 | THT | TO247AC | FRED | - | - | tube |
| APT60D20BG | rectifying | single diode | ultrafast switching | 60A | 156 | 600 | 200 | 1.1 | 31 | THT | TO247AC | FRED | - | - | tube |
| APT60D40BG | rectifying | single diode | ultrafast switching | 60A | 146 | 600 | 400 | 1.3 | 37 | THT | TO247AC | FRED | - | - | tube |
| APT60D60BG | rectifying | single diode | ultrafast switching | 60A | 132 | 600 | 600 | 1.6 | 130 | THT | TO247AC | FRED | - | - | tube |
| APT60DQ100BG | rectifying | single diode | ultrafast switching | 60A | - | 540 | 1k | - | - | THT | TO247AC | FRED | - | automotive industry | tube |
| APT60DQ120BG | rectifying | single diode | ultrafast switching | 60A | - | 540 | 1.2k | - | - | THT | TO247AC | FRED | - | automotive industry | tube |
| APT60DQ60BG | rectifying | single diode | ultrafast switching | 60A | 94 | 600 | 600 | 2 | 35 | THT | TO247AC | FRED | - | - | tube |
| APT75DQ100BG | rectifying | single diode | ultrafast switching | 75A | - | - | 1k | - | 250 | THT | TO247AC | FRED | - | automotive industry | tube |
| APT75DQ120BG | rectifying | single diode | ultrafast switching | 75A | 121 | 540 | 1.2k | 2.8 | 325 | THT | TO247AC | FRED | - | - | tube |
| APT75DQ60BG | rectifying | single diode | ultrafast switching | 75A | - | 600 | 600 | - | - | THT | TO247AC | FRED | - | automotive industry | tube |
| APT60D100LCTG | rectifying | double, common cathode | ultrafast switching | 60A | 152 | 540 | 1k | 2.5 | 34 | THT | TO264 | FRED | - | - | tube |
| APT60D40LCTG | rectifying | double, common cathode | ultrafast switching | 60A | 146 | 600 | 400 | 1.6 | 30 | THT | TO264 | FRED | - | - | tube |
| APT60D60LCTG | rectifying | double, common cathode | ultrafast switching | 60A | 132 | 600 | 600 | 1.9 | 40 | THT | TO264 | FRED | - | - | tube |
| APT60DQ100LCTG | rectifying | double, common cathode | ultrafast switching | 60A | 1 | 540 | 1k | 3 | 29 | THT | TO264 | FRED | - | automotive industry | tube |
