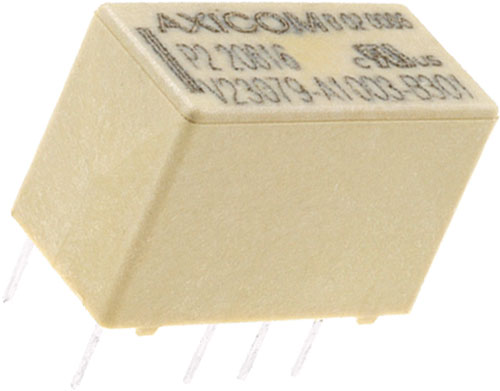

Relay: electromagnetic; DPDT; TE Connectivity

* at resistive load

Symbol	Variant	U_coil	U_coil min	U_coil max	R_coil	P_coil	Mounting	Dimensions
		[V DC]	[V DC]	[V DC]	[Ω]	[mW]
V23079A1001B301	miniature	5	3.75	10.9	178	140	THT	Fig. 1-1.
V23079A1003B301	miniature	12	9	26.15	1029	140	THT	Fig. 1-1.
V23079A1005B301	miniature	24	18	52.3	4114	140	THT	Fig. 1-1.
V23079A2001B301	miniature	5	3.75	10.9	178	140	THT	Fig. 1-1.
V23079A2003B301	miniature	12	9	26.15	1029	140	THT	Fig. 1-1.
V23079B1201B301	bistable, miniature	5	3.75	10.9	178	140	THT	Fig. 1-1.
V23079B1203B301	bistable, miniature	12	9	26.15	1029	140	THT	Fig. 1-1.
V23079B1205B301	bistable, miniature	24	18	52.3	4114	140	THT	Fig. 1-1.
V23079D1001B301	miniature, monostable	5	3.75	10.9	178	140	SMT	Fig. 1-2.
V23079D1003B301	miniature, monostable	12	9	26.15	1029	140	SMT	Fig. 1-2.
V23079D1005B301	miniature, monostable	24	18	52.3	4114	140	SMT	Fig. 1-2.
V23079D2001B301	miniature, monostable	5	3.75	10.9	178	140	SMT	Fig. 1-2.
V23079D2008B301	miniature, monostable	3	2.25	6.1	45	200	SMT	Fig. 1-2.
V23079D2003B301	miniature, monostable	12	9	24.2	720	200	SMT	Fig. 1-2.
V23079E1203B301	bistable, miniature	12	9	26.15	1029	140	SMT	Fig. 1-2.
V23079F1101B301	bistable, miniature	5	3.75	15.33	357	70	SMT	Fig. 1-2.
V23079G2001B301	miniature, monostable	5	3.75	10.9	178	140	SMT	Fig. 1-3.

Output configuration:

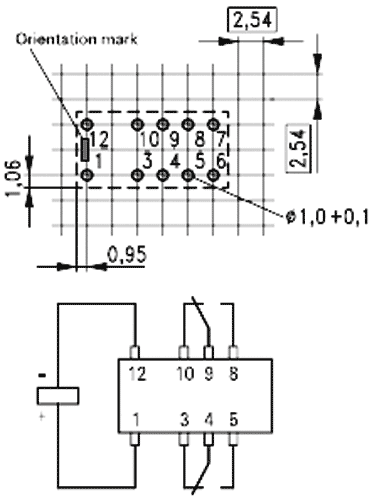

Fig. 2-1. (V23079AxxxB301)

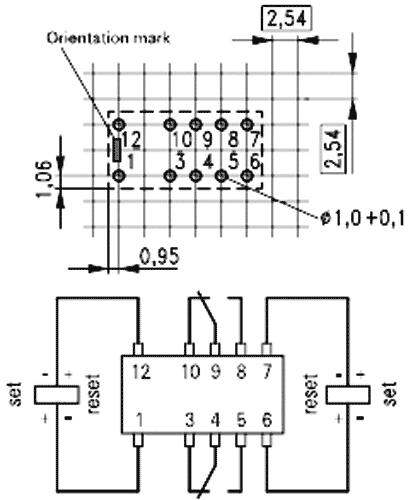

Fig. 2-2. (V23079B120xB301)

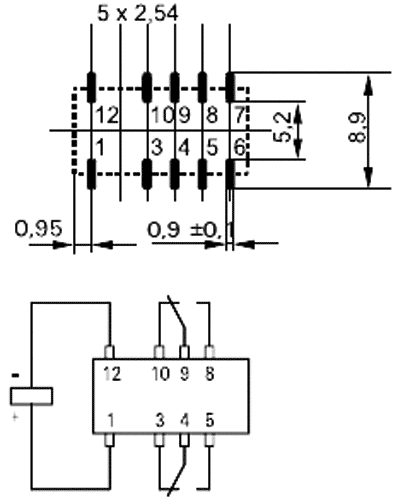

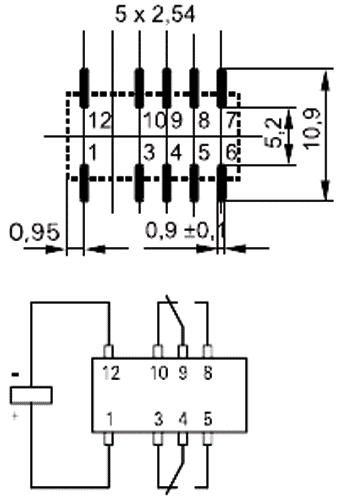

Fig. 2-3. (V23079DxxxB301)

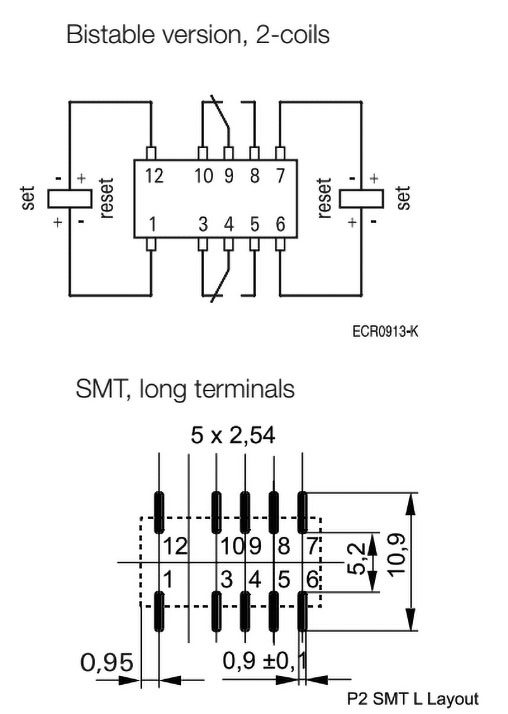

Fig. 2-4. (V23079E1203B301)

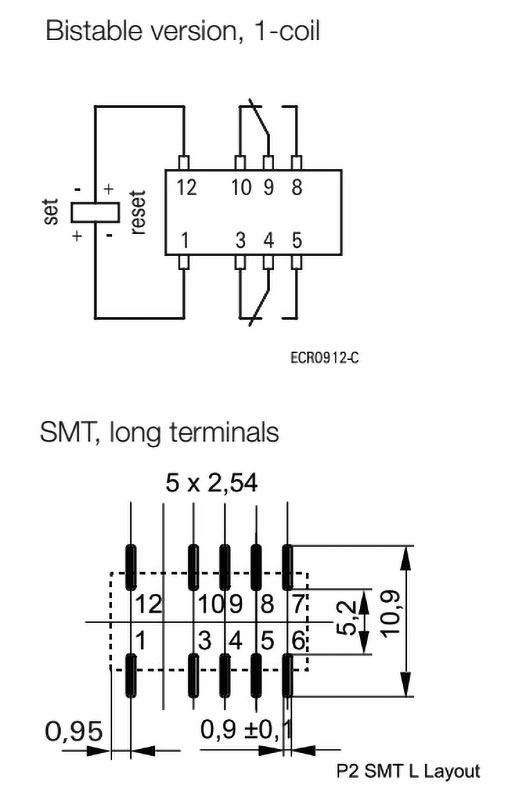

Fig. 2-5. (V23079F1101B301)
Fig. 2-6. (V23079G2001B301)

Design:
