Relay: electromagnetic; HONGFA RELAY

Relay: electromagnetic; HONGFA RELAY, HF3FA/005-ZT, HF3FA/012-ZT, HF3FA/024-ZTF, HF3FD/006-ZSTF |EN|
ManufacturerHONGFA RELAY
Type of relayelectromagnetic
MountingPCB
Contact resistance100mΩ
Switched voltagemax. 277V AC
Contact materialAgSnO2
Release time5ms
Symbol Pcoil DC load rating @R* Operate time Variant Switched voltage Body dimensions Operating temperature Contacts configuration Ucoil Ucoil min Ucoil max Rcoil Contact current max. AC load rating @R* Dimensions Output configuration Term. pitch Design
[mW] [ms] [V DC] [mm] [°C] [V DC] [V DC] [V DC] [Ω] [A] [mm]

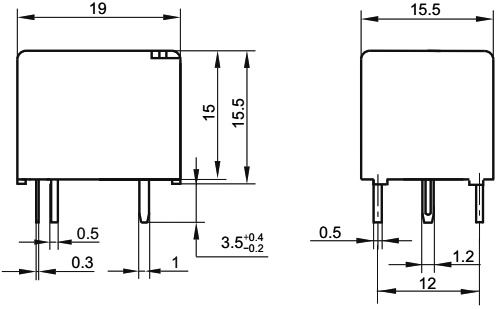

HF3FA/005-ZT 360 10A / 28V DC 10 subminiature max. 28 19x15.5x15.5 -40...85 SPDT 5 3.75 6.5 70 10 10A / 277V AC Fig. 1-1. Fig. 2-1. - -
HF3FA/012-ZT 360 10A / 28V DC 10 subminiature max. 28 19x15.5x15.5 -40...85 SPDT 12 9 15.6 400 10 10A / 277V AC Fig. 1-1. Fig. 2-1. - -
HF3FA/024-ZTF 360 10A / 28V DC 10 subminiature max. 28 19x15.5x15.5 -40...85 SPDT 24 18 31.2 1.6k 10 10A / 277V AC Fig. 1-1. Fig. 2-1. - -
HF3FD/006-ZSTF 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPDT 6 4.5 7.8 100 10 10A / 250V AC Fig. 1-2. Fig. 2-2. - -
HF3FD/012-HST 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPST-NO 12 9 15.6 400 15 10A / 250V AC Fig. 1-3. Fig. 2-3. - -
HF3FD/012-HTF 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPST-NO 12 9 15.6 400 15 10A / 250V AC Fig. 1-3. Fig. 2-3. - -
HF3FA/012-HSTF 360 10A / 28V DC 10 subminiature max. 28 19x15.5x15.5 -40...85 SPST-NO 12 9 15.6 400 15 10A / 277V AC Fig. 1-4. Fig. 2-4. - -
HF3FD/012-ZST 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPDT 12 9 15.6 400 10 10A / 250V AC Fig. 1-2. Fig. 2-2. - -
HF3FD/012-ZSTF 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPDT 12 9 15.6 400 10 10A / 250V AC Fig. 1-2. Fig. 2-2. - -
HF3FD/012-ZTF 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPDT 12 9 15.6 400 10 10A / 250V AC Fig. 1-2. Fig. 2-2. - -
HF3FD/024-ZST 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPDT 24 18 31.2 1.6k 10 10A / 250V AC Fig. 1-2. Fig. 2-2. - -
HF3FD/024-ZSTF 360 10A / 28V DC 10 subminiature max. 30 19x15.5x15.2 -40...105 SPDT 24 18 31.2 1.6k 10 10A / 250V AC Fig. 1-2. Fig. 2-2. - -
HF3FF/005-1HST 360 10A / 28V DC 10 miniature max. 28 19x15.5x15.2 -40...70 SPST-NO 5 3.8 6.5 70 10 10A / 277V AC Fig. 1-5. Fig. 2-5. 2 -
HF3FF/005-1ZST 360 10A / 28V DC 10 miniature max. 28 19x15.5x15.2 -40...70 SPDT 5 3.8 6.5 70 10 10A / 277V AC Fig. 1-6. Fig. 2-6. 2 -
HF3FF/012-1HT 360 10A / 28V DC 10 miniature max. 28 19x15.5x15.2 -40...70 SPST-NO 12 9 15.6 400 15 10A / 277V AC Fig. 1-5. Fig. 2-5. 2 -
HF3FF/012-1ZST 360 10A / 28V DC 10 miniature max. 28 19x15.5x15.2 -40...70 SPDT 12 9 15.6 400 10 10A / 277V AC Fig. 1-6. Fig. 2-6. 2 -
HF3FF/024-1HST 360 10A / 28V DC 10 miniature max. 28 19x15.5x15.2 -40...70 SPST-NO 24 18 31.2 1.6k 15 10A / 277V AC Fig. 1-5. Fig. 2-5. 2 -
HF3FF/024-1ZST 360 10A / 28V DC 10 miniature max. 28 19x15.5x15.2 -40...70 SPDT 24 18 31.2 1.6k 10 10A / 277V AC Fig. 1-6. Fig. 2-6. 2 -
HF3FF/024-1ZT 360 10A / 28V DC 10 miniature max. 28 19x15.5x15.2 -40...70 SPDT 24 18 31.2 1.6k 10 10A / 277V AC Fig. 1-6. Fig. 2-6. 2 -
HF3F-L/12-1HL1T 400 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPST-NO 12 9.6 24 360 15 10A / 277V AC Fig. 1-7. Fig. 2-7. - single coil
HF3F-L/12-1HL2T 800 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPST-NO 12 9.6 24 360 15 10A / 277V AC Fig. 1-7. Fig. 2-8. - two coils
HF3F-L/24-1HL1T 400 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPST-NO 24 19.2 48 1.44k 15 10A / 277V AC Fig. 1-7. Fig. 2-7. - single coil
HF3F-L/24-1HL2T 800 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPST-NO 24 19.2 48 1.44k 15 10A / 277V AC Fig. 1-7. Fig. 2-8. - two coils
HF3F-L/24-1ZL2T 800 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPDT 24 19.2 48 1.44k 10 10A / 277V AC Fig. 1-7. Fig. 2-9. - two coils
HF3F-L/48-1HL1T 400 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPST-NO 48 38.4 96 5.76k 15 10A / 277V AC Fig. 1-7. Fig. 2-7. - single coil
HF3F-L/48-1HL2T 800 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPST-NO 48 38.4 96 5.76k 15 10A / 277V AC Fig. 1-7. Fig. 2-8. - two coils
HF3F-L/48-1ZL1T 400 10A / 30V DC 8 bistable, subminiature max. 30 19x15.5x15.2 -40...85 SPDT 48 38.4 96 5.76k 10 10A / 277V AC Fig. 1-7. Fig. 2-10. - single coil
* at resistive load
