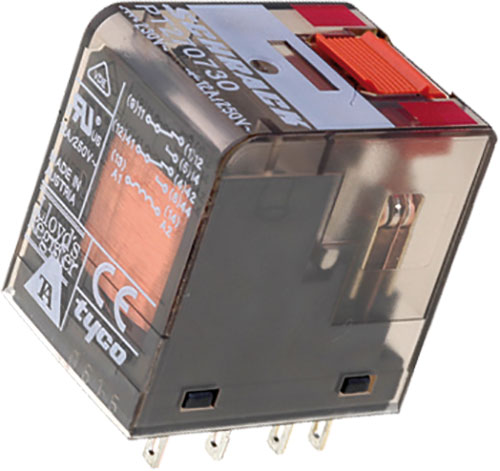

Relay: electromagnetic; industrial; TE Connectivity


Mechanical contact position indicator and manual test button
Relay: electromagnetic; industrial; TE Connectivity, PT270012, PT270024, PT270R24, PT270524 |EN|
ManufacturerTE Connectivity
Type of relayelectromagnetic
Variantindustrial
Body dimensions28x22.5x30mm
Operating temperature-40...70°C
Manufacturer seriesPT
Symbol Contacts layout Ucoil Rcoil Pcoil Pcoil Icontacts max AC load rating @R* DC load rating @R* Leads
[Ω] [W] [VA] [A]
PT270024 DPDT 24V DC 777 0.75 - 12 12A / 250V AC 12A / 30V DC -
PT270R24 DPDT 24V AC 192 - 1 12 12A / 250V AC 12A / 30V DC -
PT270524 DPDT 24V AC 192 - 1 12 12A / 250V AC 12A / 30V DC -
PT270730 DPDT 230V AC 19465 - 1 12 12A / 250V AC 12A / 30V DC -
PT271024 DPDT 24V DC 777 0.75 - 12 12A / 250V AC 12A / 30V DC for PCB
PT271730 DPDT 230V AC 19465 - 1 12 12A / 250V AC 12A / 30V DC for PCB
PT280024 DPDT 24V DC 777 0.75 - 12 12A / 250V AC 12A / 30V DC -
PT370524 3PDT 24V AC 192 - 1 10 10A / 250V AC 10A / 30V DC -
PT370730 3PDT 230V AC 19465 - 1 10 10A / 250V AC 10A / 30V DC -
PT570012 4PDT 12V DC 192 0.75 - 6 6A / 250V AC 6A / 30V DC -
PT570024 4PDT 24V DC 777 0.75 - 6 6A / 250V AC 6A / 30V DC -
PT570512 4PDT 12V AC 48 - 1 6 6A / 250V AC 6A / 30V DC -
PT570524 4PDT 24V AC 192 - 1 6 6A / 250V AC 6A / 30V DC -
PT570R24 4PDT 24V AC 192 - 1 6 6A / 250V AC 6A / 30V DC -
PT570548 4PDT 48V AC 777 - 1 6 6A / 250V AC 6A / 30V DC -
PT570730 4PDT 230V AC 19465 - 1 6 6A / 250V AC 6A / 30V DC -
PT570615 4PDT 115V AC 4845 - 1 6 6A / 250V AC 6A / 30V DC -
PT570S15 4PDT 115V AC 4845 - 1 6 6A / 250V AC 6A / 30V DC -
PT571024 4PDT 24V DC 777 0.75 - 6 6A / 250V AC 6A / 30V DC for PCB
PT570T30 4PDT 230V AC 19465 - 1 6 6A / 250V AC 6A / 30V DC -
PT580730 4PDT 230V AC 19465 - 1 6 6A / 250V AC 6A / 30V DC -
PT581024 4PDT 24V DC 777 0.75 - 6 6A / 250V AC 6A / 30V DC for PCB
PT581730 4PDT 230V AC 19465 - 1 6 6A / 250V AC 6A / 30V DC for PCB
PT570048 4PDT 48V DC 3072 0.75 - 6 6A / 250V AC 6A / 30V DC -
PT571048 4PDT 48V DC 3072 0.75 - 6 6A / 250V AC 6A / 30V DC for PCB
PT570110 4PDT 110V DC 16133 0.75 - 6 6A / 250V AC 6A / 30V DC -
PT570220 4PDT 220V DC 64533 0.75 - 6 6A / 250V AC 6A / 30V DC -
PT570L24 4PDT 24V DC 777 0.74 - 6 6A / 250V AC 6A / 30V DC -
PT570LC4 4PDT 24V DC 777 0.74 - 6 6A / 250V AC 6A / 30V DC -
* at resistive load
Symbol Output configuration Dimensions
PT270024 Fig. 1-1. Fig. 2-1.
PT270R24 Fig. 1-1. Fig. 2-1.
PT270524 Fig. 1-1. Fig. 2-1.
PT270730 Fig. 1-1. Fig. 2-1.
PT271024 Fig. 1-1. Fig. 2-2.
PT271730 Fig. 1-1. Fig. 2-2.
PT280024 Fig. 1-1. Fig. 2-1.

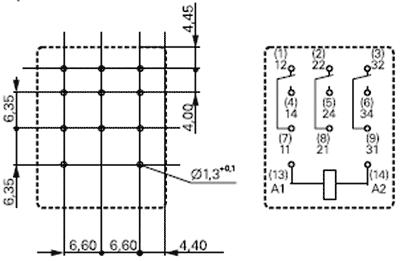

PT370524 Fig. 1-2. Fig. 2-1.
PT370730 Fig. 1-2. Fig. 2-1.
PT570012 Fig. 1-3. Fig. 2-1.
PT570024 Fig. 1-3. Fig. 2-1.
PT570512 Fig. 1-3. Fig. 2-2.
PT570524 Fig. 1-3. Fig. 2-1.
PT570R24 Fig. 1-3. Fig. 2-1.
PT570548 Fig. 1-3. Fig. 2-1.
PT570730 Fig. 1-3. Fig. 2-1.
PT570615 Fig. 1-3. Fig. 2-1.
PT570S15 Fig. 1-3. Fig. 2-1.
PT571024 Fig. 1-3. Fig. 2-2.
PT570T30 Fig. 1-3. Fig. 2-1.
PT580730 Fig. 1-3. Fig. 2-1.
PT581024 Fig. 1-3. Fig. 2-2.
PT581730 Fig. 1-3. Fig. 2-2.
PT570048 Fig. 1-3. Fig. 2-2.
PT571048 Fig. 1-3. Fig. 2-2.
PT570110 Fig. 1-3. Fig. 2-2.
PT570220 Fig. 1-3. Fig. 2-2.
PT570L24 Fig. 1-3. Fig. 2-2.
PT570LC4 Fig. 1-3. Fig. 2-2.
Optional equipment:
Mounting:
Uswitch.:
Uswitch.:
  • max. 300V DC
Contact material:
