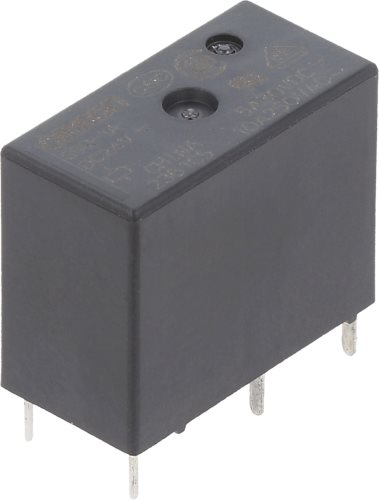

Relay: electromagnetic; miniature; OMRON Electronic Components, G5Q-1-12DC, G5Q-14-5DC |EN|

Manufacturer	OMRON Electronic Components
Type of relay	electromagnetic
Variant	miniature
Switched voltage	max. 30V DC
Switched voltage	max. 277V AC
Contact resistance	100mΩ
Mounting	PCB
Operating temperature	-40...85°C
Body dimensions	20.3x10.3x15.8mm
Manufacturer series	G5Q

Symbol	Contacts layout	U_coil	Contact current max.	R_coil	AC load rating @R*	DC load rating @R*	Term. pitch	Dimensions	Output configuration	I_coil
		[V DC]	[A]	[Ω]			[mm]			[mA]

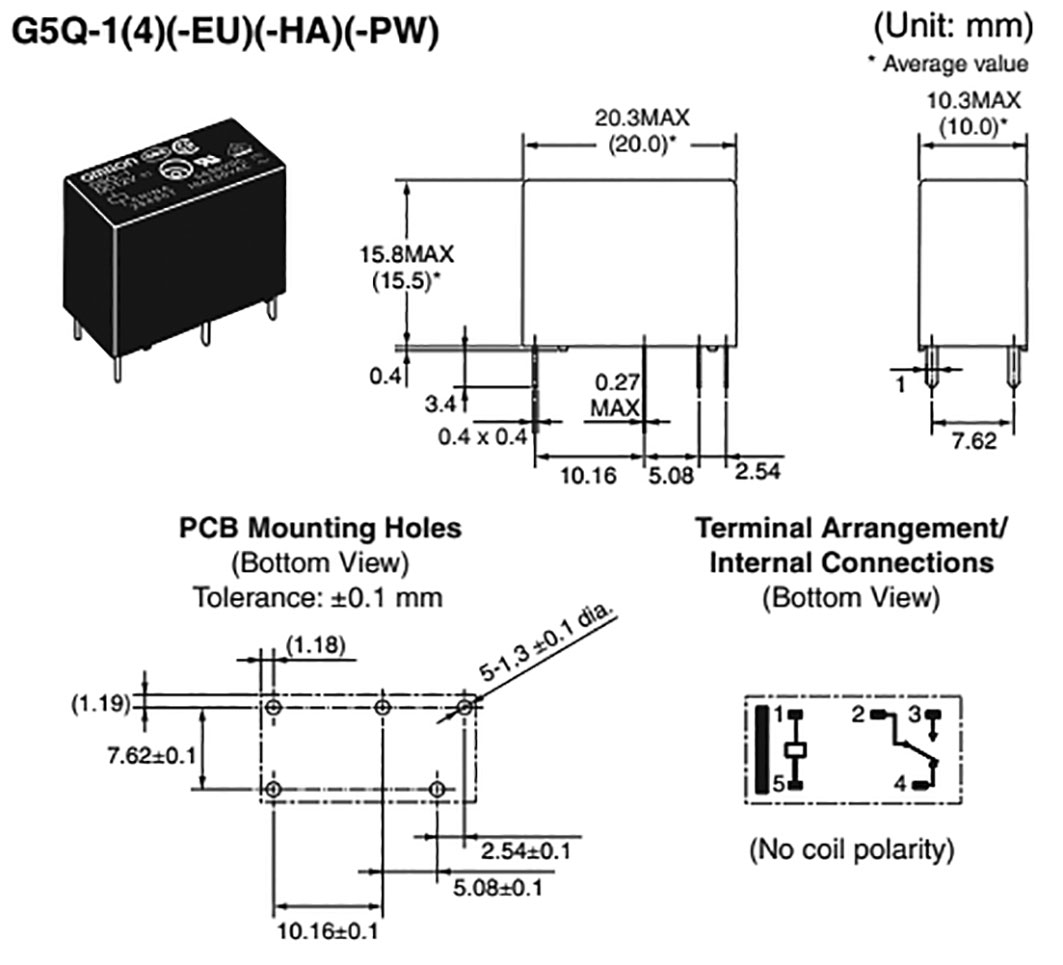

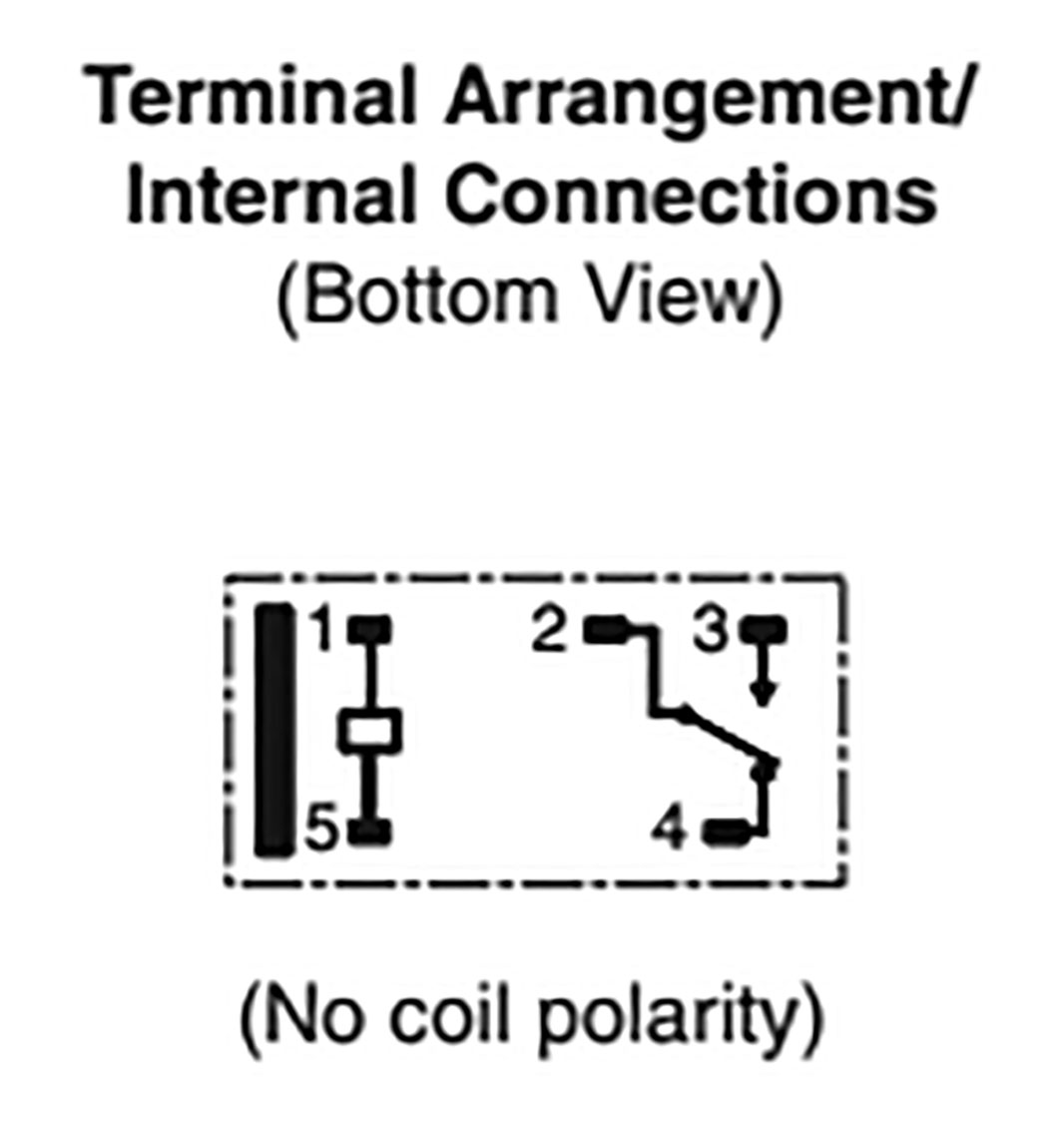

G5Q-1-12DC	SPDT	12	10	360	3A / 250V AC	3A / 30V DC	2.54	Fig. 1-1.	Fig. 2-1.	-
G5Q-14-5DC	SPDT	5	10	63	3A / 250V AC	3A / 30V DC	2.54	Fig. 1-1.	Fig. 2-1.	80
G5Q-14-12DC	SPDT	12	10	360	3A / 250V AC	3A / 30V DC	2.54	Fig. 1-1.	Fig. 2-1.	33.3

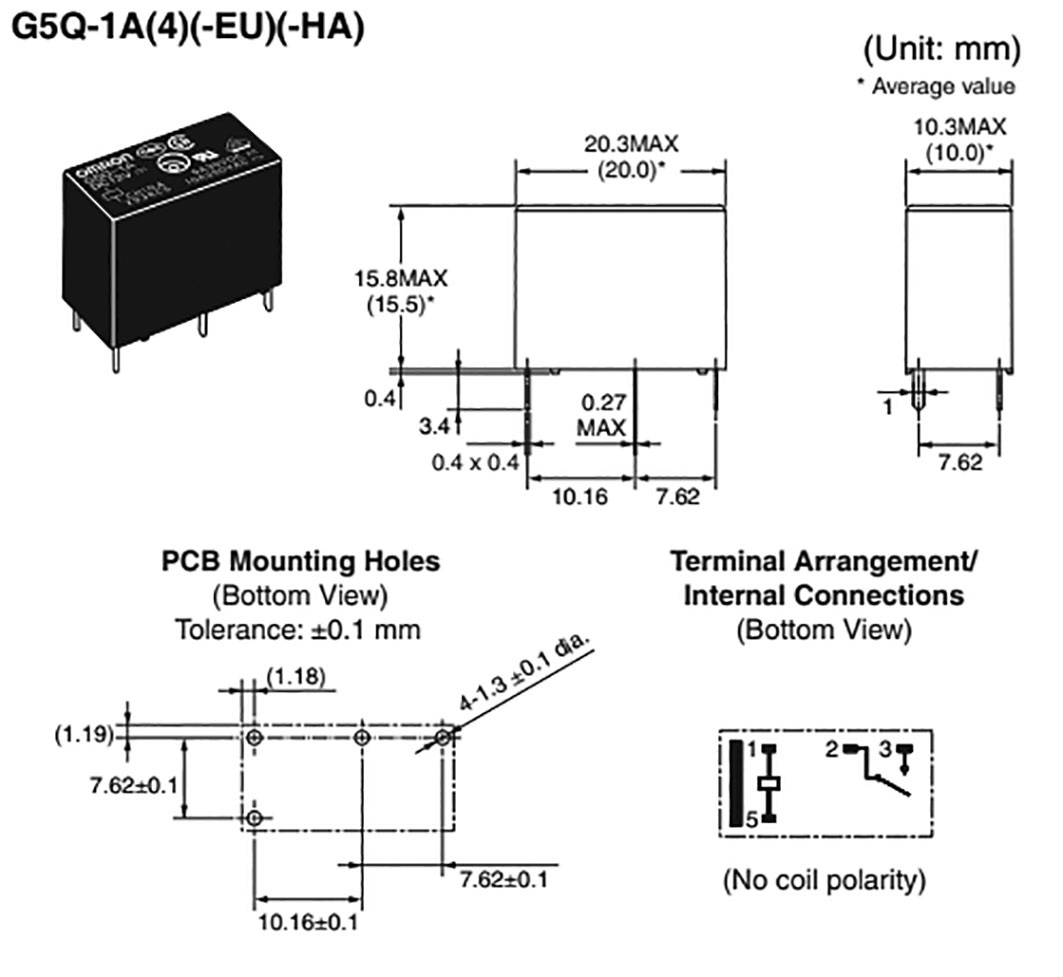

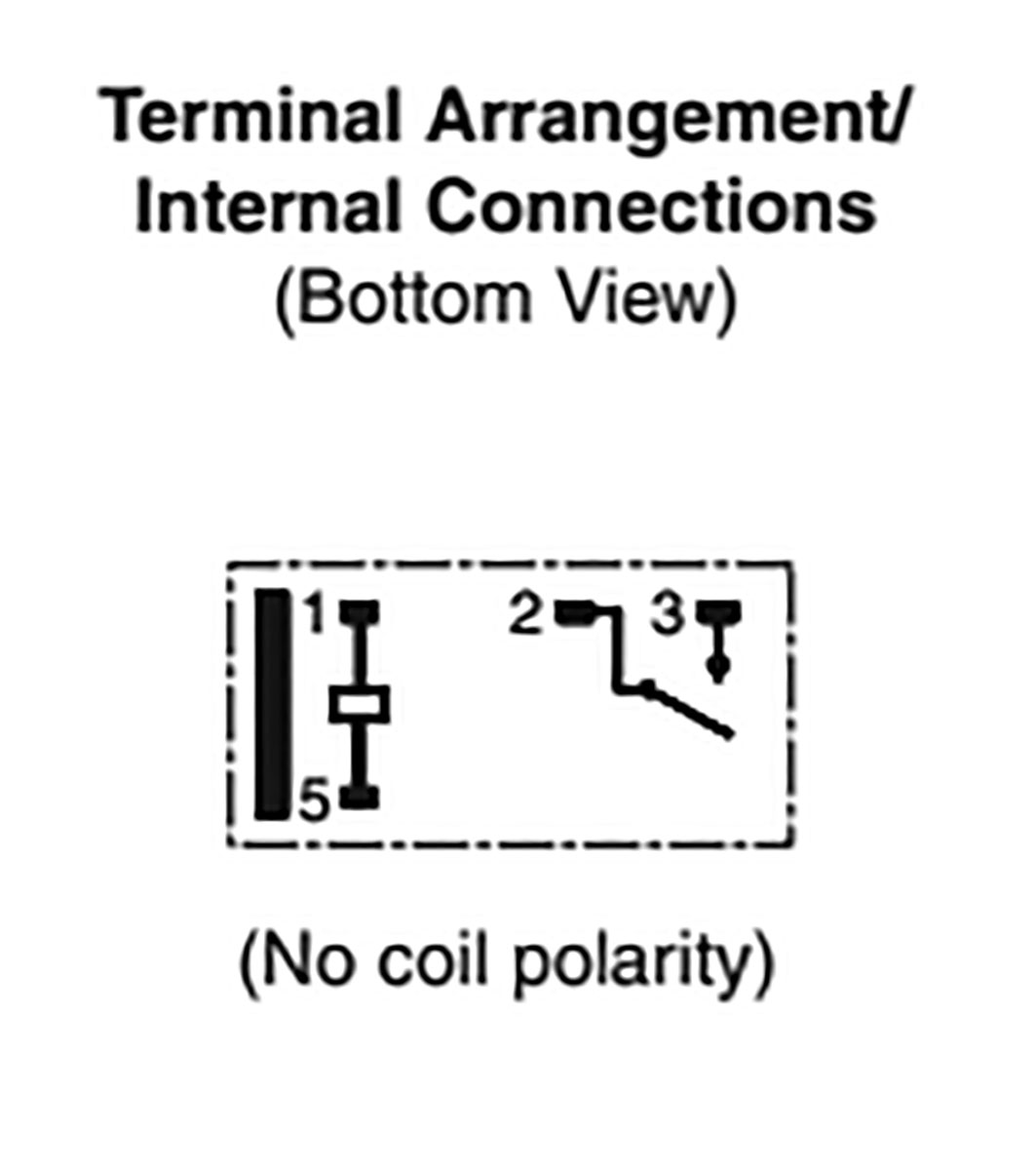

G5Q-1A-24DC	SPST-NO	24	5	1.44k	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	8.3
G5Q-1A4-5DC	SPST-NO	5	5	125	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	40
G5Q-1A4-12DC	SPST-NO	12	5	720	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	16.7
G5Q-1A4-24DC	SPST-NO	24	5	2.88k	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	8.3
G5Q1A4EL2HA12DC	SPST-NO	12	5	720	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	16.7
G5Q1A4EL3HA12DC	SPST-NO	12	5	720	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	16.7
G5Q1A4EL3HA24DC	SPST-NO	24	5	2.88k	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	8.3
G5Q1A4EL3HA5DC	SPST-NO	5	5	125	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	40
G5Q-1A-EL2-HA-12DC	SPST-NO	12	5	720	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	16.7
G5Q-1A-EL2-HA-24DC	SPST-NO	24	5	2.88k	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	8.3
G5Q1AELHAVH24DC	SPST-NO	24	5	2.88k	5A / 250V AC	5A / 30V DC	7.62	Fig. 1-2.	Fig. 2-2.	8.3

* at resistive load
