Relay: electromagnetic; miniature; OMRON

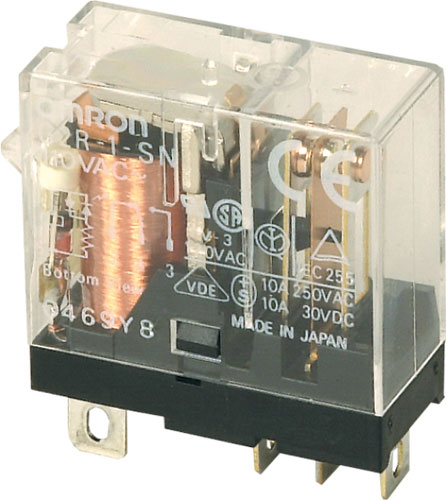

Relay: electromagnetic; miniature; OMRON, G2R-1-S-12DC, G2R-1-S-24AC, G2R-1-S-24DC |EN|
ManufacturerOMRON
Type of relayelectromagnetic
Variantminiature, industrial
Mountingsocket
Switched voltagemax. 380V AC
Switched voltagemax. 125V DC
Contact resistance30mΩ
Operate time15ms
Body dimensions29x13x35.5mm
Operating temperature-40...70°C
Symbol Contacts layout Coil voltage Coil res. Icoil Pcoil Pcoil toff Pswitch. Pswitch. Icontacts max AC load rating @R* DC load rating @R* Indication Optional equipment
[Ω] [mA] [mW] [mVA] [ms] [VA] [W] [A]
G2R-1-S-12DC SPDT 12V DC 275 43.6 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC - -
G2R-1-S-24AC SPDT 24V AC 260 46.5 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC - -
G2R-1-S-24DC SPDT 24V DC 1.1k 21.8 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC - -
G2R-1-S-48DC SPDT 48V DC 4.17k 11.5 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC - -
G2R-1-S-120AC SPDT 120V AC 7286 8.6 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC - -
G2R-1-S-230AC SPDT 230V AC 22k 4.7 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC - -
G2R-1-S-240AC SPDT 240V AC 30k 4.7 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC - -
G2R-1-SD-12DC SPDT 12V DC 275 43.6 530 - 20 2500 300 10 10A / 250V AC 10A / 30V DC - overvoltage damping diode
G2R-1-SD-24DC SPDT 24V DC 1.1k 21.8 530 - 20 2500 300 10 10A / 250V AC 10A / 30V DC - overvoltage damping diode
G2R-1-SN-12DC SPDT 12V DC 275 43.6 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC LED -
G2R-1-SN-24AC SPDT 24V AC 260 46.5 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED -
G2R-1-SN-24DC SPDT 24V DC 1.1k 21.8 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC LED -
G2R-1-SN-48DC SPDT 48V DC 4.17k 11.5 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC LED -
G2R-1-SN-110AC SPDT 110V AC 4.6k 11 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED -
G2R-1-SN-230AC SPDT 230V AC 22k 4.7 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED -
G2R-1-SN-240AC SPDT 240V AC 27.8k - - - 10 2500 300 10 10A / 250V AC 10A / 30V DC LED -
G2R-1-SND-12DC SPDT 12V DC 275 43.6 530 - 20 2500 300 10 10A / 250V AC 10A / 30V DC LED overvoltage damping diode; LED indicator
G2R-1-SND-24DC SPDT 24V DC 1.1k 21.8 530 - 20 2500 300 10 10A / 250V AC 10A / 30V DC LED overvoltage damping diode; LED indicator
G2R-1-SND-48DC SPDT 48V DC 4.17k 11.5 530 - 20 2500 300 10 10A / 250V AC 10A / 30V DC LED overvoltage damping diode; LED indicator
G2R-1-SNI-12AC SPDT 12V AC 65 93 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED test button without blocking function; LED indicator
G2R-1-SNI-12DC SPDT 12V DC 275 43.6 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC LED test button without blocking function; LED indicator
G2R-1-SNI-24AC SPDT 24V AC 260 46.5 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED test button without blocking function; LED indicator
G2R-1-SNI-24DC SPDT 24V DC 1.1k 21.8 530 - 5 2500 300 10 10A / 250V AC 10A / 30V DC LED test button without blocking function; LED indicator
G2R-1-SNI-48AC SPDT 48V AC 1.13k 23.3 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED test button without blocking function; LED indicator
G2R-1-SNI-110AC SPDT 110V AC 4.6k 11 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED test button without blocking function; LED indicator
G2R-1-SNI-230AC SPDT 230V AC 22k 4.7 - 900 10 2500 300 10 10A / 250V AC 10A / 30V DC LED test button without blocking function; LED indicator
G2R-1-SNDI-24DC SPDT 24V DC 1.1k 21.8 530 - 20 2500 300 10 10A / 250V AC 10A / 30V DC LED overvoltage damping diode; test button without blocking function; LED indicator
G2R-2-S-12DC DPDT 12V DC 275 43.6 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC - -
G2R-2-S-24AC DPDT 24V AC 260 46.5 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC - -
G2R-2-S-24DC DPDT 24V DC 1.1k 21.8 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC - -
G2R-2-S-230AC DPDT 230V AC 22k 4.7 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC - -
G2R-2-SD-24DC DPDT 24V DC 1.1k 21.8 530 - 20 1250 150 5 5A / 250V AC 5A / 30V DC - overvoltage damping diode
G2R-2-SN-12AC DPDT 12V AC 65 93 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-12DC DPDT 12V DC 275 43.6 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-24AC DPDT 24V AC 260 46.5 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-24DC DPDT 24V DC 1.1k 21.8 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-48AC DPDT 48V AC 1.13k 23.3 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-48DC DPDT 48V DC 4.17k 11.5 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-110AC DPDT 110V AC 4.6k 11 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-120AC DPDT 120V AC 7268 7.5 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-110DC DPDT 110V DC 22.9k 5.3 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SN-230AC DPDT 230V AC 22k 4.7 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED -
G2R-2-SND-12DC DPDT 12V DC 275 43.6 530 - 20 1250 150 5 5A / 250V AC 5A / 30V DC LED overvoltage damping diode; LED indicator
G2R-2-SND-24DC DPDT 24V DC 1.1k 46.5 530 - 20 1250 150 5 5A / 250V AC 5A / 30V DC LED overvoltage damping diode; LED indicator
G2R-2-SND-48DC DPDT 48V DC 4.17k 11.5 530 - 20 1250 150 5 5A / 250V AC 5A / 30V DC LED overvoltage damping diode; LED indicator
G2R-2-SNI-12AC DPDT 12V AC 65 93 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNI-12DC DPDT 12V DC 275 43.6 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNI-24AC DPDT 24V AC 260 46.5 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNI-24DC DPDT 24V DC 1.1k 21.8 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNI-48AC DPDT 48V AC 1.13k 23.3 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNI-48DC DPDT 48V DC 4.17k 11.5 530 - 5 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNI-110AC DPDT 110V AC 4.6k 11 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNI-230AC DPDT 230V AC 22k 4.7 - 900 10 1250 150 5 5A / 250V AC 5A / 30V DC LED test button without blocking function; LED indicator
G2R-2-SNDI-12DC DPDT 12V DC 275 43.6 530 - 20 1250 150 5 5A / 250V AC 5A / 30V DC LED overvoltage damping diode; test button without blocking function; LED indicator
G2R-2-SNDI-24DC DPDT 24V DC 1.1k 21.8 530 - 20 1250 150 5 5A / 250V AC 5A / 30V DC - -
* at resistive load
Symbol Term. pitch Dimensions Output configuration
[mm]
G2R-1-S-12DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-S-24AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-S-24DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-S-48DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-S-120AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-S-230AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-S-240AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SD-12DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SD-24DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SN-12DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SN-24AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SN-24DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SN-48DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SN-110AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SN-230AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SN-240AC - Fig. 1-1. Fig. 2-1.
G2R-1-SND-12DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SND-24DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SND-48DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNI-12AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNI-12DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNI-24AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNI-24DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNI-48AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNI-110AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNI-230AC 5.2 Fig. 1-1. Fig. 2-1.
G2R-1-SNDI-24DC 5.2 Fig. 1-1. Fig. 2-1.
G2R-2-S-12DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-S-24AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-S-24DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-S-230AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SD-24DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-12AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-12DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-24AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-24DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-48AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-48DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-110AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-120AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-110DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SN-230AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SND-12DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SND-24DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SND-48DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-12AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-12DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-24AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-24DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-48AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-48DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-110AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNI-230AC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNDI-12DC 5 Fig. 1-2. Fig. 2-2.
G2R-2-SNDI-24DC 5 Fig. 1-2. Fig. 2-2.
Manufacturer series:
  • G2R-1-S (G2R-1-SxxxC)
  • G2R-2-S (G2R-2-SxxxC)
