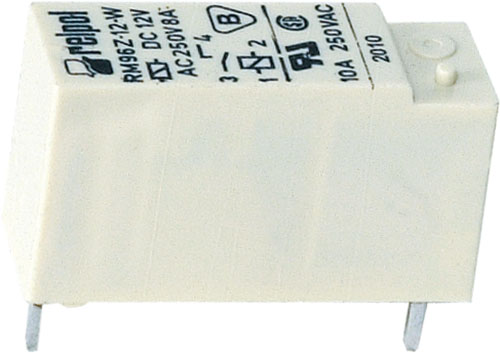

Relay: electromagnetic; miniature; PCB; RELPOL

Relay: electromagnetic; miniature; PCB; RELPOL, RM96-1011-35-1005, RM96-1011-35-1009 |EN|
ManufacturerRELPOL
Type of relayelectromagnetic
Variantminiature
MountingPCB
Contact current max.8A
Switched voltagemax. 120V DC
Switched voltagemax. 440V AC
AC load rating @R*8A / 250V AC
DC load rating @R*8A / 24V DC
Contact resistance100mΩ
Operate time10ms
Release time5ms
Operating temperature-40...80°C
IP ratingIP67
DimensionsFig. 1.
Mechanical durability20000000 cycles
Height16.2mm
* at resistive load
Symbol Body dimensions Contacts layout Ucoil Ucoil min Ucoil max Rcoil Pcoil Pitch Material Number of pins Manufacturer series
[mm] [V DC] [V DC] [V DC] [Ω] [mW] [mm]
RM96-3011-35-1005 30x10x16.2 SPDT 5 3.5 12 110 300 3.2 AgSnO2 5 RM96-1P
RM96-3011-35-1006 30x10x16.2 SPDT 6 4.2 14.5 160 300 3.2 AgSnO2 5 RM96-1P
RM96-3011-35-1009 30x10x16.2 SPDT 9 6.3 22 360 300 3.2 AgSnO2 5 RM96-1P
RM96-3011-35-1012 30x10x16.2 SPDT 12 8.4 29.5 660 300 3.2 AgSnO2 5 RM96-1P
RM96-3011-35-1018 30x10x16.2 SPDT 18 12.6 44 1.5k 300 3.2 AgSnO2 5 RM96-1P
RM96-3011-35-1024 30x10x16.2 SPDT 24 16.8 54 2.2k 300 3.2 AgSnO2 5 RM96-1P
RM96-3011-35-1048 30x10x16.2 SPDT 48 33.6 102 8k 300 3.2 AgSnO2 5 RM96-1P
RM96-3021-35-1005 28x10x16.2 SPST-NO 5 3.5 12 110 300 5 AgSnO2 4 RM96
RM96-3021-35-1006 28x10x16.2 SPST-NO 6 4.2 14.5 160 300 5 AgSnO2 4 RM96
RM96-3021-35-1009 28x10x16.2 SPST-NO 9 6.3 22 360 300 5 AgSnO2 4 RM96
RM96-3021-35-1012 28x10x16.2 SPST-NO 12 8.4 29.5 660 300 5 AgSnO2 4 RM96
RM96-3021-35-1018 28x10x16.2 SPST-NO 18 12.6 44 1.5k 300 5 AgSnO2 4 RM96
RM96-3021-35-1024 28x10x16.2 SPST-NO 24 16.8 54 2.2k 300 5 AgSnO2 4 RM96
RM96-3021-35-1048 28x10x16.2 SPST-NO 48 33.6 102 8k 300 5 AgSnO2 4 RM96
RM96-3031-35-1005 28x10x16.2 SPST-NC 5 3.5 12 110 300 5 AgSnO2 4 RM96
RM96-3031-35-1006 28x10x16.2 SPST-NC 6 4.2 14.5 160 300 5 AgSnO2 4 RM96
RM96-3031-35-1009 28x10x16.2 SPST-NC 9 6.3 22 360 300 5 AgSnO2 4 RM96
RM96-3031-35-1012 28x10x16.2 SPST-NC 12 8.4 29.5 660 300 5 AgSnO2 4 RM96
RM96-3031-35-1018 28x10x16.2 SPST-NC 18 12.6 44 1.5k 300 5 AgSnO2 4 RM96
RM96-3031-35-1024 28x10x16.2 SPST-NC 24 16.8 54 2.2k 300 5 AgSnO2 4 RM96
RM96-3031-35-1048 28x10x16.2 SPST-NC 48 33.6 102 8k 300 5 AgSnO2 4 RM96
