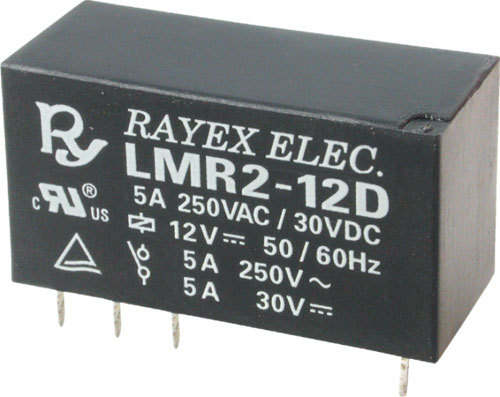

Relay: electromagnetic; miniature; Recoy/RAYEX ELECTRONICS
| Manufacturer | Recoy/RAYEX ELECTRONICS |
| Type of relay | electromagnetic |
| Variant | miniature |
| Mounting | PCB |
| Contact current max. | 5A |
| Switched voltage | max. 250V AC |
| Switched voltage | max. 30V DC |
| AC load rating @R* | 5A / 250V AC |
| DC load rating @R* | 5A / 30V DC |
| Contact resistance | 100mΩ |
| Term. pitch | 5mm |
| Operate time | 15ms |
| Release time | 10ms |
| Operating temperature | -40...80°C |
| Contact material | AgCdO |
| Body dimensions | 29x15.5x12.5mm |
* at resistive load
| Symbol | Output configuration | Contacts layout | Ucoil | Rcoil | Icoil | Pcoil | Manufacturer series |
|---|---|---|---|---|---|---|---|
| [V DC] | [Ω] | [mA] | [mW] | ||||
| LMR2-3D | Fig. 1. | DPDT | 3 | 17 | 176.5 | 530 | LMR2 |
| LMR2-5D | Fig. 1. | DPDT | 5 | 47 | 106.4 | 530 | LMR2 |
| LMR2-12D | Fig. 1. | DPDT | 12 | 270 | 44.4 | 530 | LMR2 |
| LMR2-24D | Fig. 1. | DPDT | 24 | 1.1k | 21.8 | 530 | LMR2 |
| LMR2A-5D | Fig. 2. | DPST-NO | 5 | 47 | 106.4 | 530 | LMR2 |
| LMR2A-9D | Fig. 2. | DPST-NO | 9 | 155 | 58 | 530 | LMR2 |
| LMR2A-48D | Fig. 2. | DPST-NO | 48 | 4.4k | 10.9 | 530 | LMR2 |
| LM2-5D | Fig. 1. | DPDT | 5 | 47 | 106.4 | 530 | LM2 |
| LM2-12D | Fig. 1. | DPDT | 12 | 270 | 44.4 | 530 | LM2 |
| LM2A-5D | Fig. 2. | DPST-NO | 5 | 47 | 106.4 | 530 | LM2 |
| LM2A-12D | Fig. 2. | DPST-NO | 12 | 270 | 44.4 | 530 | LM2 |
| LM2A-48D | Fig. 2. | DPST-NO | 48 | 4.4k | 10.9 | 530 | LM2 |
