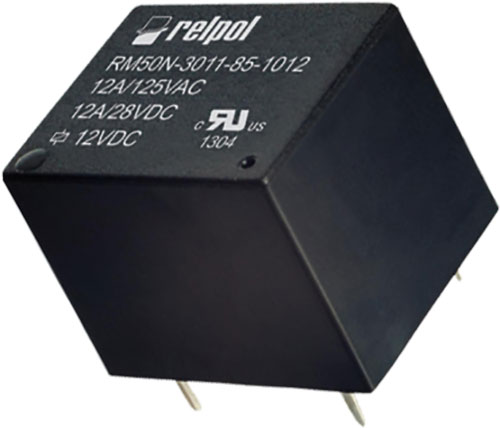

Relay: electromagnetic; miniature; RELPOL
| Manufacturer | RELPOL |
| Type of relay | electromagnetic |
| Variant | miniature |
| Contact material | AgSnO2 |
| Mounting | PCB |
| Contact current max. | 12A |
| Switched voltage | max. 277V AC |
| Switched voltage | max. 28V DC |
| Contact resistance | 100mΩ |
| Term. pitch | 2mm |
| IP rating | IP64 |
| Operate time | 10ms |
| AC load rating @R* | 12A / 125V AC |
| DC load rating @R* | 12A / 28V DC |
| Body dimensions | 19x15.6x15.3mm |
| Operating temperature | -30...55°C |

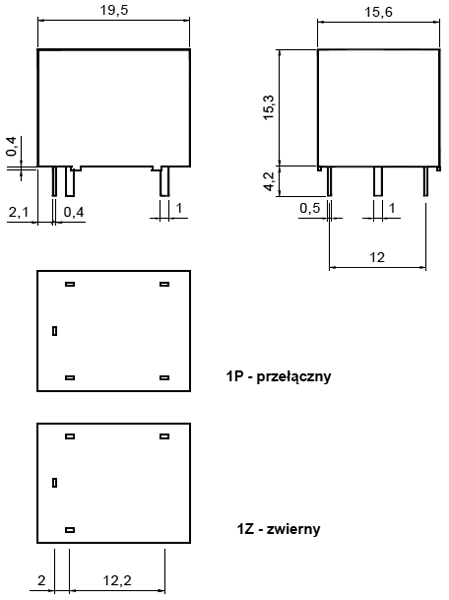

| Dimensions | Fig. 1-1. |

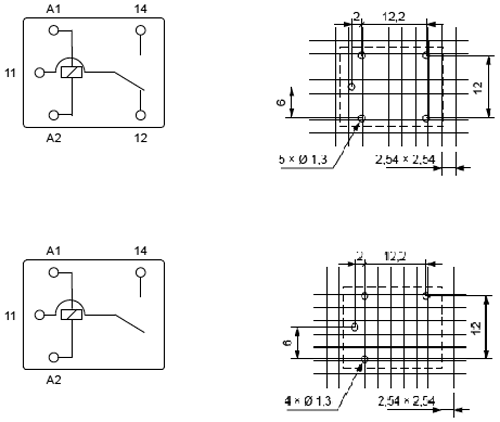

| Leads | Fig. 2-1. |
| Manufacturer series | RM50N |
* at resistive load
| Symbol | Contacts layout | Ucoil | Ucoil min | Ucoil max | Rcoil | Pcoil |
|---|---|---|---|---|---|---|
| [V DC] | [V DC] | [V DC] | [Ω] | [mW] | ||
| RM50N3011851005 | SPDT | 5 | 3.75 | 6.5 | 70 | 360 |
| RM50N3011851012 | SPDT | 12 | 9 | 15.6 | 400 | 360 |
| RM50N3011851024 | SPDT | 24 | 18 | 31.2 | 1.6k | 360 |
| RM50N3021851005 | SPST-NO | 5 | 3.75 | 6.5 | 70 | 360 |
| RM50N3021851012 | SPST-NO | 12 | 9 | 15.6 | 400 | 360 |
| RM50N3021851024 | SPST-NO | 24 | 18 | 31.2 | 1.6k | 360 |
