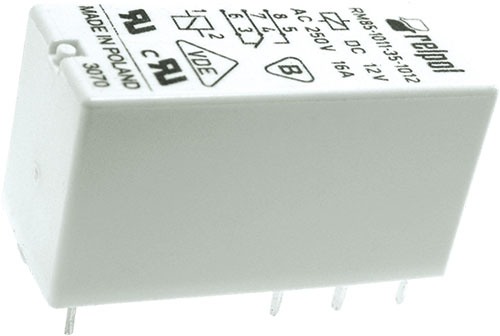

Relay: electromagnetic; miniature; RELPOL

Relay: electromagnetic; miniature; RELPOL, RM85-2011-35-1005, RM85-2011-35-1009 |EN|
ManufacturerRELPOL
Type of relayelectromagnetic
Inom16A
MountingPCB
Contact current max.16A
DC load rating @R*16A / 24V DC
Contact resistance100mΩ
Term. pitch5mm
Release time3ms

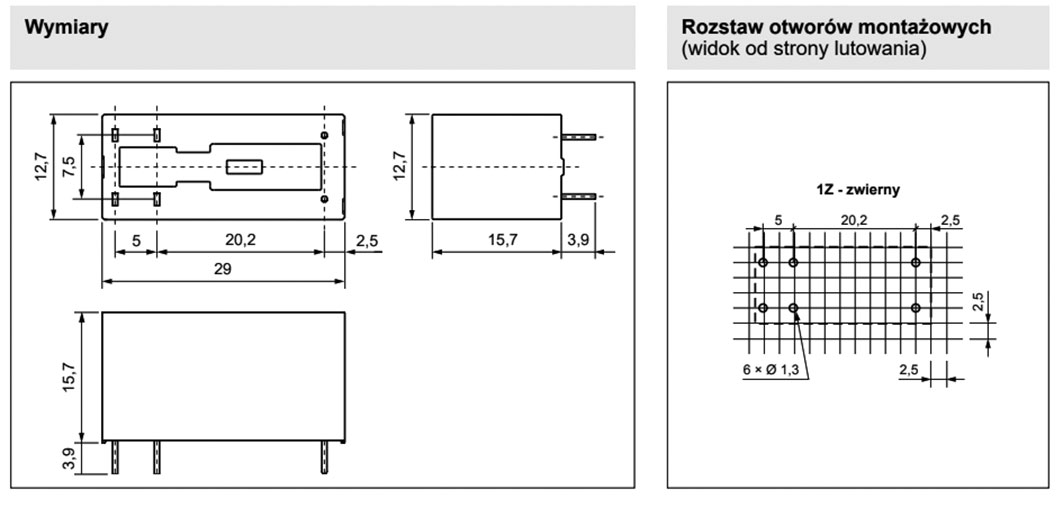

Body dimensions29x12.7x15.7mm
Manufacturer seriesRM85
* at resistive load

Symbol IP rating Contact material Contacts layout Coil voltage Ucoil min Ucoil max Coil res. Coil power Coil power Max surge current AC load rating @R* Switched voltage
[Ω] [mW] [mVA] [A] [V AC]
RM85-2011-35-1005 IP67 AgNi SPDT 5V DC 3.5V DC 12.7V DC 60 480 - - 16A / 250V AC max. 440
RM85-2011-35-1009 IP67 AgNi SPDT 9V DC 6.3V DC 22.9V DC 200 480 - - 16A / 250V AC max. 440
RM85-2011-35-1012 IP67 AgNi SPDT 12V DC 8.4V DC 30.6V DC 360 480 - - 16A / 250V AC max. 440
RM85-2011-25-1024 IP40 AgNi SPDT 24V DC 16.8V DC 30.6V DC 1440 480 - - 16A / 250V AC max. 440
RM85-2011-35-1024 IP67 AgNi SPDT 24V DC 16.8V DC 30.6V DC 1440 480 - - 16A / 250V AC max. 440
RM85-2011-35-1048 IP67 AgNi SPDT 48V DC 33.6V DC 122.4V DC 5700 480 - - 16A / 250V AC max. 440
RM85-2011-35-1110 IP67 AgNi SPDT 110V DC 77V DC 280V DC 25200 480 - - 16A / 250V AC max. 440
RM85-2011-35-5024 IP67 AgNi SPDT 24V AC 19.2V AC 28.8V AC 400 - 750 - 16A / 250V AC max. 440
RM85-2011-35-5230 IP67 AgNi SPDT 230V AC 184V AC 276V AC 38500 - 750 - 16A / 250V AC max. 440
RM85-2021-35-1005 IP67 AgNi SPST-NO 5V DC 3.5V DC 12.7V DC 60 480 - - 16A / 250V AC max. 440
RM85-2021-35-1012 IP67 AgNi SPST-NO 12V DC 8.4V DC 30.6V DC 360 480 - - 16A / 250V AC max. 440
RM85-2021-35-1024 IP67 AgNi SPST-NO 24V DC 16.8V DC 30.6V DC 1440 480 - - 16A / 250V AC max. 440
RM85-2021-35-1110 IP67 AgNi SPST-NO 110V DC 77V DC 280V DC 25200 480 - - 16A / 250V AC max. 440
RM85-2021-35-5024 IP67 AgNi SPST-NO 24V AC 19.2V AC 28.8V AC 400 - 750 - 16A / 250V AC max. 440
RM85-2021-35-5230 IP67 AgNi SPST-NO 230V AC 184V AC 276V AC 38500 - 750 - 16A / 250V AC max. 440
RM85-3011-35-1012 IP67 AgSnO2 SPDT 12V DC 8.4V DC 30.6V DC 360 480 - 30 16A / 250V AC max. 440
RM85-3011-35-1024 IP67 AgSnO2 SPDT 24V DC 16.8V DC 61.2V DC 1440 480 - 30 16A / 250V AC max. 440
RM85-3011-35-5230 IP67 AgSnO2 SPDT 230V AC 184V AC 276V AC 38500 - 750 30 16A / 250V AC max. 440
RM85-3021-25-1005 IP40 AgSnO2 SPST-NO 5V DC - - 60 480 - 30 16A / 250V AC max. 440
RM85-3011-25-1048 IP40 AgSnO2 SPDT 48V DC 33.6V DC 122.4V DC 5700 480 - 30 16A / 250V AC max. 440
RM85-3021-35-1005 IP67 AgSnO2 SPST-NO 5V DC 3.5V DC 12.7V DC 60 480 - 30 16A / 250V AC max. 440
RM85-3021-25-S009 IP40 AgSnO2 SPST-NO 9V DC 6.75V DC 27V DC 330 250 - 30 16A / 250V AC max. 440
RM85-3021-35-1012 IP67 AgSnO2 SPST-NO 12V DC 8.4V DC 30.6V DC 360 480 - 30 16A / 250V AC max. 440
RM85-3051-35-1024 IP67 AgSnO2 SPST-NO 24V DC 16.8V DC 61.2V DC 1440 480 - 30 5A / 480V AC max. 480
RM85-3051-25-1024 IP40 AgSnO2 SPST-NO 24V DC 16.8V DC 61.2V DC 1440 480 - 30 5A / 480V AC max. 480
RM85-5021-25-1005 IP40 AgSnO2 SPST-NO 5V DC 3.5V DC 12.7V DC 60 480 - 80 16A / 250V AC max. 440
RM85-5021-25-1012 IP40 AgSnO2 SPST-NO 12V DC 8.4V DC 30.6V DC 360 480 - 80 16A / 250V AC max. 440
RM85-5021-25-1024 IP40 AgSnO2 SPST-NO 24V DC 16.8V DC 61.2V DC 1440 480 - 80 16A / 250V AC max. 440
RM85-5021-25-1048 IP40 AgSnO2 SPST-NO 48V DC 33.6V DC 122.4V DC 5700 480 - 80 16A / 250V AC max. 440
RM85-3051-25-1012 IP40 AgSnO2 SPST-NO 12V DC 8.4V DC 30.6V DC 360 - - - 16A / 250V AC max. 440
RM85201125102401 IP67 AgNi SPDT 24V DC 16.8V DC 61.2V DC 1440 480 - 30 16A / 250V AC max. 440
RM85201125502401 IP67 AgNi SPDT 24V AC 19.2V AC 28.8V AC 400 - 750 30 16A / 250V AC max. 440
RM85201125523001 IP67 AgNi SPDT 230V AC 184V AC 276V AC 38500 - 750 30 16A / 250V AC max. 440
RM85-2021-25-S048 IP67 AgNi SPST-NO 48V DC 36V DC 144V DC 9340 250 - - 16A / 250V AC max. 400
* at resistive load
Operate time:
  • 8ms (RM85-2011-xxx, RM85-2021-35-xxx, RM85-30xxx, RM85-5021-25-10xx, RM85201125xxx01)
  • 7ms (RM85-2021-25-S048)
Switched voltage:
  • max. 250V DC (RM85-2011-xxx, RM85-2021-35-xxx, RM85-30xxx, RM85-5021-25-10xx, RM85201125xxx01)
  • max. 300V DC (RM85-2021-25-S048)
Operating temperature:
Output configuration:
Variant:
Body col.:
