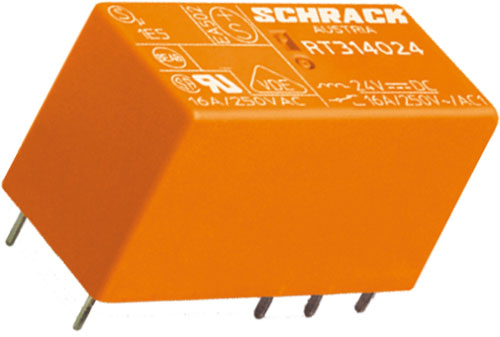

Relay: electromagnetic; miniature; TE Connectivity

Manufacturer	TE Connectivity
Type of relay	electromagnetic
Mounting	THT
Height	15.7mm
Switched voltage	max. 400V AC
Body dimensions	29x15.7x12.7mm

Symbol	Contacts configuration	Coil voltage	U_coil min	Coil res.	Coil power	Coil power	Contact current max.	AC load rating @R*	DC load rating @R*	Contact material	IP rating
				[Ω]	[mW]	[mVA]	[A]
RT114005	SPDT	5V DC	3.5V DC	62	403	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT114006	SPDT	6V DC	4.2V DC	90	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT114012	SPDT	12V DC	8.4V DC	360	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT114024	SPDT	24V DC	16.8V DC	1.44k	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT114524	SPDT	24V AC	18V AC	350	-	760	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT114615	SPDT	115V AC	86.3V AC	8.1k	-	760	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT114730	SPDT	230V AC	172.5V AC	32.5k	-	740	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT134012	SPST-NO	12V DC	8.4V DC	360	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT134024	SPST-NO	24V DC	16.8V DC	1.44k	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT214012	SPDT	12V DC	8.4V DC	360	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT214024	SPDT	24V DC	16.8V DC	1.44k	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT214524	SPDT	24V AC	18V AC	350	-	760	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT214730	SPDT	230V AC	172.5V AC	32.5k	-	740	12	12A / 250V AC	12A / 24V DC	AgNi	IP40
RT314005	SPDT	5V DC	3.5V DC	62	403	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314006	SPDT	6V DC	4.2V DC	90	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314012	SPDT	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314018	SPDT	18V DC	-	-	-	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314024	SPDT	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314048	SPDT	48V DC	33.6V DC	5.52k	417	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314110	SPDT	110V DC	77V DC	28.8k	420	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314524	SPDT	24V AC	18V AC	350	-	760	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314615	SPDT	115V AC	86.3V DC	8.1k	-	760	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT314730	SPDT	230V AC	172.5V AC	32.5k	-	750	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT315024	SPDT	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10 Au	IP40
RT334006	SPST-NO	6V DC	4.2V DC	90	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT334012	SPST-NO	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT334024	SPST-NO	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RT334730	SPST-NO	230V AC	172.5V AC	32.5k	-	740	16	16A / 250V AC	16A / 24V DC	AgNi	IP40
RTB14005	SPDT	5V DC	3.5V DC	62	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP67
RTB14012	SPDT	12V DC	8.4V DC	360	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP67
RTB14024	SPDT	24V DC	16.8V DC	1.44k	400	-	12	12A / 250V AC	12A / 24V DC	AgNi	IP67
RTB14524	SPDT	24V AC	18V AC	350	-	760	12	12A / 250V AC	12A / 24V DC	AgNi	IP67
RTB14730	SPDT	230V AC	172.5V AC	32.5k	-	740	12	12A / 250V AC	12A / 24V DC	AgNi	IP67
RTD14005	SPDT	5V DC	3.5V DC	62	403	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP67
RTD14A05	SPDT	5V DC	3.5V DC	62	403	-	16	16A / 250V AC	-	AgNi	IP67
RTD14012	SPDT	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP67
RTD14012F	SPDT	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP67
RTD14024	SPDT	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP67
RTD14730	SPDT	230V AC	172.5V AC	32.5k	-	740	16	16A / 250V AC	16A / 24V DC	AgNi	IP67
RTD34012	SPST-NO	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP67
RTD34024	SPST-NO	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgNi	IP67
RT174005	SPDT	5V DC	3.7V DC	100	250	-	10	10A / 250V AC	10A / 24V DC	AgNi 90/10	IP67
RT174012	SPDT	12V DC	9V DC	576	250	-	10	10A / 250V AC	10A / 24V DC	AgNi 90/10	IP67
RT174024	SPDT	24V DC	18V DC	2304	250	-	10	10A / 250V AC	10A / 24V DC	AgNi 90/10	IP67
RTB74005	SPDT	5V DC	3.7V DC	100	250	-	10	10A / 250V AC	10A / 24V DC	AgNi 90/10	IP67
RTB74012	SPDT	12V DC	9V DC	576	250	-	10	10A / 250V AC	10A / 24V DC	AgNi 90/10	IP67
RTB84009	SPST-NO	9V DC	6.8V DC	312	250	-	10	10A / 250V AC	10A / 24V DC	AgNi 90/10	IP67
RT31L012	SPDT	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP40
RT31L024	SPDT	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP40
RT33L012	SPST-NO	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP40
RT33L024	SPST-NO	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP40
RT33K012	SPST-NO	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RT33K024	SPST-NO	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RTS3L005	SPST-NO	5V DC	3.5V DC	62	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP40
RTS3L012	SPST-NO	12V DC	8.4V DC	360	250	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP40
RTS3L024	SPST-NO	24V DC	16.8V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP40
RTS3T012	SPST-NO	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂ + W	IP67
RTS3T024	SPST-NO	24V DC	16.3V DC	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂ + W	IP67
RT314A12	SPDT	12V DC	-	360	400	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RT314A24	SPDT	24V DC	-	1.44k	400	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RT314F03	SPDT	3V DC	-	15	600	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RT314F05	SPDT	5V DC	-	42	595	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RT314F12	SPDT	12V DC	-	240	600	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RT314F24	SPDT	24V DC	-	886	650	-	16	16A / 250V AC	16A / 24V DC	AgNi 90/10	IP40
RTD1L012	SPDT	12V DC	8.4V DC	360	400	-	16	16A / 250V AC	16A / 24V DC	AgSnO₂	IP67

* at resistive load

Symbol: (RT1140xx, RTB14xxx)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	3.5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-1.
Switched power	3kVA
Number of pins	5
Max surge current	25A
Manufacturer series	RT1
Symbol: (RT114524, RT114615, RT114730)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	3.5mm
Mechanical durability	10000000 cycles
Output configuration	Fig. 2-1.
Switched power	3kVA
Number of pins	5
Max surge current	25A
Manufacturer series	RT1
Symbol: (RT134012, RT134024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	3.5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-2.
Switched power	3kVA
Number of pins	4
Max surge current	30A
Manufacturer series	RT1

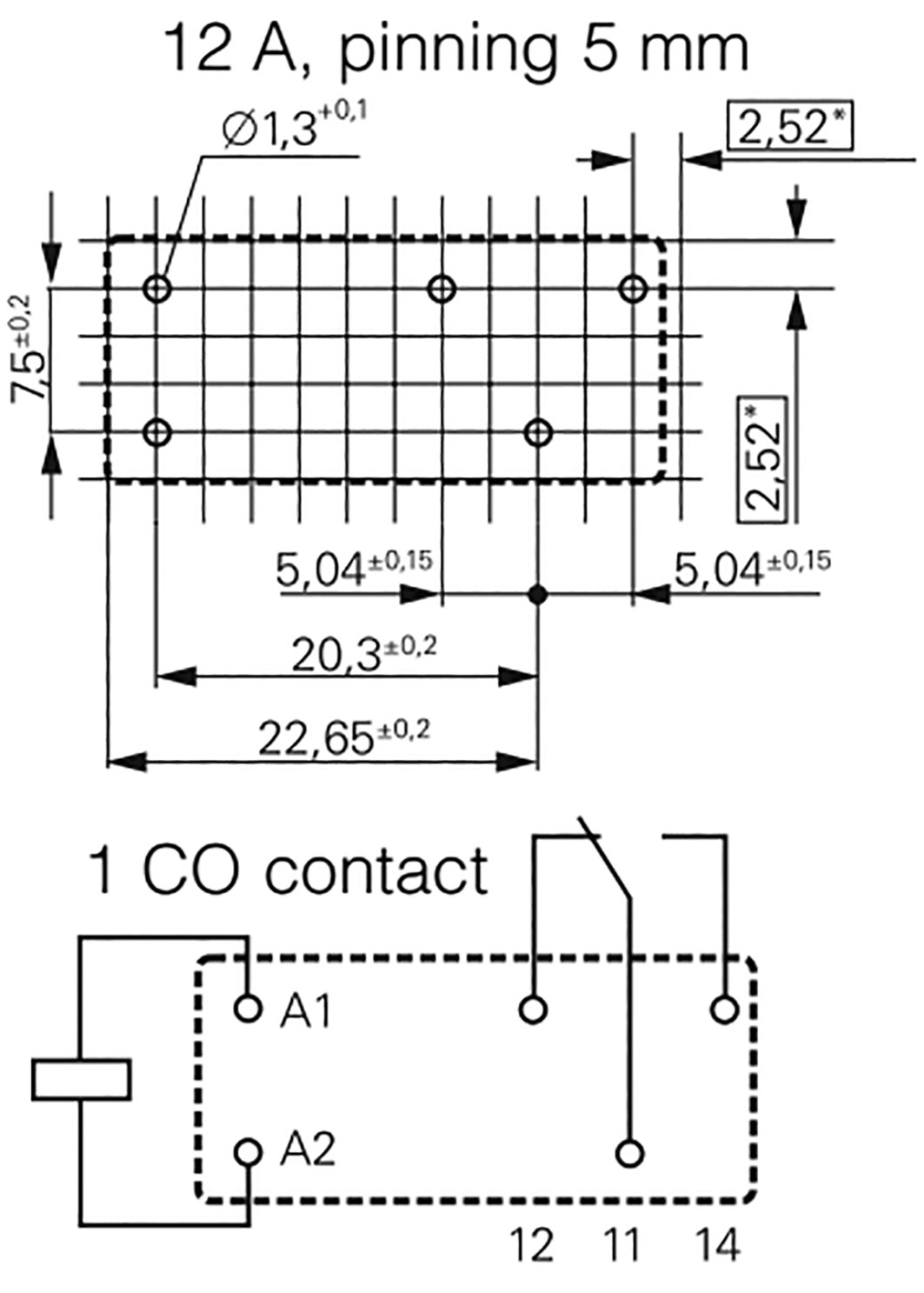

Symbol: (RT214xxx)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-3.
Switched power	3kVA
Number of pins	5
Max surge current	25A
Manufacturer series	RT/5
Symbol: (RT3140xx, RT314110, RT315024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-4.
Switched power	3kVA
Number of pins	8
Max surge current	25A
Manufacturer series	RT/5
Symbol: (RT314524, RT314615, RT314730)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	5mm
Mechanical durability	10000000 cycles
Output configuration	Fig. 2-4.
Switched power	3kVA
Number of pins	8
Max surge current	25A
Manufacturer series	RT/5
Symbol: (RT334xxx)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-5.
Switched power	3kVA
Number of pins	6
Max surge current	30A
Manufacturer series	RT/5
Symbol: (RTD140xxx)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-4.
Switched power	3kVA
Number of pins	8
Max surge current	25A
Manufacturer series	RT1
Symbol: (RTD14A05)
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-4.
Switched power	4kVA
Number of pins	8
Max surge current	30A
Manufacturer series	RT1
Symbol: (RTD14730)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-4.
Switched power	3kVA
Number of pins	8
Max surge current	25A
Manufacturer series	RT1
Symbol: (RTD34012, RTD34024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-5.
Switched power	3kVA
Number of pins	6
Max surge current	30A
Manufacturer series	RT1
Symbol: (RT1740xx, RTB74005, RTB74012)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	sensitive, miniature
Operating temperature	-40...85°C
Term. pitch	3.5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-1.
Switched power	3kVA
Number of pins	5
Max surge current	15A
Manufacturer series	RT1
Symbol: (RTB84009)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	sensitive, miniature
Operating temperature	-40...85°C
Term. pitch	3.5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-5.
Switched power	3kVA
Number of pins	4
Max surge current	15A
Manufacturer series	RT1
Symbol: (RT31L012, RT31L024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	inrush, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-4.
Switched power	3kVA
Number of pins	8
Max surge current	80A
Manufacturer series	RT1
Symbol: (RT33L012, RT33L024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	inrush, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-5.
Switched power	3kVA
Number of pins	6
Max surge current	80A
Manufacturer series	RT1
Symbol: (RT33K012, RT33K024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	inrush, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-5.
Switched power	3kVA
Number of pins	6
Max surge current	30A
Manufacturer series	RT1
Symbol: (RTS3L005, RTS3L012)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	inrush, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	10000000 cycles
Output configuration	Fig. 2-5.
Switched power	4kVA
Number of pins	6
Max surge current	120A
Manufacturer series	RT1

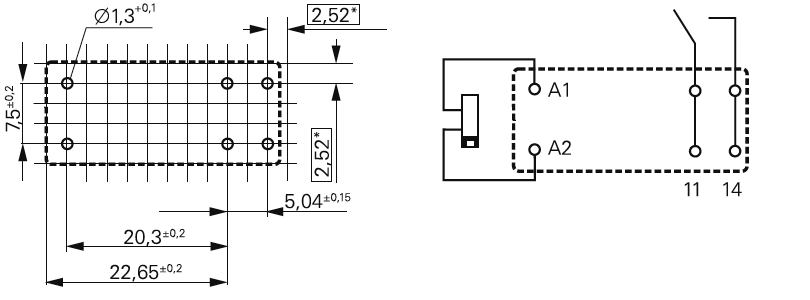

Symbol: (RTS3L024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	inrush, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	10000000 cycles
Output configuration	Fig. 2-6.
Switched power	4kVA
Number of pins	6
Max surge current	120A
Manufacturer series	RT1
Symbol: (RTS3T012, RTS3T024)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-2.
Variant	inrush, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	5000000 cycles
Output configuration	Fig. 2-6.
Switched power	4kVA
Number of pins	6
Max surge current	165A
Manufacturer series	RTS

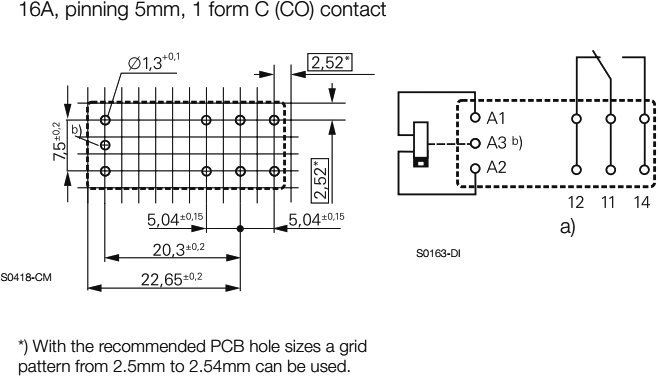

Symbol: (RT314A12, RT314A24)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-3.
Variant	bistable, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	5000000 cycles
Output configuration	Fig. 2-7.
Switched power	4kVA
Number of pins	8
Max surge current	30A
Manufacturer series	RT1
Design	single coil
Symbol: (RT314Fxx)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-3.
Variant	bistable, miniature
Operating temperature	-40...85°C
Term. pitch	5mm
Mechanical durability	5000000 cycles
Output configuration	Fig. 2-8.
Switched power	4kVA
Number of pins	9
Max surge current	30A
Manufacturer series	RT1
Design	two coils
Symbol: (RTD1L012)
Switched voltage	max. 300V DC
Dimensions	Fig. 1-1.
Variant	miniature
Operating temperature	-40...70°C
Term. pitch	5mm
Mechanical durability	30000000 cycles
Output configuration	Fig. 2-4.
Switched power	3kVA
Number of pins	8
Max surge current	30A
Manufacturer series	RT1
