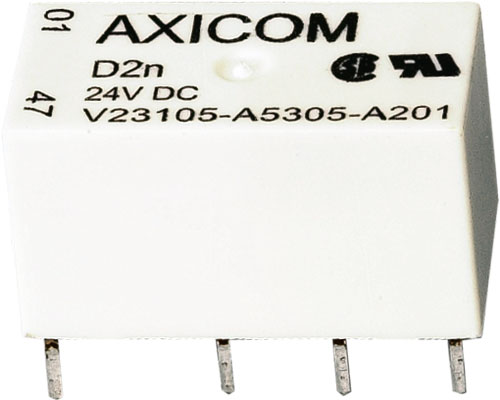

Relay: electromagnetic; miniature; TE Connectivity

Relay: electromagnetic; miniature; TE Connectivity, D2N05-167, D2N12-960, D2N24-3480, D2N05-125 |EN|

Manufacturer	TE Connectivity
Type of relay	electromagnetic
Variant	miniature
Mounting	PCB
Contacts configuration	DPDT
Contact current max.	3A
Switched voltage	max. 250V AC
Switched voltage	max. 220V DC
AC load rating @R*	0.5A / 125V AC
DC load rating @R*	1A / 30V DC
Switched power	125VA
Switching capacity	60W
Contact resistance	100mΩ
Term. pitch	5mm
Operate time	10ms
Release time	10ms
Mechanical durability	150000000 cycles
Body dimensions	20.3x10.1x11.43mm
Operating temperature	-25...70°C
Dimensions	Fig. 1-1.
Output configuration	Fig. 2-1.
Manufacturer series	D2N

* at resistive load

Symbol	U_coil	R_coil	P_coil	U_coil min	U_coil max
	[V DC]	[Ω]	[mW]	[V DC]	[V DC]
D2N06-180	6	180	200	4.2	13.5
D2N03-45	3	45	200	2.1	6.7
D2N05-62	5	62	400	3.5	7.9
D2N06-240	6	240	150	4.8	15.6
D2N06-70	6	70	515	4.2	8.9
D2N06-90	6	90	400	4.2	9.5
D2N09-140	9	140	580	6.3	12.5
D2N09-405	9	405	405	6.3	20.3
D2N09-540	9	540	150	7.2	23.4
D2N10-200	10	200	500	7.4	13.2
D2N48-4000	48	4k	575	33.6	67.3
D2N48-5760	48	5.76k	400	33.6	76.6
