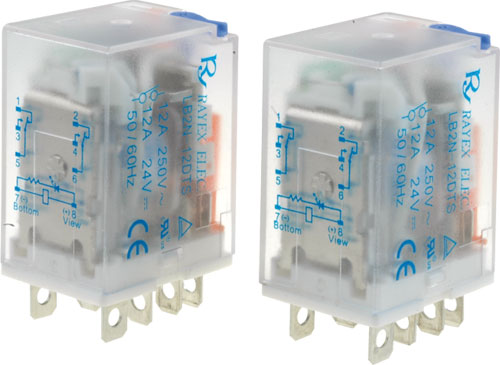

Relay: electromagnetic; Recoy/RAYEX ELECTRONICS
| Manufacturer | Recoy/RAYEX ELECTRONICS |
| Type of relay | electromagnetic |
| Variant | industrial |
| Contacts configuration | DPDT |
| Contact current max. | 10A |
| Switched voltage | max. 240V AC |
| Switched voltage | max. 30V DC |
| AC load rating @R* | 10A / 240V AC |
| DC load rating @R* | 10A / 24V DC |
| Contact resistance | 100mΩ |
| Operate time | 15ms |
| Release time | 15ms |
| Mechanical durability | 10000000 cycles |
| Electrical life | 100000 cycles |
| Design | test button |
| Body dimensions | 28x21.5x35mm |
| Operating temperature | -40...60°C |
| Output configuration | Fig. 1-1. |

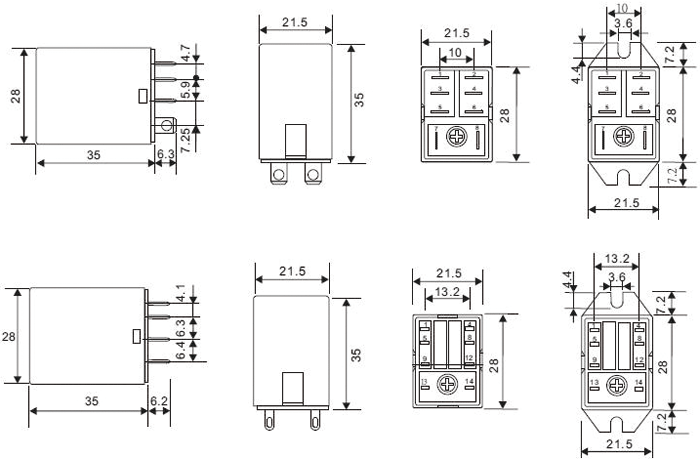

| Dimensions | Fig. 2-1. |
| Indication | LED |
* at resistive load
| Symbol | Mounting | Ucoil | Rcoil | Pcoil | Pcoil |
|---|---|---|---|---|---|
| [Ω] | [W] | [VA] | |||
| LB2N-230ATP | PCB | 230V AC | 16k | - | 1.2 |
| LB2N-220ATS | socket | 230V AC | 16k | - | 1.2 |
| LB2N-24DTS | socket | 24V DC | 650 | 1.1 | - |
| LB2HN-24DTS | socket | 24V DC | 650 | 1.1 | - |
Leads:
- for PCB (LB2N-230ATP)
- connectors (LB2xxxTS)
Leads dimensions:
- 2.5x0.5mm (LB2xxxTS)
Manufacturer series:
- LB2 (LB2N-230ATP, LB2N-220ATS, LB2HN-24DTS)
- LB2H (LB2N-24DTS)
