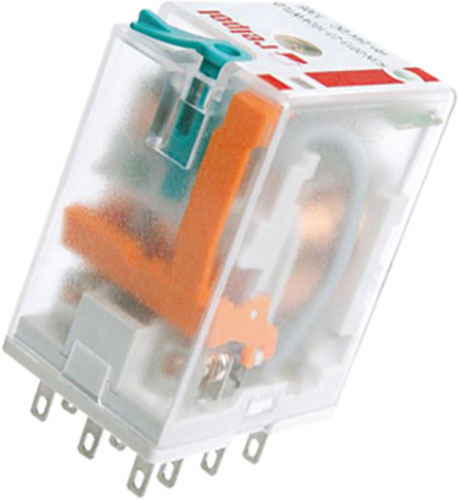

Relay: electromagnetic; RELPOL
| Manufacturer | RELPOL |
| Type of relay | electromagnetic |
| Variant | industrial |
| Mounting | socket |
| Contacts configuration | 3PDT |
| Contact current max. | 20A |
| Switched voltage | max. 440V AC |
| Switched voltage | max. 250V DC |
| AC load rating @R* | 10A / 250V AC |
| DC load rating @R* | 10A / 24V DC |
| Contact resistance | 100mΩ |
| Leads | connectors |
| Body dimensions | 27.5x21.2x35.6mm |
| IP rating | IP40 |
| Number of pins | 11 |
| Manufacturer series | R3N |
| Leads dimensions | 2.2x0.5mm |
* at resistive load
| Symbol | Ucoil | Rcoil | Pcoil | Pcoil | Operating temp. |
|---|---|---|---|---|---|
| [Ω] | [VA] | [W] | [°C] | ||
| R3N2013231012WT | 12V DC | 160 | - | 0.9 | -40...70 |
| R3N2013231024WT | 24V DC | 640 | - | 0.9 | -40...70 |
| R3N2013231024WTLD | 24V DC | 640 | - | 0.9 | -40...70 |
| R3N2013231220WTLD | 220V DC | 54000 | - | 0.9 | -40...70 |
| R3N2013235024WT | 24V AC | 158 | 1.6 | - | -40...55 |
| R3N2013235048WT | 48V AC | 640 | 1.6 | - | -40...55 |
| R3N2013235120WT | 120V AC | 3770 | 1.6 | - | -40...55 |
| R3N2013235230WT | 230V AC | 16100 | 1.6 | - | -40...55 |
Optional equipment:
- overvoltage damping diode (R3N2013231024WTLD, R3N2013231220WTLD)
- test button with blocking function
- LED indicator (R3N2013231024WTLD, R3N2013231220WTLD)
- mechanical indicator
