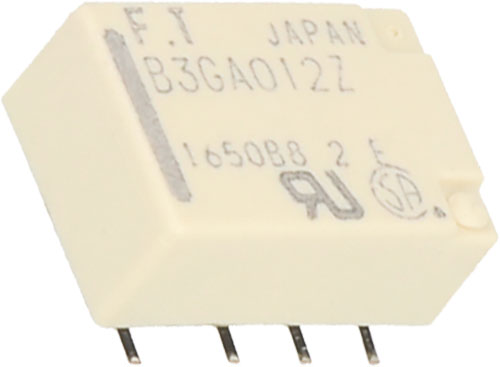

Relay: electromagnetic; subminiature; FCL Components
| Manufacturer | FCL Components |
| Type of relay | electromagnetic |
| Variant | subminiature, signal |
| Contacts configuration | DPDT |
| Contact current max. | 2A |
| Switched voltage | max. 250V AC |
| Switched voltage | max. 220V DC |
| AC load rating @R* | 0.3A / 125V AC |
| DC load rating @R* | 1A / 30V DC |
| Contact material | AgNi + Au |
| Contact resistance | 75mΩ |
| Term. pitch | 2.2mm |
| Operating temperature | -40...85°C |
| Manufacturer series | FTR-B3 |
* at resistive load
| Symbol | Mounting | Ucoil | Rcoil | Pcoil | Body dimensions | Output configuration | Dimensions |
|---|---|---|---|---|---|---|---|
| [V DC] | [Ω] | [mW] | [mm] | ||||

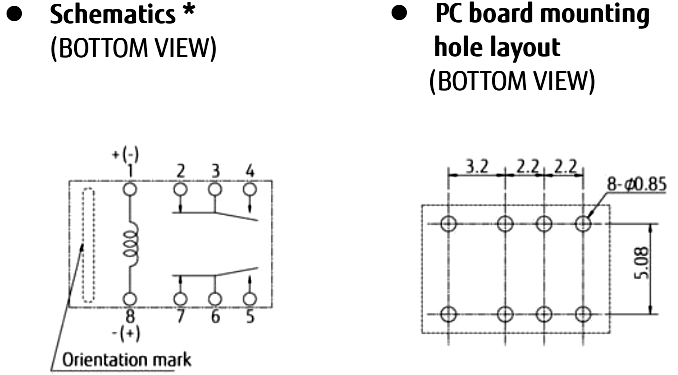

| FTR-B3CA003Z | THT | 3 | 64.3 | 140 | 10.6x7.2x5.2 | Fig. 1-1. | Fig. 2-1. |
| FTR-B3CA012Z | THT | 12 | 1028 | 140 | 10.6x7.2x5.2 | Fig. 1-1. | Fig. 2-1. |
| FTR-B3CA024Z | THT | 24 | 2504 | 230 | 10.6x7.2x5.2 | Fig. 1-1. | Fig. 2-1. |

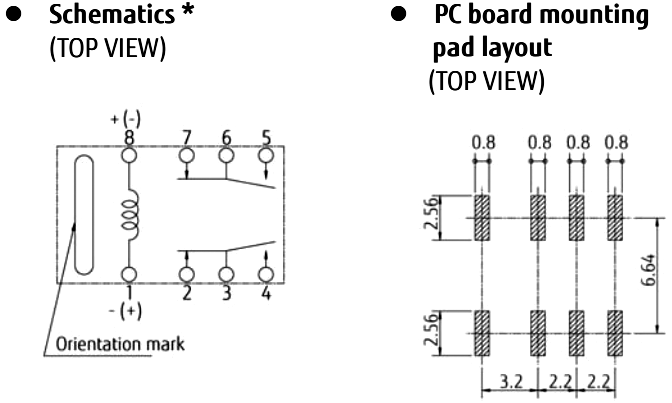

| FTR-B3GA003Z | SMT | 3 | 64.3 | 140 | 10.6x7.2x5.45 | Fig. 1-2. | Fig. 2-2. |
| FTR-B3GA4.5Z-B10 | SMT | 4.5 | 145 | 140 | 10.6x7.2x5.45 | Fig. 1-2. | Fig. 2-2. |
| FTR-B3GA012Z | SMT | 12 | 1028 | 140 | 10.6x7.2x5.45 | Fig. 1-2. | Fig. 2-2. |
| FTR-B3GA012Z-B10 | SMT | 12 | 1028 | 140 | 10.6x7.2x5.45 | Fig. 1-2. | Fig. 2-2. |
| FTR-B3GA024Z | SMT | 24 | 2504 | 230 | 10.6x7.2x5.45 | Fig. 1-2. | Fig. 2-2. |
| FTR-B3GA024Z-B10 | SMT | 24 | 2504 | 230 | 10.6x7.2x5.45 | Fig. 1-2. | Fig. 2-2. |
| FTR-B3GB003Z | SMT | 3 | 90 | 100 | 10.6x7.2x5.45 | Fig. 1-2. | Fig. 2-2. |
