Relay: electromagnetic; subminiature; Recoy/RAYEX ELECTRONICS

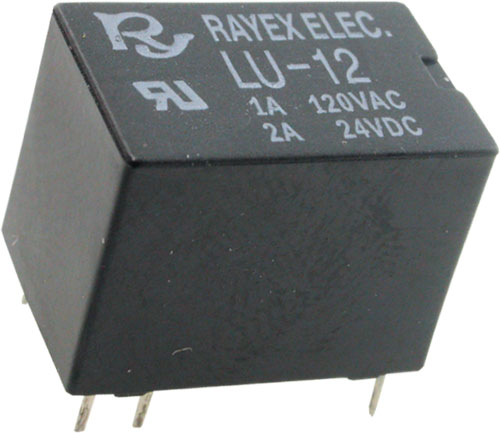

Relay: electromagnetic; subminiature; Recoy/RAYEX ELECTRONICS, LU-12, LU-24, LUZ-5, LUZ-12 |EN|

Manufacturer	Recoy/RAYEX ELECTRONICS
Type of relay	electromagnetic
Variant	subminiature
Contact material	AgNi
Mounting	THT
Contacts configuration	SPDT
Switched voltage	max. 120V AC
Switched voltage	max. 24V DC
Contact resistance	100mΩ
Term. pitch	2.54mm
Operate time	6ms
Release time	3ms
Body dimensions	15.5x10.5x11.5mm
Dimensions	Fig. 1-1.
Operating temperature	-25...40°C
Contact current max.	3A
AC load rating @R*	3A / 120V AC
DC load rating @R*	3A / 24V DC
Manufacturer series	LU

* at resistive load

Symbol	Output configuration	U_coil	R_coil	I_coil
		[V DC]	[Ω]	[mA]
LU-12	Fig. 2-1.	12	720	16.7
LU-24	Fig. 2-1.	24	2.88k	8.3
LUZ-5	Fig. 2-2.	5	125	40
LUZ-12	Fig. 2-2.	12	720	16.7
LUZ-24	Fig. 2-2.	24	2.88k	8.3
