Relay: electromagnetic; TE Connectivity
| Manufacturer | TE Connectivity |
| Type of relay | electromagnetic |
| Mounting | PCB |
| Contact current max. | 8A |
| Switched voltage | max. 400V AC |
| Switched voltage | max. 300V DC |
| AC load rating @R* | 8A / 250V AC |
| DC load rating @R* | 8A / 30V DC |
| Term. pitch | 5mm |
| Body dimensions | 29x12.7x15.7mm |
| Height | 15.7mm |
| Number of pins | 8 |
| Dimensions | Fig. 1-1. |
| Manufacturer series | RT2 |
* at resistive load

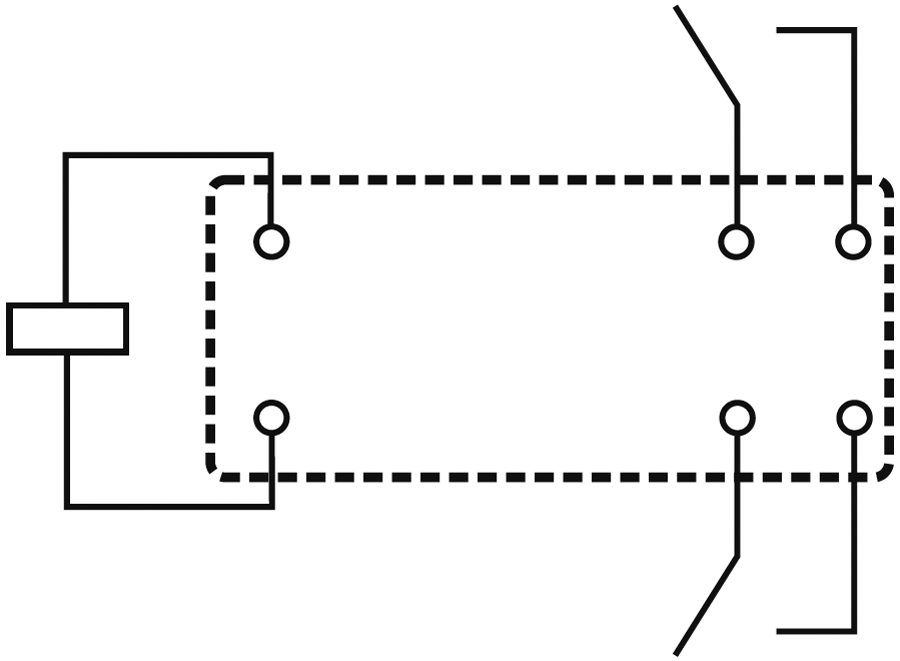

| Symbol | Operate time | Release time | Operating temperature | Variant | Output configuration | Contacts layout | Contact material | IP rating | Ucoil | Rcoil | Ucoil min | Pcoil | Pcoil | Related items |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [ms] | [ms] | [°C] | [Ω] | [mW] | [mVA] | |||||||||
| RT424005 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 5V DC | 62 | 3.5V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424006 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 6V DC | 90 | 4.2V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424009 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 9V DC | 200 | 6.3V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424012 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 12V DC | 360 | 8.4V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424012F | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 12V DC | 360 | 8.4V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424024 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 24V DC | 1.44k | 16.8V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424024F | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 24V DC | 1.44k | 16.8V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424048 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 48V DC | 5.52k | 33.6V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424060 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 60V DC | 8.57k | 42V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424110 | 8 | 6 | -40...85 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 110V DC | 28.8k | 77V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT424524 | 8 | 6 | -40...70 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 24V AC | 350 | 18V AC | - | 750 | RT17017, RT17040, RT78726 |
| RT424548 | 8 | 6 | -40...70 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 48V AC | - | 36V AC | - | 750 | RT17017, RT17040, RT78726 |
| RT424615 | 8 | 6 | -40...70 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 115V AC | 8.1k | 86.3V AC | - | 750 | RT17017, RT17040, RT78726 |
| RT423730 | 8 | 6 | -40...70 | miniature | Fig. 2-1. | DPDT | AgSnO2 | IP40 | 230V AC | 32.5k | 172.5V AC | - | 750 | RT17017, RT17040, RT78726 |
| RT424730 | 8 | 6 | -40...70 | miniature, monostable | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 230V AC | 32.5k | 172.5V AC | - | 750 | RT17017, RT17040, RT78726 |
| RT425012 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP40 | 12V DC | 360 | 8.4V DC | 400 | - | RT17017, RT17040, RT78726 |
| RT444012 | 7 | 2 | -40...70 | miniature | Fig. 2-2. | DPST-NO | AgNi 90/10 | IP40 | 12V DC | 360 | 8.4V DC | 400 | - | - |
| RT444730 | 7 | 2 | -40...70 | miniature | Fig. 2-2. | DPST-NO | AgNi 90/10 | IP40 | 230V AC | 32.5k | 172.5V AC | - | 750 | - |
| RTE24005 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 5V DC | 62 | 3.5V DC | 403 | - | - |
| RTE24012 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 12V DC | 360 | 8.4V DC | 400 | - | - |
| RTE24012F | 8 | 6 | -40...85 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 12V DC | 360 | 8.4V DC | 400 | - | - |
| RTE24024 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 24V DC | 1.44k | 16.8V DC | 400 | - | - |
| RTE24024F | 8 | 6 | -40...85 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 24V DC | 1.44k | 16.8V DC | 400 | - | - |
| RTE24048 | 8 | 6 | -40...85 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 48V DC | 5.52k | 33.6V DC | 417 | - | - |
| RTE24110 | 8 | 6 | -40...85 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 110V DC | 28.8k | 77V DC | 420 | - | - |
| RTE24730 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 230V AC | 32.5k | 172.5V AC | - | 740 | - |
| RTE25012 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 Au | IP67 | 12V DC | 360 | 8.4V DC | 400 | - | - |
| RT425024 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 Au | IP40 | 24V DC | 1.44k | 16.8V DC | 400 | - | - |
| RT425005 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 Au | IP40 | 5V DC | 62 | 3.5V DC | 400 | - | - |
| RT425615 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 Au | IP40 | 115V AC | 8.1k | - | - | 760 | - |
| RT444024 | 7 | 2 | -40...70 | miniature | Fig. 2-2. | DPST-NO | AgNi 90/10 | IP40 | 24V DC | 1.44k | 16.8V DC | 400 | - | - |
| RTE24524 | 7 | 2 | -40...70 | miniature | Fig. 2-1. | DPDT | AgNi 90/10 | IP67 | 24V AC | 350 | 18V AC | - | 750 | - |
