Relay: electromagnetic; TE Connectivity

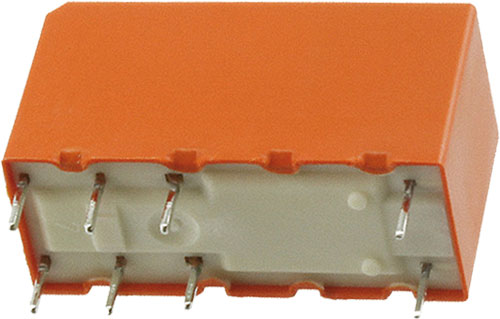

Relay: electromagnetic; TE Connectivity, RZ01-1A4-D012, RZ01-1A4-D024, RZ01-1C4-D012 |EN|
ManufacturerTE Connectivity
Type of relayelectromagnetic
Variantminiature
MountingPCB
Switched voltagemax. 400V AC
Switched voltagemax. 300V DC
Mechanical durability1000000 cycles
Body dimensions29x12.7x15.7mm
Operating temperature-40...85°C
Manufacturer seriesRZ
Symbol Contact material Contacts configuration Ucoil Ucoil min Rcoil Pcoil Icontacts max AC load rating @R* DC load rating @R* Term. pitch Dimensions Output configuration
[V DC] [V DC] [Ω] [mW] [A] [mm]

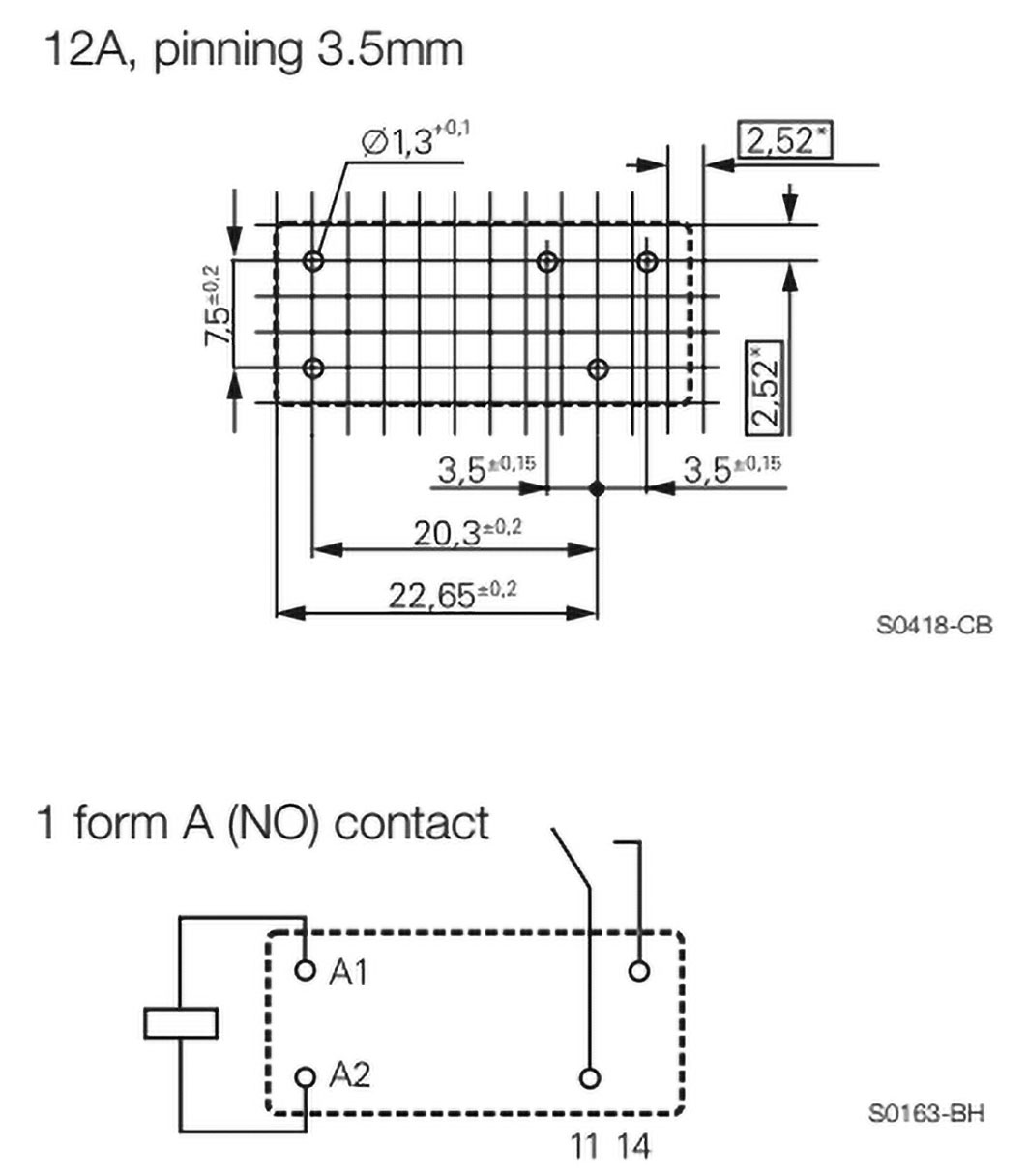

RZ01-1A4-D024 AgNi 90/10 SPST-NO 24 16.8 1.44k 400 12 12A / 250V AC 12A / 24V DC 3.5 Fig. 1-1. Fig. 2-1.
RZ01-1C4-D012 AgNi 90/10 SPDT 12 8.4 360 400 12 12A / 250V AC 12A / 24V DC 3.5 Fig. 1-1. Fig. 2-2.
RZ01-1C4-D024 AgNi 90/10 SPDT 24 16.8 1.44k 400 12 12A / 250V AC 12A / 24V DC 3.5 Fig. 1-1. Fig. 2-2.
RZ03-1A3-D012 AgNi 90/10 SPST-NO 12 8.4 360 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-3.
RZ03-1A4-D005 AgNi 90/10 SPST-NO 5 3.5 60 420 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-3.
RZ03-1A4-D012 AgNi 90/10 SPST-NO 12 8.4 360 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-3.
RZ03-1A4-D024 AgNi 90/10 SPST-NO 24 16.8 1.44k 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-3.
RZ03-1A4-D048 AgNi 90/10 SPST-NO 48 33.5 5.73k 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-3.
RZ03-1C3-D024 AgSnO2 SPDT 24 16.8 1.44k 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-4.
RZ03-1C4-D005 AgNi 90/10 SPDT 5 3.5 60 420 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-4.
RZ03-1C4-D009 AgNi 90/10 SPDT 9 6.3 200 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-4.
RZ03-1C4-D012 AgNi 90/10 SPDT 12 8.4 360 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-4.
RZ03-1C4-D024 AgNi 90/10 SPDT 24 16.8 1.44k 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-4.
RZ03-1C4-D048 AgNi 90/10 SPDT 48 33.5 5.73k 400 16 16A / 250V AC 16A / 24V DC 5 Fig. 1-2. Fig. 2-4.
* at resistive load
