Relay: reed switch; Case: DIP14; MEDER

Can cooperate with TTL ICs

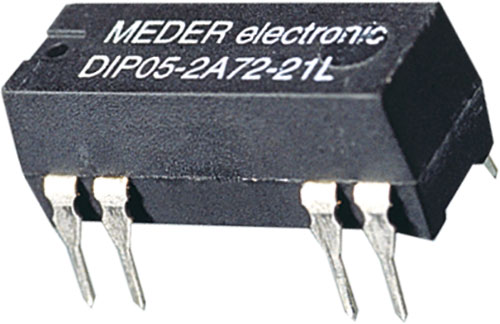

Relay: reed switch; Case: DIP14; MEDER, DIP05-1A72-12L, DIP05-1A72-12D, DIP05-1A72-12A |EN|

Manufacturer	MEDER
Type of relay	reed switch
Case	DIP14
Mounting	PCB
Contact resistance	150mΩ
Term. pitch	2.54mm
Operating temperature	-20...70°C

Symbol	Contacts layout	U_coil	U_coil min	U_coil max	R_coil	P_coil	I_contacts max	U_switch.	U_switch.
		[V DC]	[V DC]	[V DC]	[Ω]	[mW]	[A]	[V AC]	[V DC]
DIP05-1A72-12L	SPST-NO	5	3.5	7.5	500	50	1	max. 200	max. 200
DIP05-1A72-12D	SPST-NO	5	3.5	7.5	500	50	1	max. 200	max. 200
DIP05-1A72-12A	SPST-NO	5	3.5	7.5	500	50	1	max. 200	max. 200
DIP05-2A72-21L	DPST-NO	5	3.5	7.5	200	125	1	max. 200	max. 200
DIP05-2A72-21D	DPST-NO	5	3.5	7.5	200	125	1	max. 200	max. 200
DIP05-1B72-19L	SPST-NC	5	3.5	7.5	500	50	1	max. 200	max. 200
DIP05-1B72-19D	SPST-NC	5	3.5	7.5	500	50	1	max. 200	max. 200
DIP05-1C90-51L	SPDT	5	3.5	7.5	200	125	0.5	max. 100	max. 100
DIP05-1C90-51D	SPDT	5	3.5	7.5	200	125	0.5	max. 100	max. 100
DIP05-1C90-BV704	SPDT	5	3.5	7.5	200	125	0.25	max. 175	max. 175
DIP12-1A72-12L	SPST-NO	12	8.4	16	1k	145	1	max. 200	max. 200
DIP12-1A72-12D	SPST-NO	12	8.4	16	1k	145	1	max. 200	max. 200
DIP12-1A72-12A	SPST-NO	12	8.4	16	1k	145	1	max. 200	max. 200
DIP12-1A72-12M	SPST-NO	12	8.4	16	1k	145	1	max. 200	max. 200
DIP12-2A72-21D	DPST-NO	12	8.4	16	500	290	1	max. 200	max. 200
DIP12-1B72-19D	SPST-NC	12	8.4	16	1k	145	1	max. 200	max. 200
DIP12-1B72-19L	SPST-NC	12	8.4	16	1k	145	1	max. 200	max. 200
DIP12-1B72-19M	SPST-NC	12	8.4	16	1k	145	1	max. 200	max. 200
DIP12-1C90-51D	SPDT	12	8.4	16	500	290	0.5	max. 100	max. 100
DIP24-1A72-12L	SPST-NO	24	16.8	30	2k	290	1	max. 200	max. 200
DIP24-1A72-12D	SPST-NO	24	16.8	30	2k	290	1	max. 200	max. 200
DIP24-2A72-21L	DPST-NO	24	16.8	30	2k	290	1	max. 200	max. 200
DIP24-2A72-21D	DPST-NO	24	16.8	30	2k	290	1	max. 200	max. 200
DIP24-1B72-19L	SPST-NC	24	16.8	30	2k	290	1	max. 200	max. 200
DIP24-1B72-19D	SPST-NC	24	16.8	30	2k	290	1	max. 200	max. 200
DIP24-1C90-51L	SPDT	24	16.8	30	2k	290	0.5	max. 100	max. 100
DIP24-1C90-51D	SPDT	24	16.8	30	2k	290	0.5	max. 100	max. 100

Symbol	Soldering temperature	Body dimensions	Schematic diagram	Output configuration	Dimensions	Manufacturer series
		[mm]

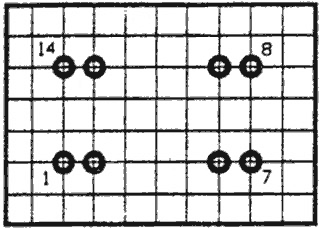

DIP05-1A72-12L	260°C	19.3x5.1x6.4	Fig. 1-1.	Fig. 2-1.	Fig. 3-1.	DIP

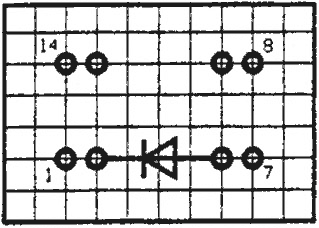

DIP05-1A72-12D	260°C	19.3x7.5x7	Fig. 1-1.	Fig. 2-2.	Fig. 3-2.	DIP

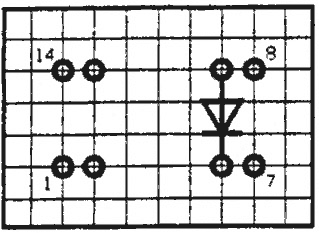

DIP05-1A72-12A	260°C	19.3x5.1x6.4	Fig. 1-1.	Fig. 2-3.	Fig. 3-1.	DIP
DIP05-2A72-21L	260°C	19.3x7.5x7	Fig. 1-2.	Fig. 2-1.	Fig. 3-2.	DIP
DIP05-2A72-21D	260°C	19.3x7.5x7	Fig. 1-2.	Fig. 2-2.	Fig. 3-2.	DIP
DIP05-1B72-19L	260°C	19.3x7.5x7	Fig. 1-3.	Fig. 2-1.	Fig. 3-2.	DIP
DIP05-1B72-19D	260°C	19.3x7.5x7	Fig. 1-3.	Fig. 2-2.	Fig. 3-2.	DIP
DIP05-1C90-51L	260°C	19.3x5.1x6.4	Fig. 1-4.	Fig. 2-1.	Fig. 3-1.	DIP
DIP05-1C90-51D	260°C	19.3x7.5x7	Fig. 1-4.	Fig. 2-2.	Fig. 3-2.	DIP

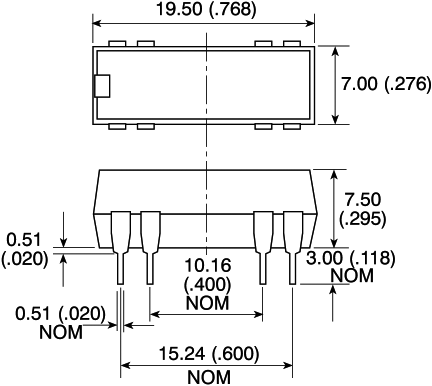

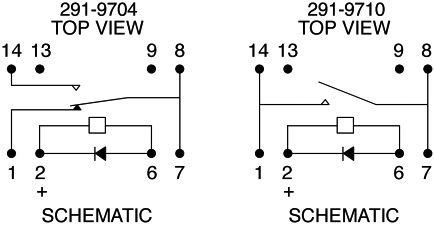

DIP05-1C90-BV704	260°C	19.5x7.5x7	-	Fig. 2-4.	Fig. 3-3.	-
DIP12-1A72-12L	260°C	19.3x5.1x6.4	Fig. 1-1.	Fig. 2-1.	Fig. 3-1.	DIP
DIP12-1A72-12D	260°C	19.3x7.5x7	Fig. 1-1.	Fig. 2-2.	Fig. 3-2.	DIP
DIP12-1A72-12A	260°C	19.3x5.1x6.4	Fig. 1-1.	Fig. 2-3.	Fig. 3-1.	DIP

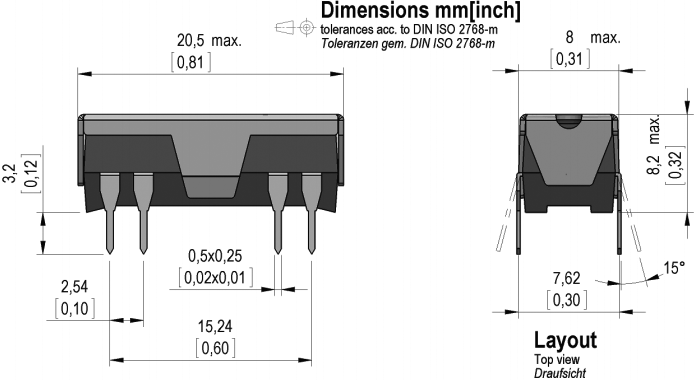

DIP12-1A72-12M	260°C	20.5x8.2x8	Fig. 1-1.	-	Fig. 3-4.	-
DIP12-2A72-21D	260°C	19.3x7.5x7	Fig. 1-2.	Fig. 2-2.	Fig. 3-2.	DIP
DIP12-1B72-19D	260°C	19.3x7.5x7	Fig. 1-3.	Fig. 2-2.	Fig. 3-2.	DIP
DIP12-1B72-19L	260°C	19.3x7.5x7	Fig. 1-3.	Fig. 2-1.	Fig. 3-2.	DIP
DIP12-1B72-19M	260°C	19.9x7.6x7.8	Fig. 1-3.	Fig. 2-1.	Fig. 3-5.	-
DIP12-1C90-51D	260°C	19.3x7.5x7	Fig. 1-4.	Fig. 2-2.	Fig. 3-2.	DIP
DIP24-1A72-12L	260°C	19.3x5.1x6.4	Fig. 1-1.	Fig. 2-1.	Fig. 3-1.	DIP
DIP24-1A72-12D	260°C	19.3x7.5x7	Fig. 1-1.	Fig. 2-2.	Fig. 3-2.	DIP
DIP24-2A72-21L	260°C	19.3x7.5x7	Fig. 1-2.	Fig. 2-1.	Fig. 3-2.	DIP
DIP24-2A72-21D	260°C	19.3x7.5x7	Fig. 1-2.	Fig. 2-2.	Fig. 3-2.	DIP
DIP24-1B72-19L	260°C	19.3x7.5x7	Fig. 1-3.	Fig. 2-1.	Fig. 3-2.	DIP

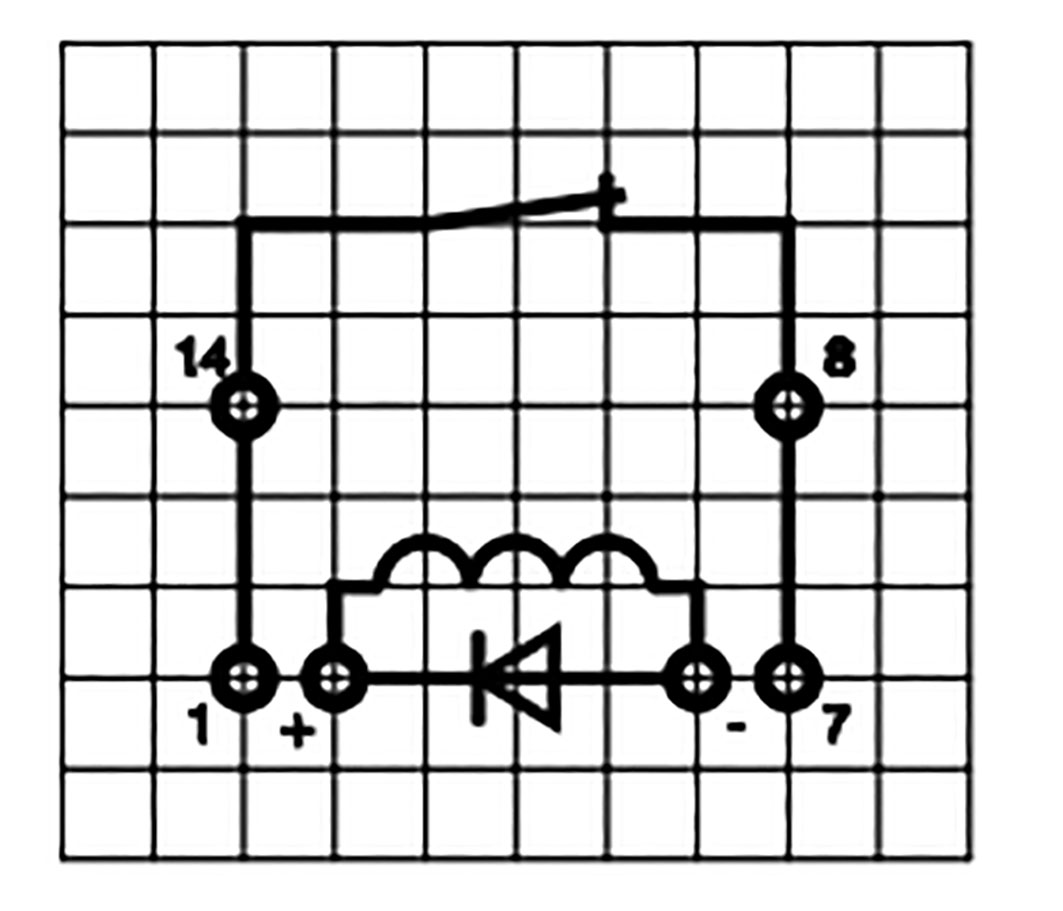

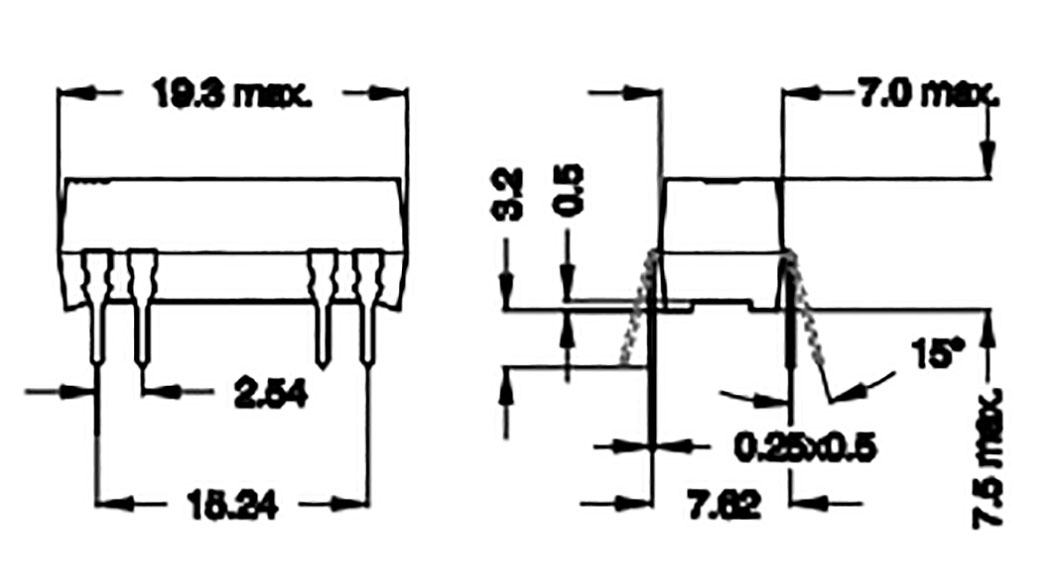

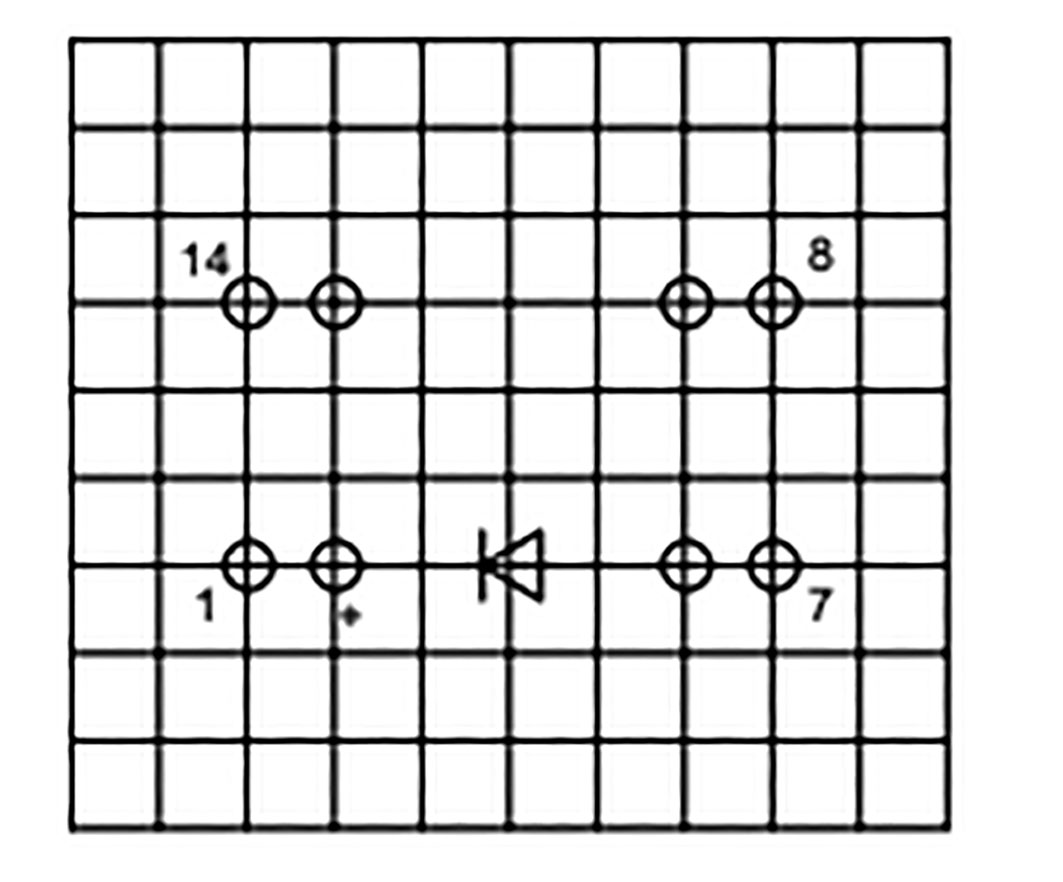

DIP24-1B72-19D	260°C	19.3x7.5x7	Fig. 1-5.	Fig. 2-5.	Fig. 3-6.	DIP
DIP24-1C90-51L	260°C	19.3x5.1x6.4	Fig. 1-4.	Fig. 2-1.	Fig. 3-1.	DIP
DIP24-1C90-51D	260°C	19.3x7.5x7	Fig. 1-4.	Fig. 2-2.	Fig. 3-2.	DIP
