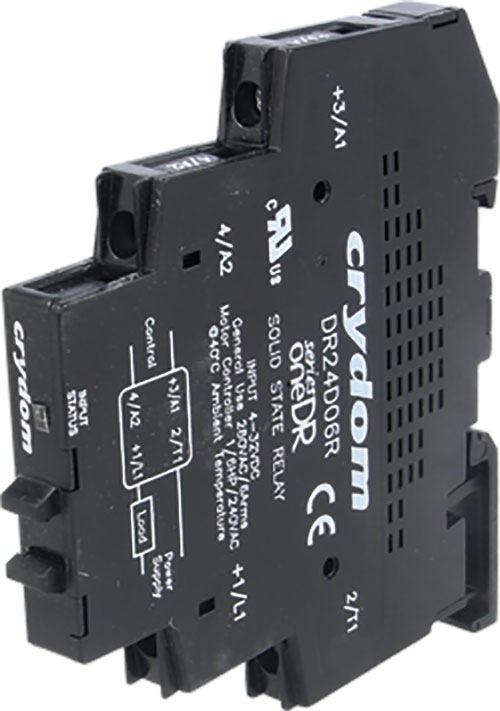

Relay: solid state; 1-phase; for DIN rail mounting; SENSATA / CRYDOM
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Variant | 1-phase |
| Mounting | for DIN rail mounting |
| Operating temperature | -30...80°C |
| IP rating | IP00 |
| Manufacturer series | SeriesOne DR |
| Symbol | Ioper. max | Ucntrl | Uswitch. |
|---|---|---|---|
| [A] | [V AC] | ||
| DR24D03 | 3 | 4...32V DC | 24...280 |
| DR24D06 | 6 | 4...32V DC | 24...280 |
| DR24D12 | 12 | 4...32V DC | 24...280 |
| DR24A03 | 3 | 200...280V AC | 24...280 |
| DR24A06 | 6 | 200...280V AC | 24...280 |
| DR24A12 | 12 | 200...280V AC | 24...280 |
| DR24D03R | 3 | 4...32V DC | 24...280 |
| DR24D06R | 6 | 4...32V DC | 24...280 |
| DR24D12R | 12 | 4...32V DC | 24...280 |
| DR48A12 | 12 | 200...280V AC | 48...600 |
| DR48D03 | 3 | 4...32V DC | 48...600 |
| DR48D06 | 6 | 4...32V DC | 48...600 |
| DR48D12 | 12 | 4...32V DC | 48...600 |
| DR48D03R | 3 | 4...32V DC | 48...600 |
| DR48D12R | 12 | 4...32V DC | 48...600 |
| DR24A03R | 3 | 200...265V AC | 24...280 |
| DR24A03X | 3 | 200...265V AC | 24...280 |
| DR24A03XR | 3 | 200...265V AC | 24...280 |
| DR24A06R | 6 | 200...265V AC | 24...280 |
| DR24A06X | 6 | 200...265V AC | 24...280 |
| DR24A06XR | 6 | 200...265V AC | 24...280 |
| DR24A12R | 12 | 200...265V AC | 24...280 |
| DR24A12X | 12 | 200...265V AC | 24...280 |
| DR24A12XR | 12 | 200...265V AC | 24...280 |
| DR24B03 | 3 | 90...140V AC | 24...280 |
| DR24B03R | 3 | 90...140V AC | 24...280 |
| DR24B03X | 3 | 90...140V AC | 24...280 |
| DR24B03XR | 3 | 90...140V AC | 24...280 |
| DR24B06 | 6 | 90...140V AC | 24...280 |
| DR24B06X | 6 | 90...140V AC | 24...280 |
| DR24B12 | 12 | 90...140V AC | 24...280 |
| DR24B12R | 12 | 90...140V AC | 24...280 |
| DR24B12X | 12 | 90...140V AC | 24...280 |
| DR24B12XR | 12 | 90...140V AC | 24...280 |
| DR24D03X | 3 | 4...32V DC | 24...280 |
| DR24D03XR | 3 | 4...32V DC | 24...280 |
| DR24D06X | 6 | 4...32V DC | 24...280 |
| DR24D06XR | 6 | 4...32V DC | 24...280 |
| DR24D12X | 12 | 4...32V DC | 24...280 |
| DR24D12XR | 12 | 4...32V DC | 24...280 |
| DR24E03 | 3 | 18...36V AC | 24...280 |
| DR24E03R | 3 | 18...36V AC | 24...280 |
| DR24E03X | 3 | 18...36V AC | 24...280 |
| DR24E03XR | 3 | 18...36V AC | 24...280 |
| DR24E06 | 6 | 18...36V AC | 24...280 |
| DR24E06X | 6 | 18...36V AC | 24...280 |
| DR24E12 | 12 | 18...36V AC | 24...280 |
| DR24E12X | 12 | 18...36V AC | 24...280 |
| DR48A12X | 12 | 200...265V AC | 48...600 |
| DR48B12 | 12 | 90...140V AC | 48...600 |
| DR48B12X | 12 | 90...140V AC | 48...600 |
| DR48D03X | 3 | 4...32V DC | 48...600 |
| DR48D03XR | 3 | 4...32V DC | 48...600 |
| DR48D06X | 6 | 4...32V DC | 48...600 |
| DR48D06XR | 6 | 4...32V DC | 48...600 |
| DR48D12X | 12 | 4...32V DC | 48...600 |
| DR48D12XR | 12 | 4...32V DC | 48...600 |
| DR48E12 | 12 | 18...36V AC | 48...600 |
| DR48E12X | 12 | 18...36V AC | 48...600 |
| Symbol | Switch. method* | Body dimensions | Dimensions | Conform to the norm |
|---|---|---|---|---|
| [mm] | ||||

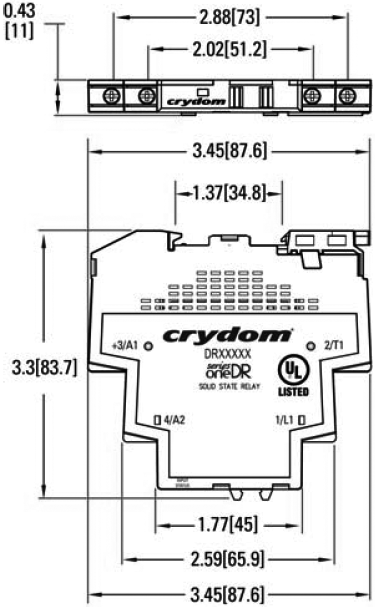

| DR24D03 | zero voltage switching | 87.6x11x83.7 | Fig. 1. | - |
| DR24D06 | zero voltage switching | 87.6x11x83.7 | Fig. 1. | - |

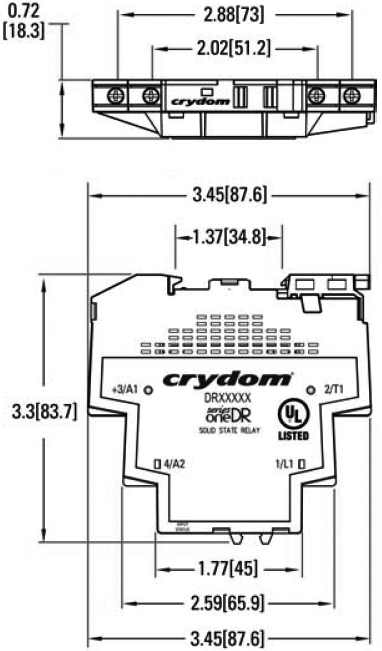

| DR24D12 | zero voltage switching | 87.6x18.3x83.7 | Fig. 2. | - |
| DR24A03 | zero voltage switching | 87.6x11x83.7 | Fig. 1. | - |
| DR24A06 | zero voltage switching | 87.6x11x83.7 | Fig. 1. | - |
| DR24A12 | zero voltage switching | 87.6x18.3x83.7 | Fig. 2. | - |
| DR24D03R | instantaneous switching | 87.6x11x83.7 | Fig. 1. | - |
| DR24D06R | instantaneous switching | 87.6x11x83.7 | Fig. 1. | - |
| DR24D12R | instantaneous switching | 87.6x18.3x83.7 | Fig. 2. | - |
| DR48A12 | zero voltage switching | 87.6x18.3x83.7 | Fig. 2. | - |
| DR48D03 | zero voltage switching | 87.6x11x83.7 | Fig. 1. | - |
| DR48D06 | zero voltage switching | 87.6x11x83.7 | Fig. 1. | - |
| DR48D12 | zero voltage switching | 87.6x18.3x83.7 | Fig. 2. | - |
| DR48D03R | instantaneous switching | 87.6x11x83.7 | Fig. 1. | - |
| DR48D12R | instantaneous switching | 87.6x18.3x83.7 | Fig. 2. | - |
| DR24A03R | instantaneous switching | 87.6x11x83.7 | - | - |
| DR24A03X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24A03XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24A06R | instantaneous switching | 87.6x11x83.7 | - | - |
| DR24A06X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24A06XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24A12R | instantaneous switching | 87.6x18.3x83.7 | - | - |
| DR24A12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24A12XR | instantaneous switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24B03 | zero voltage switching | 87.6x11x83.7 | - | - |
| DR24B03R | instantaneous switching | 87.6x11x83.7 | - | - |
| DR24B03X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24B03XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24B06 | zero voltage switching | 87.6x11x83.7 | - | - |
| DR24B06X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24B12 | zero voltage switching | 87.6x18.3x83.7 | - | - |
| DR24B12R | instantaneous switching | 87.6x18.3x83.7 | - | - |
| DR24B12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24B12XR | instantaneous switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24D03X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24D03XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24D06X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24D06XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24D12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24D12XR | instantaneous switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24E03 | zero voltage switching | 87.6x11x83.7 | - | - |
| DR24E03R | instantaneous switching | 87.6x11x83.7 | - | - |
| DR24E03X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24E03XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24E06 | zero voltage switching | 87.6x11x83.7 | - | - |
| DR24E06X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR24E12 | zero voltage switching | 87.6x18.3x83.7 | - | - |
| DR24E12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48A12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48B12 | zero voltage switching | 87.6x18.3x83.7 | - | - |
| DR48B12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48D03X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48D03XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48D06X | zero voltage switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48D06XR | instantaneous switching | 87.6x11x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48D12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48D12XR | instantaneous switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
| DR48E12 | zero voltage switching | 87.6x18.3x83.7 | - | - |
| DR48E12X | zero voltage switching | 87.6x18.3x83.7 | - | ATEX II 3G Ex nA IIC T4 Gc |
* the position in bracket indicates momentary position.
