Relay: solid state; 1-phase; PANASONIC

Manufacturer	PANASONIC
Type of relay	solid state
Variant	1-phase

Symbol	Electrical connection	Mounting	U_cntrl	I_cntrl	I_oper. max	U_switch.
			[V DC]	[mA]	[A]	[V AC]
AQA411VL	terminal block	on panel, for DIN rail mounting	4...32	20	25	75...250
AQA421VL	terminal block	on panel, for DIN rail mounting	4...32	20	25	75...250
AQA611VL	terminal block	on panel, for DIN rail mounting	4...32	20	40	75...250
AQG22105	-	PCB, THT	4...6	-	2	75...264
AQG22124	-	PCB, THT	19.2...28.8	-	2	75...264
AQG22205	-	PCB, THT	4...6	-	2	75...264
AQG22212	-	PCB, THT	9.6...14.4	-	2	75...264
AQH1213	-	PCB, THT	6	50	600m	max. 600
AQH2213	-	PCB, THT	6	50	900m	max. 600
AQH3213	-	PCB, THT	6	50	1.2	max. 600
AQH3223	-	PCB, THT	6	50	1.2	max. 600
AQH3223A	-	PCB, SMT	6	50	1.2	max. 600

Switch. method*:

instantaneous switching (AQA421VL, AQG22205, AQG22212, AQH3223, AQH3223A)
zero voltage switching (AQA411VL, AQA611VL, AQG22105, AQG22124, AQHx213)

Body dim.:

9.78x6.4x3.4mm (AQHxxx)
24.5x20.5x4.5mm (AQG22xxx)
40x58x25.2mm (AQAxx1VL)

Operating temperature:

-30...80°C (AQG22xxx)
-30...85°C (AQHxxx)
-20...80°C (AQAxx1VL)

Dimensions:

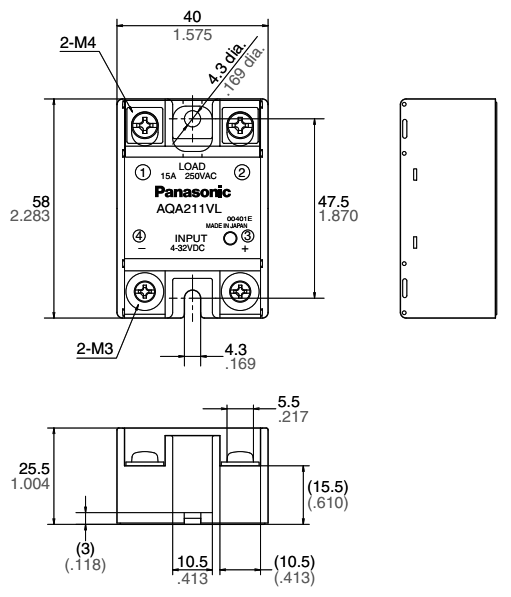

Fig. 1-1. (AQAxx1VL)

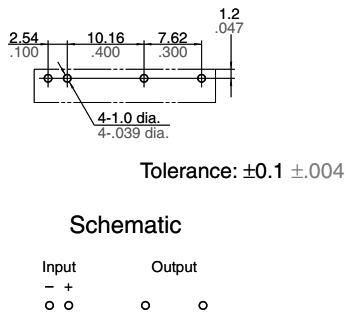

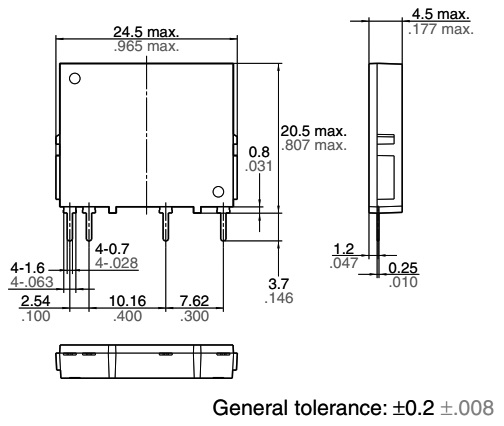

Fig. 1-2. (AQG22xxx)

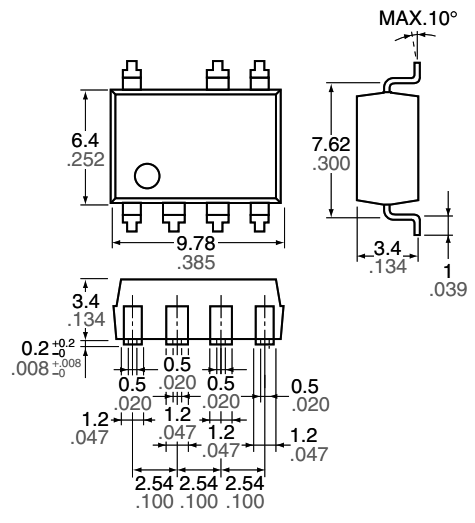

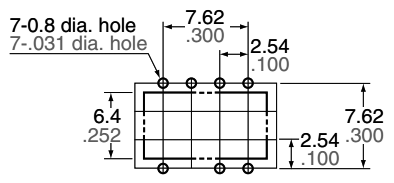

Fig. 1-3. (AQHxxx3)

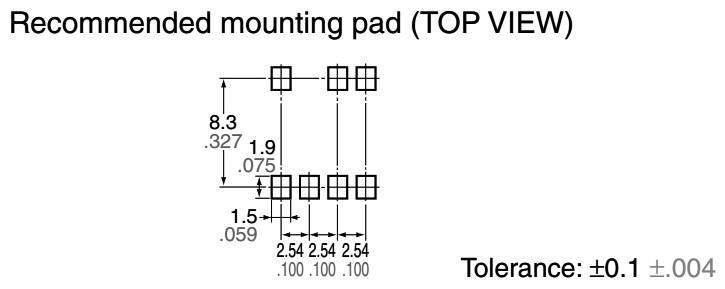

Fig. 1-4. (AQH3223A)

Output configuration:

Fig. 2-1. (AQG22xxx)
Fig. 2-2. (AQHxxx3)
Fig. 2-3. (AQH3223A)

Manufacturer series:

AQ-A (AQAxx1VL)
AQ-G (AQG22xxx)
AQ-H (AQHxxx)

* the position in bracket indicates momentary position.
