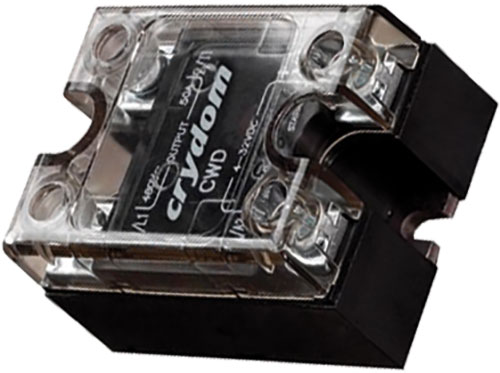

Relay: solid state; 1-phase; SENSATA / CRYDOM
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Variant | 1-phase |
| Mounting | screw type |
| Body dimensions | 58.8x44.5x30.9mm |
| IP rating | IP20 |
| Indication | LED |
| Caution! | Maximal load current with use of suitable heatsink |
| Manufacturer series | CW48 |
| Symbol | Features | Operating temperature | Ioper. max | Ucntrl | Uswitch. | Switch. method* | Protection |
|---|---|---|---|---|---|---|---|
| [°C] | [A] | [V AC] | |||||
| CWD4810 | - | -40...80 | 10 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD4810-10 | - | -40...80 | 10 | 4...32V DC | 48...660 | instantaneous switching | - |
| CWD4825 | - | -40...80 | 25 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD4825-10 | - | -40...80 | 25 | 4...32V DC | 48...660 | instantaneous switching | - |
| CWD4850 | - | -40...80 | 50 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD4850P | - | -40...80 | 50 | 4...32V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWD4850-10 | - | -40...80 | 50 | 4...32V DC | 48...660 | instantaneous switching | - |
| CWD4890 | - | -40...80 | 90 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD4890-10 | - | -40...80 | 90 | 4...32V DC | 48...660 | instantaneous switching | - |
| CWD48125 | - | -40...80 | 125 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD48125-10 | - | -40...80 | 125 | 4...32V DC | 48...660 | instantaneous switching | - |
| CWA4810 | - | -20...80 | 10 | 90...280V AC | 48...660 | zero voltage switching | - |
| CWA4810-10 | - | -20...80 | 10 | 90...280V AC | 48...660 | instantaneous switching | - |
| CWA4810E | - | -20...80 | 10 | 18...36V AC | 48...660 | zero voltage switching | - |
| CWA4810P | - | -20...80 | 10 | 90...280V AC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWA48125 | - | -20...80 | 125 | 90...280V AC | 48...660 | zero voltage switching | - |
| CWA48125-10 | - | -20...80 | 125 | 90...280V AC | 48...660 | instantaneous switching | - |
| CWA48125E | - | -20...80 | 125 | 18...36V AC | 48...660 | zero voltage switching | - |
| CWA48125E-10 | - | -20...80 | 125 | 18...36V AC | 48...660 | instantaneous switching | - |
| CWA48125P | - | -20...80 | 125 | 90...280V AC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWA4825 | - | -20...80 | 25 | 90...280V AC | 48...660 | zero voltage switching | - |
| CWA4825-10 | - | -20...80 | 25 | 90...280V AC | 48...660 | instantaneous switching | - |
| CWA4825E | - | -20...80 | 25 | 18...36V AC | 48...660 | zero voltage switching | - |
| CWA4825P | - | -20...80 | 25 | 90...280V AC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWA4850 | - | -20...80 | 50 | 90...280V AC | 48...660 | zero voltage switching | - |
| CWA4850-10 | - | -20...80 | 50 | 90...280V AC | 48...660 | instantaneous switching | - |
| CWA4850E | - | -20...80 | 50 | 18...36V AC | 48...660 | zero voltage switching | - |
| CWA4850H | thermal pad included | -20...80 | 50 | 90...280V AC | 48...660 | zero voltage switching | - |
| CWA4850P | - | -20...80 | 50 | 90...280V AC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWA4890 | - | -20...80 | 90 | 90...280V AC | 48...660 | zero voltage switching | - |
| CWA4890-10 | - | -20...80 | 90 | 90...280V AC | 48...660 | instantaneous switching | - |
| CWA4890E | - | -20...80 | 90 | 18...36V AC | 48...660 | zero voltage switching | - |
| CWA4890H | thermal pad included | -20...80 | 90 | 90...280V AC | 48...660 | zero voltage switching | - |
| CWA4890P | - | -20...80 | 90 | 90...280V AC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWD4810P | - | -40...80 | 10 | 4...32V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWD48125P | - | -40...80 | 125 | 4...32V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWD48125P-10 | - | -40...80 | 125 | 4...32V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
| CWD4825H | thermal pad included | -40...80 | 25 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD4825P | - | -40...80 | 25 | 4...32V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWD4825P-10 | - | -40...80 | 25 | 4...32V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
| CWD4850H | thermal pad included | -40...80 | 50 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD4850P-10 | - | -40...80 | 50 | 4...32V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
| CWD4850PH | thermal pad included | -40...80 | 50 | 4...32V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWD4890H | thermal pad included | -40...80 | 90 | 4...32V DC | 48...660 | zero voltage switching | - |
| CWD4890P | - | -40...80 | 90 | 4...32V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWD4890PH | thermal pad included | -40...80 | 90 | 4...32V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWU4810 | - | -20...80 | 10 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | - |
| CWU4810-10 | - | -20...80 | 10 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | - |
| CWU4810P | - | -20...80 | 10 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWU4810P-10 | - | -20...80 | 10 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
| CWU48125 | - | -20...80 | 125 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | - |
| CWU48125-10 | - | -20...80 | 125 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | - |
| CWU48125P | - | -20...80 | 125 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWU48125P-10 | - | -20...80 | 125 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
| CWU4825 | - | -20...80 | 25 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | - |
| CWU4825-10 | - | -20...80 | 25 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | - |
| CWU4825P | - | -20...80 | 25 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWU4825P-10 | - | -20...80 | 25 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
| CWU4850 | - | -20...80 | 50 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | - |
| CWU4850-10 | - | -20...80 | 50 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | - |
| CWU4850P | - | -20...80 | 50 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWU4850P-10 | - | -20...80 | 50 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
| CWU4890 | - | -20...80 | 90 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | - |
| CWU4890-10 | - | -20...80 | 90 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | - |
| CWU4890P | - | -20...80 | 90 | 20...280V AC, 20...48V DC | 48...660 | zero voltage switching | anti-overvoltage OVP |
| CWU4890P-10 | - | -20...80 | 90 | 20...280V AC, 20...48V DC | 48...660 | instantaneous switching | anti-overvoltage OVP |
* the position in bracket indicates momentary position.
