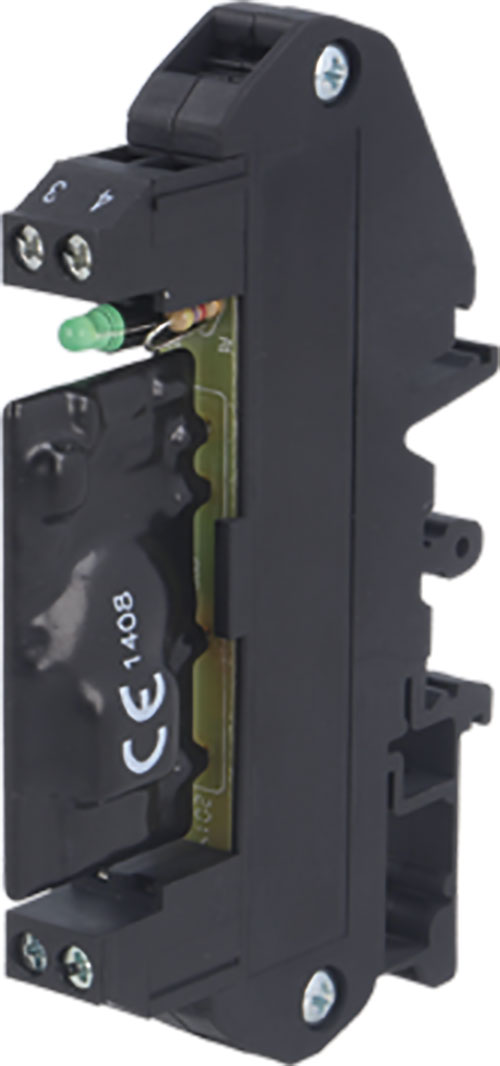

Relay: solid state; current source; SENSATA / CRYDOM
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Variant | current source |
| Mounting | for DIN rail mounting |
| Operating temperature | -30...80°C |
| IP rating | IP00 |
| Manufacturer series | DRA1-CMX |
| Symbol | Body dimensions | Dimensions | Ioper. max | Ucntrl | Uswitch. | Switch. method* | Rds(on) | ton/off | toff |
|---|---|---|---|---|---|---|---|---|---|
| [mm] | [A] | [V DC] | [V DC] | [mΩ] | [ms] | [ms] | |||

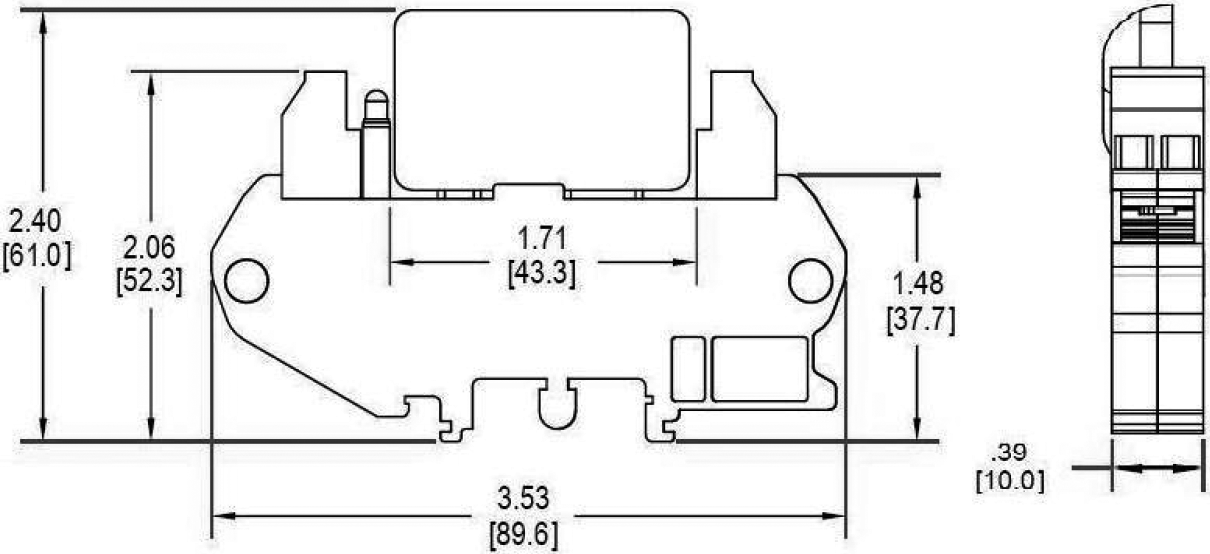

| DRA1-CMX60D5 | 89.6x10x61 | Fig. 1. | 5 | 3...10 | 1...60 | instantaneous switching | - | - | - |
| DRA1-CMX60D10 | 89.6x10x61 | Fig. 1. | 10 | 3...10 | 1...60 | instantaneous switching | - | - | - |
| DRA1-CMX100D6 | 89.6x10x61 | Fig. 1. | 6 | 3...10 | 1...100 | instantaneous switching | - | - | - |
| DRA1-CMX100D10 | 89.6x10x61 | Fig. 1. | 10 | 3...10 | 1...100 | instantaneous switching | - | - | - |
| DRA1-CMX200D3 | 89.6x10x61 | Fig. 1. | 3 | 3...10 | 1...200 | instantaneous switching | - | - | - |
| DRA1-CMXE60D5 | 89.6x10x61 | Fig. 1. | 5 | 20...28 | 1...60 | instantaneous switching | - | - | - |
| DRA1-CMXE100D6 | 89.6x10x61 | Fig. 1. | 6 | 20...28 | 1...100 | instantaneous switching | - | - | - |
| DRA1-CMXE100D10 | 89.6x10x61 | Fig. 1. | 10 | 20...28 | 1...100 | instantaneous switching | - | - | - |
| DRA1-CMXE200D3 | 89.6x10x61 | Fig. 1. | 3 | 20...28 | 1...200 | instantaneous switching | - | - | - |

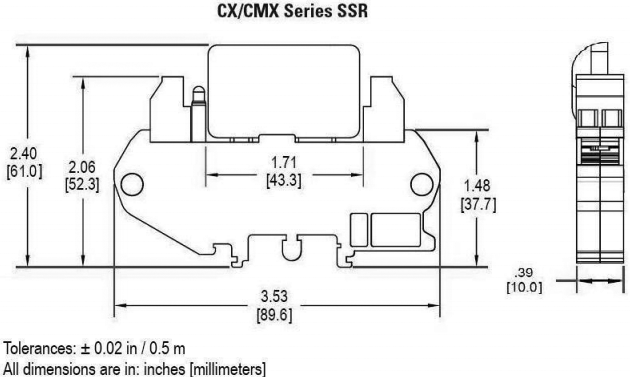

| DRA1-CMXE60D10 | 89.6x61x10 | Fig. 2. | 5 | 20...28 | 1...60 | instantaneous switching | 100 | 1 | 0.3 |
* the position in bracket indicates momentary position.
