Relay: solid state; Manufacturer: OMRON
| Manufacturer | OMRON |
| Type of relay | solid state |
| Symbol | Variant | Operating temperature | Mounting | Design | Ioper. max | Ucntrl | Uswitch. | Switch. method* | Body dim. | Manufacturer series |
|---|---|---|---|---|---|---|---|---|---|---|
| [°C] | [A] | [V AC] | [mm] | |||||||

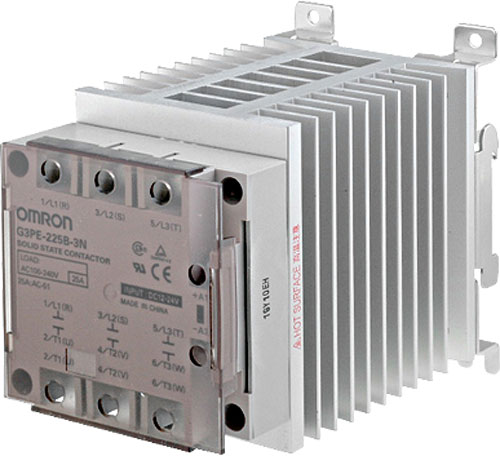

| G3PE215B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 15 | 12...24V DC | 100...240 | zero voltage switching | 100x80x155 | G3PE |
| G3PE225B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 25 | 12...24V DC | 100...240 | zero voltage switching | 120x80x155 | G3PE |
| G3PE235B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 35 | 12...24V DC | 100...240 | zero voltage switching | 140x80x155 | G3PE |
| G3PE245B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 45 | 12...24V DC | 100...240 | zero voltage switching | 140x110x155 | G3PE |
| G3PE515B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 15 | 12...24V DC | 200...480 | zero voltage switching | 100x80x155 | G3PE |
| G3PE525B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 25 | 12...24V DC | 200...480 | zero voltage switching | 120x80x155 | G3PE |
| G3PE535B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 35 | 12...24V DC | 200...480 | zero voltage switching | 140x80x155 | G3PE |
| G3PE545B3N1224 | 3-phase | -30...80 | on panel, for DIN rail mounting | heatsink | 45 | 12...24V DC | 200...480 | zero voltage switching | 140x110x155 | G3PE |
| G3PE215B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 15 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE215B3H1224 | 3-phase | -30...80 | - | - | 15 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE225B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 25 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE225B3H1224 | 3-phase | -30...80 | - | - | 25 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE235B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 35 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE235B3H1224 | 3-phase | -30...80 | - | - | 35 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE245B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 45 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE245B3H1224 | 3-phase | -30...80 | - | - | 45 | 12...24V DC | 100...240 | zero voltage switching | - | G3PE |
| G3PE515B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 15 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PE515B3H1224 | 3-phase | -30...80 | - | - | 15 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PE525B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 25 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PE525B3H1224 | 3-phase | -30...80 | - | - | 25 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PE535B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 35 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PE535B3H1224 | 3-phase | -30...80 | - | - | 35 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PE545B3DC1224 | 3-phase | -30...80 | screw type | heatsink | 45 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PE545B3H1224 | 3-phase | -30...80 | - | - | 45 | 12...24V DC | 200...480 | zero voltage switching | - | G3PE |
| G3PF-225B-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 25 | 24V DC | 100...240 | - | - | G3PF |
| G3PF-225B-CTB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 25 | 24V DC | 100...240 | - | - | G3PF |
| G3PF-225B-STB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 25 | 24V DC | 100...240 | - | - | G3PF |
| G3PF-235B-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 35 | 24V DC | 100...240 | - | - | G3PF |
| G3PF-235B-CTB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 35 | 24V DC | 100...240 | - | - | G3PF |
| G3PF-235B-STB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 35 | 24V DC | 100...240 | - | - | G3PF |
| G3PF-525B-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 25 | 24V DC | 200...480 | - | - | G3PF |
| G3PF-525B-CTB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 25 | 24V DC | 200...480 | - | - | G3PF |
| G3PF-525B-STB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 25 | 24V DC | 200...480 | - | - | G3PF |
| G3PF-535B-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 35 | 24V DC | 200...480 | - | - | G3PF |
| G3PF-535B-CTB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 35 | 24V DC | 200...480 | - | - | G3PF |
| G3PF-535B-STB-24DC | 1-phase | -20...60 | for DIN rail mounting | heatsink | 35 | 24V DC | 200...480 | - | - | G3PF |
| G3PH-2075B-240AC | 1-phase | -30...80 | screw type | heatsink | 75 | 100...240V AC | 100...240 | zero voltage switching | - | G3PH |
| G3PH-2075B-5-24 | 1-phase | -30...80 | screw type | heatsink | 75 | 5...24V DC | 100...240 | zero voltage switching | - | G3PH |
| G3PH-2075BL-5-24 | 1-phase | -30...80 | screw type | heatsink | 75 | 5...24V DC | 100...240 | instantaneous switching | - | G3PH |
| G3PH-2150B-240AC | 1-phase | -30...80 | screw type | heatsink | 150 | 100...240V AC | 100...240 | zero voltage switching | - | G3PH |
| G3PH-2150B-5-24 | 1-phase | -30...80 | screw type | heatsink | 150 | 5...24V DC | 100...240 | zero voltage switching | - | G3PH |
| G3PH-2150BL-5-24 | 1-phase | -30...80 | screw type | heatsink | 150 | 5...24V DC | 100...240 | instantaneous switching | - | G3PH |
| G3PH-5075B-240AC | 1-phase | -30...80 | screw type | heatsink | 75 | 100...240V AC | 180...480 | zero voltage switching | - | G3PH |
| G3PH-5075B-5-24 | 1-phase | -30...80 | screw type | heatsink | 75 | 5...24V DC | 180...480 | zero voltage switching | - | G3PH |
| G3PH-5075BL-5-24 | 1-phase | -30...80 | screw type | heatsink | 75 | 5...24V DC | 180...480 | instantaneous switching | - | G3PH |
| G3PH-5150B-240AC | 1-phase | -30...80 | screw type | heatsink | 150 | 100...240V AC | 180...480 | zero voltage switching | - | G3PH |
| G3PH-5150B-5-24 | 1-phase | -30...80 | screw type | heatsink | 150 | 5...24V DC | 180...480 | zero voltage switching | - | G3PH |
| G3PH-5150BL-5-24 | 1-phase | -30...80 | screw type | heatsink | 150 | 5...24V DC | 180...480 | instantaneous switching | - | G3PH |
| G3PW-A220EU-S | 1-phase | -15...55 | screw type | heatsink | 20 | - | 100...240 | - | - | G3PW |
| G3PW-A260EU-C | 1-phase | -15...55 | screw type | heatsink | 60 | - | 100...240 | - | - | G3PW |
* the position in bracket indicates momentary position.
