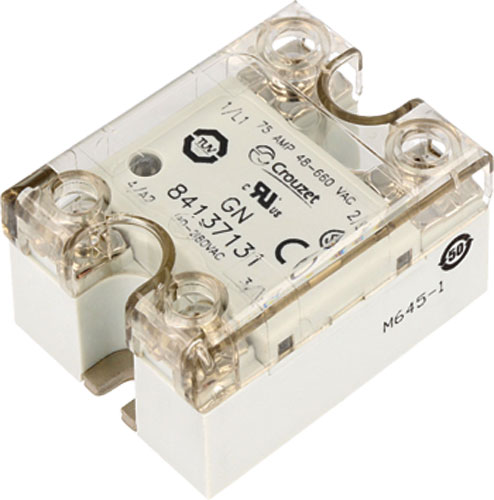

Relay: solid state; SENSATA / CRYDOM
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Caution! | Maximal load current with use of suitable heatsink |
| Manufacturer series | GN |
| Symbol | Variant | Dimensions | Ioper. max | Ucntrl | Uswitch. | Uswitch. | Switch. method* |
|---|---|---|---|---|---|---|---|
| [A] | [V AC] | [V DC] | |||||

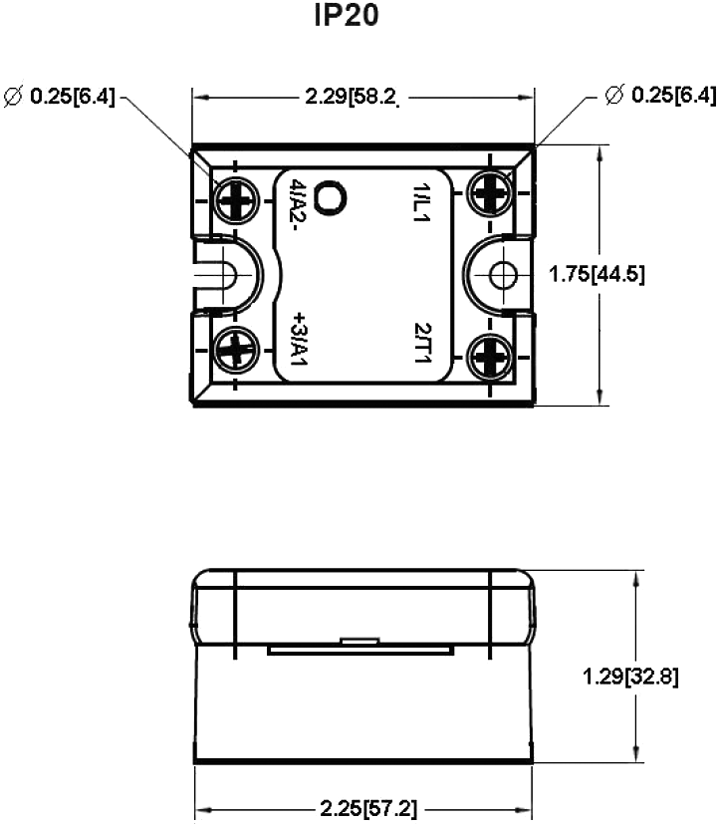

| GN-10A-7100 | 1-phase | Fig. 1. | 10 | 4...32V DC | 48...660 | - | zero voltage switching |
| GN-10A-7101 | 1-phase | Fig. 1. | 10 | 90...280V AC | 48...660 | - | zero voltage switching |
| GN-10A-7102 | 1-phase | Fig. 1. | 10 | 18...36V AC | 48...660 | - | zero voltage switching |
| GN-10A-7300 | 1-phase | Fig. 1. | 10 | 4...32V DC | 48...660 | - | instantaneous switching |
| GN-25A-7112 | 1-phase | Fig. 1. | 25 | 18...36V AC | 48...660 | - | zero voltage switching |
| GN-25A-7310 | 1-phase | Fig. 1. | 25 | 4...32V DC | 48...660 | - | instantaneous switching |
| GN-50A-7120 | 1-phase | Fig. 1. | 50 | 4...32V DC | 48...660 | - | zero voltage switching |
| GN-50A-7320 | 1-phase | Fig. 1. | 50 | 4...32V DC | 48...660 | - | instantaneous switching |
| GN-50A-7322 | 1-phase | Fig. 1. | 50 | 18...36V AC | 48...660 | - | instantaneous switching |
| GN-75A-7130 | 1-phase | Fig. 1. | 75 | 4...32V DC | 48...660 | - | zero voltage switching |
| GN-75A-7131 | 1-phase | Fig. 1. | 75 | 90...280V AC | 48...660 | - | zero voltage switching |
| GN-75A-7132 | 1-phase | Fig. 1. | 75 | 18...36V AC | 48...660 | - | zero voltage switching |
| GN-75A-7330 | 1-phase | Fig. 1. | 75 | 4...32V DC | 48...660 | - | instantaneous switching |
| GN-75A-7332 | 1-phase | Fig. 1. | 75 | 18...36V AC | 48...660 | - | instantaneous switching |
| GN-100A-7140 | 1-phase | Fig. 1. | 100 | 4...32V DC | 48...660 | - | zero voltage switching |
| GN-100A-7141 | 1-phase | Fig. 1. | 100 | 90...280V AC | 48...660 | - | zero voltage switching |
| GN-100A-7142 | 1-phase | Fig. 1. | 100 | 18...36V AC | 48...660 | - | zero voltage switching |
| GN-100A-7340 | 1-phase | Fig. 1. | 100 | 4...32V DC | 48...660 | - | instantaneous switching |
| GN-100A-7342 | 1-phase | Fig. 1. | 100 | 18...36V AC | 48...660 | - | instantaneous switching |
| GN-125A-7180 | 1-phase | Fig. 1. | 125 | 4...32V DC | 48...660 | - | zero voltage switching |
| GN-125A-7181 | 1-phase | Fig. 1. | 125 | 90...280V AC | 48...660 | - | zero voltage switching |
| GN-125A-7182 | 1-phase | Fig. 1. | 125 | 18...36V AC | 48...660 | - | zero voltage switching |
| GN-125A-7380 | 1-phase | Fig. 1. | 125 | 4...32V DC | 48...660 | - | instantaneous switching |
| GN-125A-7382 | 1-phase | Fig. 1. | 125 | 18...36V AC | 48...660 | - | instantaneous switching |
| GN-10D-7750 | 1-phase | Fig. 1. | 10 | - | - | 3...60 | - |
| GN-15D-7860 | 1-phase | Fig. 1. | 15 | - | - | 1...100 | - |
| GN-30D-7870 | 1-phase | Fig. 1. | 30 | - | - | 1...50 | - |
| GN-25A | 1-phase | Fig. 1. | 25 | 3...32V DC | 24...280 | - | zero voltage switching |
| GN-50A-7021 | 1-phase | Fig. 1. | 50 | 90...280V AC | 24...280 | - | zero voltage switching |
| 84134120H | 1-phase | - | 50 | 3...32V DC | 48...660 | - | zero voltage switching |
| 84134121 | 1-phase | - | 50 | 90...280V AC | 48...660 | - | zero voltage switching |
| 84134122 | 1-phase | - | 50 | 18...36V AC | 48...660 | - | zero voltage switching |
| 84134130 | 1-phase | - | 75 | 3...32V DC | 48...660 | - | zero voltage switching |
| 84134131 | 1-phase | - | 75 | 90...280V AC | 48...660 | - | zero voltage switching |
| 84134132 | 1-phase | - | 75 | 18...36V AC | 48...660 | - | zero voltage switching |
| 84134140 | 1-phase | - | 100 | 3...32V DC | 48...660 | - | zero voltage switching |
| 84134141 | 1-phase | - | 100 | 90...280V AC | 48...660 | - | zero voltage switching |
| 84134142 | 1-phase | - | 100 | 18...36V AC | 48...660 | - | zero voltage switching |
| 84134180H | 1-phase | - | 125 | 3...32V DC | 48...660 | - | zero voltage switching |
| 84134181 | 1-phase | - | 125 | 90...280V AC | 48...660 | - | zero voltage switching |
| 84134182 | 1-phase | - | 125 | 18...36V AC | 48...660 | - | zero voltage switching |
| 84134200 | 1-phase | - | 10 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134210K | 1-phase | - | 25 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134211 | 1-phase | - | 25 | 90...280V AC | 24...280 | - | instantaneous switching |
| 84134220 | 1-phase | - | 50 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134220H | 1-phase | - | 50 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134221 | 1-phase | - | 50 | 90...280V AC | 24...280 | - | instantaneous switching |
| 84134230 | 1-phase | - | 75 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134240 | 1-phase | - | 100 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134280 | 1-phase | - | 125 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134300 | 1-phase | - | 10 | 3...32V DC | 48...660 | - | instantaneous switching |
| 84134320 | 1-phase | - | 50 | 3...32V DC | 48...660 | - | instantaneous switching |
| 84134330 | 1-phase | - | 75 | 3...32V DC | 48...660 | - | instantaneous switching |
| 84134340 | 1-phase | - | 100 | 3...32V DC | 48...660 | - | instantaneous switching |
| 84134380 | 1-phase | - | 125 | 3...32V DC | 48...660 | - | instantaneous switching |
| 84137001 | 1-phase | - | 10 | 90...280V AC | 24...280 | - | zero voltage switching |
| 84137002 | 1-phase | - | 10 | 18...36V AC | 24...280 | - | zero voltage switching |
| 84137010H | 1-phase | - | 25 | 3...32V DC | 24...280 | - | zero voltage switching |
| 84137011 | 1-phase | - | 25 | 90...280V AC | 24...280 | - | zero voltage switching |
| 84137011H | 1-phase | - | 25 | 90...280V AC | 24...280 | - | zero voltage switching |
| 84137012 | 1-phase | - | 25 | 18...36V AC | 24...280 | - | zero voltage switching |
| 84137020H | 1-phase | - | 50 | 3...32V DC | 24...280 | - | zero voltage switching |
| 84137022 | 1-phase | - | 50 | 18...36V AC | 24...280 | - | zero voltage switching |
| 84137031 | 1-phase | - | 75 | 90...280V AC | 24...280 | - | zero voltage switching |
| 84137032 | 1-phase | - | 75 | 18...36V AC | 24...280 | - | zero voltage switching |
| 84137040 | 1-phase | - | 100 | 3...32V DC | 24...280 | - | zero voltage switching |
| 84137041 | 1-phase | - | 100 | 90...280V AC | 24...280 | - | zero voltage switching |
| 84137042 | 1-phase | - | 100 | 18...36V AC | 24...280 | - | zero voltage switching |
| 84137080 | 1-phase | - | 125 | 3...32V DC | 24...280 | - | zero voltage switching |
| 84137081 | 1-phase | - | 125 | 90...280V AC | 24...280 | - | zero voltage switching |
| 84137082 | 1-phase | - | 125 | 18...36V AC | 24...280 | - | zero voltage switching |
| 84137111H | 1-phase | - | 25 | 90...280V AC | 48...660 | - | zero voltage switching |
| 84137121H | 1-phase | - | 50 | 90...280V AC | 48...660 | - | zero voltage switching |
| 84137130H | 1-phase | - | 75 | 3...32V DC | 48...660 | - | zero voltage switching |
| 84137180H | 1-phase | - | 125 | 3...32V DC | 48...660 | - | zero voltage switching |
| 84137200 | 1-phase | - | 10 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84137210H | 1-phase | - | 25 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84137211 | 1-phase | - | 25 | 90...280V AC | 24...280 | - | instantaneous switching |
| 84137220H | 1-phase | - | 50 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84137221 | 1-phase | - | 50 | 90...280V AC | 24...280 | - | instantaneous switching |
| 84137230 | 1-phase | - | 75 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84137240 | 1-phase | - | 100 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84137280 | 1-phase | - | 125 | 3...32V DC | 24...280 | - | instantaneous switching |
| 84134080 | 1-phase | - | 125 | 3...32V DC | 24...280 | - | zero voltage switching |
| 84134860 | current source | - | 15 | 3.5...32V DC | - | 1...100 | - |
| 84134750H | current source | - | 10 | 3.5...32V DC | - | 3...60 | - |
| 84134750 | current source | - | 10 | 3.5...32V DC | - | 3...60 | - |
* the position in bracket indicates momentary position.
