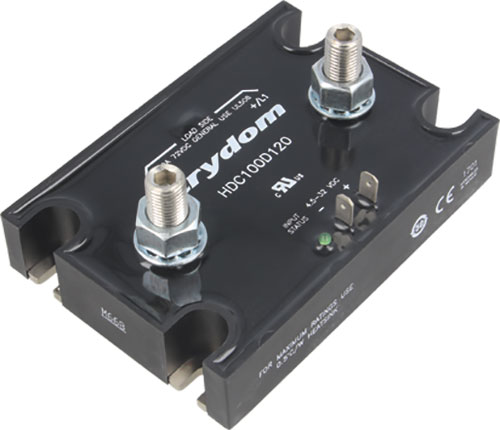

Relay: solid state; SENSATA / CRYDOM
| Manufacturer | SENSATA / CRYDOM |
| Type of relay | solid state |
| Variant | current source |
| Body dimensions | 73.5x103.99x43.1mm |
| Mounting | on panel, screw type |
| Operating temperature | -30...80°C |

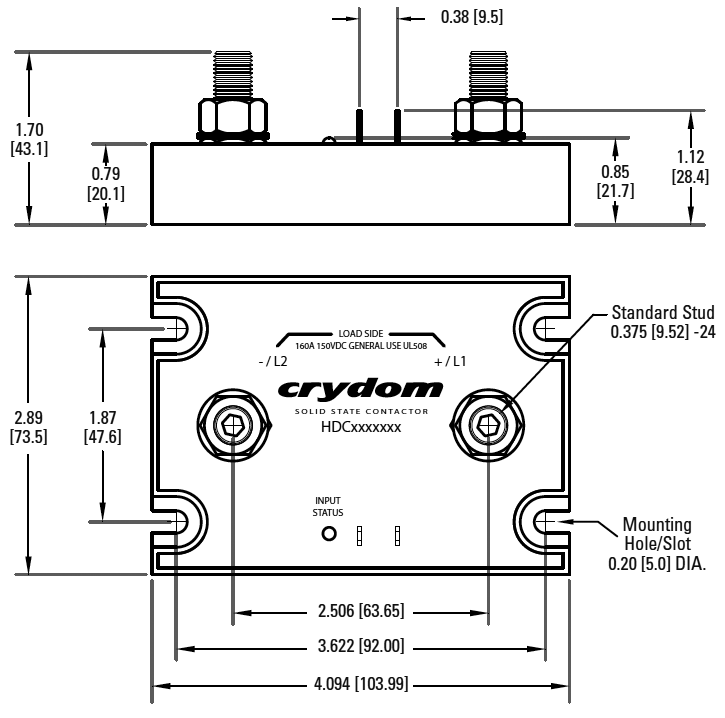

| Dimensions | Fig. 1. |
| Indication | LED |
| Caution! | Maximal load current with use of suitable heatsink |
| Manufacturer series | HDC |
| Symbol | Ioper. max | Ucntrl | Uswitch. | Switch. method* | Features |
|---|---|---|---|---|---|
| [A] | [V DC] | ||||
| HDC100D120 | 120 | 4.5...32V DC | 7...72 | instantaneous switching | - |
| HDC100D160 | 160 | 4.5...32V DC | 7...72 | instantaneous switching | - |
| HDC200D120 | 120 | 4.5...32V DC | 7...150 | instantaneous switching | - |
| HDC200D160 | 160 | 4.5...32V DC | 7...150 | instantaneous switching | - |
| HDC60D120 | 120 | 4.5...32V DC | 7...48 | instantaneous switching | - |
| HDC60D160 | 160 | 4.5...32V DC | 7...48 | instantaneous switching | - |
| HDC100A120 | 120 | 90...140V AC | 7...72 | instantaneous switching | - |
| HDC100A120H | 120 | 90...140V AC | 7...72 | instantaneous switching | thermal pad included |
| HDC100A160 | 160 | 90...140V AC | 7...72 | instantaneous switching | - |
| HDC100A160H | 160 | 90...140V AC | 7...72 | instantaneous switching | thermal pad included |
| HDC100D120H | 120 | 4.5...32V DC | 7...72 | instantaneous switching | thermal pad included |
| HDC100D160H | 160 | 4.5...32V DC | 7...72 | instantaneous switching | thermal pad included |
| HDC200A120 | 120 | 90...140V AC | 7...150 | instantaneous switching | - |
| HDC200A120H | 120 | 90...140V AC | 7...150 | instantaneous switching | thermal pad included |
| HDC200A160 | 160 | 90...140V AC | 7...150 | instantaneous switching | - |
| HDC200A160H | 160 | 90...140V AC | 7...150 | instantaneous switching | thermal pad included |
| HDC200D120H | 120 | 4.5...32V DC | 7...150 | instantaneous switching | thermal pad included |
| HDC200D160H | 160 | 4.5...32V DC | 7...150 | instantaneous switching | thermal pad included |
| HDC60A120 | 120 | 90...140V AC | 7...48 | instantaneous switching | - |
| HDC60A120H | 120 | 90...140V AC | 7...48 | instantaneous switching | thermal pad included |
| HDC60A160 | 160 | 90...140V AC | 7...48 | instantaneous switching | - |
| HDC60A160H | 160 | 90...140V AC | 7...48 | instantaneous switching | thermal pad included |
| HDC60D120H | 120 | 4.5...32V DC | 7...48 | instantaneous switching | thermal pad included |
| HDC60D160H | 160 | 4.5...32V DC | 7...48 | instantaneous switching | thermal pad included |
* the position in bracket indicates momentary position.
