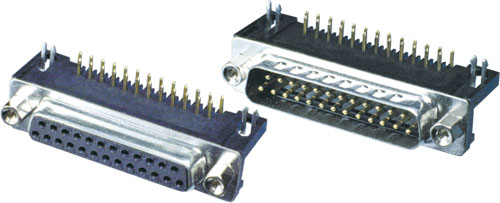

Right angle 7.2 mm standard D-Sub connectors

Right angle 7.2 mm standard D-Sub connectors, DHP8-09F, DHP8-09M, DHP8-15F, DHP8-15M, DHP8-25F |EN|

Manufacturer	CONNFLY
Connector	socket
Type of connector	D-Sub
Type	7,2mm standard
Electr. mounting	THT
Locking system	screws
Thread	UNC 4-40
Spatial orientation	angled 90°
Current rating	5A
Operating temperature	-55...105°C
Max. contact resistance:	15mΩ
Dimensions	Fig. 1.

Symbol	Kind	Number of pins	A	B	C
			[mm]	[mm]	[mm]
DHP8-09F	female	9	16	25	31
DHP8-09M	male	9	17	25	31
DHP8-15F	female	15	25	33	39
DHP8-15M	male	15	25	33	39
DHP8-25F	female	25	38	47	53
DHP8-25M	male	25	39	47	53
DHP8-37F	female	37	55	63	69
DHP8-37M	male	37	55	63	69
