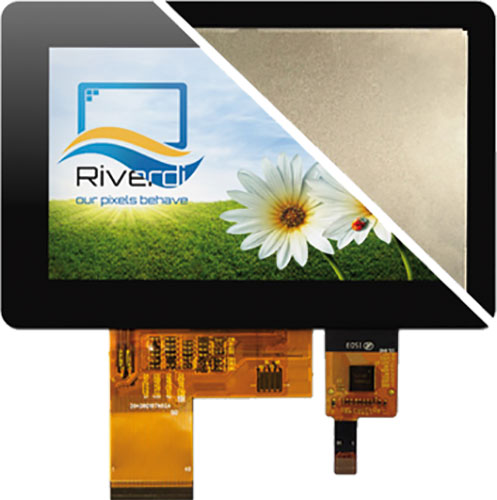

Riverdi TFT uxTouch displays
| Manufacturer | Riverdi |
| Type of display | TFT |
| Kind of display | graphical |
| Contrast | 500:1 |
| Operating temperature | -20...70°C |
| Storage temp. | -30...80°C |
| Tape pitch | 0.5mm |
| Illumination | LED |
| Symbol | Screen size | Resolution | Window dimensions |
|---|---|---|---|
| ["] | [mm] | ||
| RVT43ULSNWC00 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULSNWC01 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULSNWC02 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULSNWC03 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULSNWC04 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULSNWC05 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULTNWC00 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULTNWC01 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULTNWC02 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULTNWC03 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULTNWC04 | 4.3 | 480x272 | 96.54x55.36 |
| RVT43ULTNWC05 | 4.3 | 480x272 | 96.54x55.36 |
| RVT50UQTNWC00 | 5 | 800x480 | 109x65.8 |
| RVT50UQTNWC01 | 5 | 800x480 | 109x65.8 |
| RVT50UQTNWC02 | 5 | 800x480 | 109x65.8 |
| RVT50UQTNWC03 | 5 | 800x480 | 109x65.8 |
| RVT50UQTNWC04 | 5 | 800x480 | 109x65.8 |
| RVT50UQTNWC05 | 5 | 800x480 | 109x65.8 |
| RVT70UQSNWC01 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQSNWC02 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQSNWC03 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQSNWC05 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQTNWC00 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQTNWC01 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQTNWC02 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQTNWC03 | 7 | 800x480 | 154.08x85.92 |
| RVT70UQTNWC05 | 7 | 800x480 | 154.08x85.92 |
| Symbol | Interface | Controller | Luminosity |
|---|---|---|---|
| [cd/m2] | |||
| RVT43ULSNWC00 | parallel 16bit | SSD1963 | 500 |
| RVT43ULSNWC01 | parallel 16bit | SSD1963 | 500 |
| RVT43ULSNWC02 | parallel 16bit | SSD1963 | 500 |
| RVT43ULSNWC03 | parallel 16bit | SSD1963 | 500 |
| RVT43ULSNWC04 | parallel 16bit | SSD1963 | 500 |
| RVT43ULSNWC05 | parallel 16bit | SSD1963 | 500 |
| RVT43ULTNWC00 | parallel 24bit RGB | ILI6480BQ | 500 |
| RVT43ULTNWC01 | parallel 24bit RGB | ILI6480BQ | 500 |
| RVT43ULTNWC02 | parallel 24bit RGB | ILI6480BQ | 500 |
| RVT43ULTNWC03 | parallel 24bit RGB | ILI6480BQ | 500 |
| RVT43ULTNWC04 | parallel 24bit RGB | ILI6480BQ | 500 |
| RVT43ULTNWC05 | parallel 24bit RGB | ILI6480BQ | 500 |
| RVT50UQTNWC00 | parallel 24bit RGB | HX8264D, HX8664B | 510 |
| RVT50UQTNWC01 | parallel 24bit RGB | HX8264D, HX8664B | 510 |
| RVT50UQTNWC02 | parallel 24bit RGB | HX8264D, HX8664B | 510 |
| RVT50UQTNWC03 | parallel 24bit RGB | HX8264D, HX8664B | 510 |
| RVT50UQTNWC04 | parallel 24bit RGB | HX8264D, HX8664B | 510 |
| RVT50UQTNWC05 | parallel 24bit RGB | HX8264D, HX8664B | 510 |
| RVT70UQSNWC01 | I2C | SSD1963 | 350 |
| RVT70UQSNWC02 | I2C | SSD1963 | 350 |
| RVT70UQSNWC03 | I2C | SSD1963 | 350 |
| RVT70UQSNWC05 | I2C | SSD1963 | 350 |
| RVT70UQTNWC00 | parallel 24bit RGB | HX8264, HX8664 | 350 |
| RVT70UQTNWC01 | parallel 24bit RGB | HX8264, HX8664 | 350 |
| RVT70UQTNWC02 | parallel 24bit RGB | HX8264, HX8664 | 350 |
| RVT70UQTNWC03 | parallel 24bit RGB | HX8264, HX8664 | 350 |
| RVT70UQTNWC05 | parallel 24bit RGB | HX8264, HX8664 | 350 |
| Symbol | Dimensions | Colour |
|---|---|---|
| [mm] | ||
| RVT43ULSNWC00 | 120.38x79.2x8.63 | black |
| RVT43ULSNWC01 | 120.38x79.2x8.63 | black |
| RVT43ULSNWC02 | 120.38x79.2x8.63 | black |
| RVT43ULSNWC03 | 120.38x79.2x8.63 | white |
| RVT43ULSNWC04 | 120.38x79.2x8.63 | white |
| RVT43ULSNWC05 | 120.38x79.2x8.63 | white |
| RVT43ULTNWC00 | 120.38x79.2x4.8 | black |
| RVT43ULTNWC01 | 120.38x79.2x4.8 | black |
| RVT43ULTNWC02 | 120.38x79.2x4.8 | black |
| RVT43ULTNWC03 | 120.38x79.2x4.8 | white |
| RVT43ULTNWC04 | 120.38x79.2x4.8 | white |
| RVT43ULTNWC05 | 120.38x79.2x4.8 | white |
| RVT50UQTNWC00 | 136x92.8 | black |
| RVT50UQTNWC01 | 136x92.8 | black |
| RVT50UQTNWC02 | 136x92.8 | black |
| RVT50UQTNWC03 | 136x92.8 | white |
| RVT50UQTNWC04 | 136x92.8 | white |
| RVT50UQTNWC05 | 136x92.8 | white |
| RVT70UQSNWC01 | 179.9x119x11.45 | black |
| RVT70UQSNWC02 | 179.9x119x11.45 | black |
| RVT70UQSNWC03 | 179.9x119x11.45 | white |
| RVT70UQSNWC05 | 179.9x119x11.45 | white |
| RVT70UQTNWC00 | 179.96x119x8 | black |
| RVT70UQTNWC01 | 179.96x119x8 | black |
| RVT70UQTNWC02 | 179.96x119x8 | black |
| RVT70UQTNWC03 | 179.96x119x8 | white |
| RVT70UQTNWC05 | 179.96x119x8 | white |
| Symbol | Features |
|---|---|
| RVT43ULSNWC00 | smart; flat panel |
| RVT43ULSNWC01 | smart; flat panel |
| RVT43ULSNWC02 | smart; flat panel |
| RVT43ULSNWC03 | smart; flat panel |
| RVT43ULSNWC04 | smart; flat panel |
| RVT43ULSNWC05 | smart; flat panel |
| RVT43ULTNWC00 | smart; flat panel |
| RVT43ULTNWC01 | smart; flat panel |
| RVT43ULTNWC02 | smart; flat panel |
| RVT43ULTNWC03 | smart; flat panel |
| RVT43ULTNWC04 | smart; flat panel |
| RVT43ULTNWC05 | smart; flat panel |
| RVT50UQTNWC00 | smart; flat panel; double side 0,2mm tape |
| RVT50UQTNWC01 | smart; flat panel; double side 0,5mm tape |
| RVT50UQTNWC02 | smart |
| RVT50UQTNWC03 | smart; flat panel; double side 0,2mm tape |
| RVT50UQTNWC04 | smart; flat panel; double side 0,5mm tape |
| RVT50UQTNWC05 | smart |
| RVT70UQSNWC01 | smart; flat panel; double side 0,5mm tape |
| RVT70UQSNWC02 | smart; flat panel |
| RVT70UQSNWC03 | smart; flat panel; double side 0,2mm tape |
| RVT70UQSNWC05 | smart; flat panel |
| RVT70UQTNWC00 | smart; flat panel |
| RVT70UQTNWC01 | smart; flat panel |
| RVT70UQTNWC02 | smart; flat panel |
| RVT70UQTNWC03 | smart; flat panel |
| RVT70UQTNWC05 | smart; flat panel |
| Symbol | Usup | Number of pins | Layout |
|---|---|---|---|
| [V DC] | |||
| RVT43ULSNWC00 | 3...3.6 | 36 | 1x36 |
| RVT43ULSNWC01 | 3...3.6 | 36 | 1x36 |
| RVT43ULSNWC02 | 3...3.6 | 36 | 1x36 |
| RVT43ULSNWC03 | 3...3.6 | 36 | 1x36 |
| RVT43ULSNWC04 | 3...3.6 | 36 | 1x36 |
| RVT43ULSNWC05 | 3...3.6 | 36 | 1x36 |
| RVT43ULTNWC00 | 3...3.6 | 40 | 1x40 |
| RVT43ULTNWC01 | 3...3.6 | 40 | 1x40 |
| RVT43ULTNWC02 | 3...3.6 | 40 | 1x40 |
| RVT43ULTNWC03 | 3...3.6 | 40 | 1x40 |
| RVT43ULTNWC04 | 3...3.6 | 40 | 1x40 |
| RVT43ULTNWC05 | 3...3.6 | 40 | 1x40 |
| RVT50UQTNWC00 | 3...3.6 | 40 | 1x40 |
| RVT50UQTNWC01 | 3...3.6 | 40 | 1x40 |
| RVT50UQTNWC02 | 3...3.6 | 40 | 1x40 |
| RVT50UQTNWC03 | 3...3.6 | 40 | 1x40 |
| RVT50UQTNWC04 | 3...3.6 | 40 | 1x40 |
| RVT50UQTNWC05 | 3...3.6 | 40 | 1x40 |
| RVT70UQSNWC01 | 3...3.6 | 36 | 1x36 |
| RVT70UQSNWC02 | 3...3.6 | 36 | 1x36 |
| RVT70UQSNWC03 | 3...3.6 | 36 | 1x36 |
| RVT70UQSNWC05 | 3...3.6 | 36 | 1x36 |
| RVT70UQTNWC00 | 3...3.6 | 50 | 1x50 |
| RVT70UQTNWC01 | 3...3.6 | 50 | 1x50 |
| RVT70UQTNWC02 | 3...3.6 | 50 | 1x50 |
| RVT70UQTNWC03 | 3...3.6 | 50 | 1x50 |
| RVT70UQTNWC05 | 3...3.6 | 50 | 1x50 |
