ROTH ELEKTRONIK prototyping boards
| Manufacturer | ROTH ELEKTRONIK GMBH |
| Type of board | universal |
| Board | single sided, prototyping |
| Material | FR4, fiberglass, epoxy resin |
| Laminate thickness | 0.8mm |
| Board clad | copper, tin plated soldering pads, 3M VHB self-adhesive layer |
| Copper plating thickness | 35µm |
| Symbol | Length | Width | Soldering pads configuration |
|---|---|---|---|
| [mm] | [mm] | ||
| RE1340-LF | 67.25 | 19 | SO4; SO6; SO8 |
| RE1350-LF | 105 | 19 | SO10; SO14; SO4; SO6; SO8 |
| RE1360-LF | 117.5 | 19 | SO10; SO14; SO16; SO4; SO6; SO8 |
| RE1370-LF | 117.35 | 22 | SO4; SO6; SO8 |
| RE1380-LF | 96.75 | 39 | SO10; SO14; SO4; SO6; SO8 |

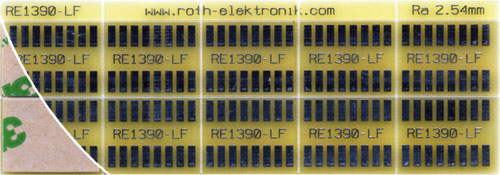

| RE1390-LF | 111 | 39 | SO10; SO14; SO16; SO4; SO6; SO8 |
