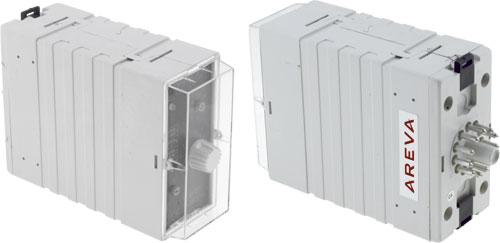

RTX151; SCHNEIDER ELECTRIC
| Manufacturer | SCHNEIDER ELECTRIC |
| Mounting | on panel, for DIN rail mounting, socket |
| Electrical connection | round socket |
| Body dimensions | 38x75x103mm |
| Operating temperature | -10...55°C |
| IP rating | IP40 |
| Related items | GZ11, GZP11, GZU11, PS11, PZ11 |
| Dimensions | Fig. 1-1. |
| Output configuration | Fig. 2-1. |
| Characteristics | Fig. 3-1. |
| Indication | LED |
| Manufacturer series | RTX151 |
| Type of automation module | timer |
| Symbol | Usup | Usup | Output | Range | No. of pins |
|---|---|---|---|---|---|
| [V AC] | [V DC] | ||||
| RTX151-110 | 110...127 | 110...127 | 3PDT | 0,01s...100h | 11 |
| RTX151-220 | 220...230 | 220...230 | 3PDT | 0,01s...100h | 11 |
| Symbol: (RTX151-110) | |
|---|---|
| Connection | undecal |
| Number of operation modes | 4 |
| Operation modes | delayed switching on, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, ON for the set interval |
| Engineering PN | 627-001-00-041 |
| Symbol: (RTX151-220) | |
| Connection | undecal |
| Number of operation modes | 4 |
| Operation modes | delayed switching on, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, ON for the set interval |
| Engineering PN | 627-001-00-051 |
