SCHNEIDER ELECTRIC; miniature; Mounting: socket

ManufacturerSCHNEIDER ELECTRIC
Type of relayelectromagnetic
Variantminiature
Mountingsocket
Contact materialAgNi
Switched voltagemax. 250V AC
Body dimensions29x15.7x12.5mm
Switched voltagemax. 250V DC
Trade nameZelio Relay
Manufacturer seriesRSB
Symbol Related items Contacts configuration Ucoil Contact current max. AC load rating @R* DC load rating @R* Terminal pitch Contact resistance Dimensions Output configuration Pcoil Pcoil Operating temp.
[A] [mm] [mΩ] [mW] [VA] [°C]
RSB2A080BD RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 24V DC 8 8A / 250V AC 8A / 28V DC 5 100 Fig. 1-1. Fig. 2-1. 450 - -40...85
RSB2A080B7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 24V AC 8 8A / 250V AC 8A / 28V DC 5 100 Fig. 1-1. Fig. 2-1. - 0.75 -40...70
RSB2A080P7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 230V AC 8 8A / 250V AC 8A / 28V DC 5 100 Fig. 1-1. Fig. 2-1. - 0.75 -40...70
RSB2A080E7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 48V AC 8 8A / 250V AC 8A / 28V DC 5 - Fig. 1-1. Fig. 2-1. - 0.75 -40...70
RSB2A080ED RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 48V DC 8 8A / 250V AC 8A / 28V DC 5 - Fig. 1-1. Fig. 2-1. 450 - -40...70
RSB2A080F7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 120V AC 8 8A / 250V AC 8A / 28V DC 5 - Fig. 1-1. Fig. 2-1. - 0.75 -40...70
RSB2A080FD RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 110V DC 8 8A / 250V AC 8A / 28V DC 5 - Fig. 1-1. Fig. 2-1. 450 - -40...70
RSB2A080JD RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 12V DC 8 8A / 250V AC 8A / 28V DC 5 - Fig. 1-1. Fig. 2-1. 450 - -40...70
RSB2A080M7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 DPDT 220V AC 8 8A / 250V AC 8A / 28V DC 5 - Fig. 1-1. Fig. 2-1. - 0.75 -40...70

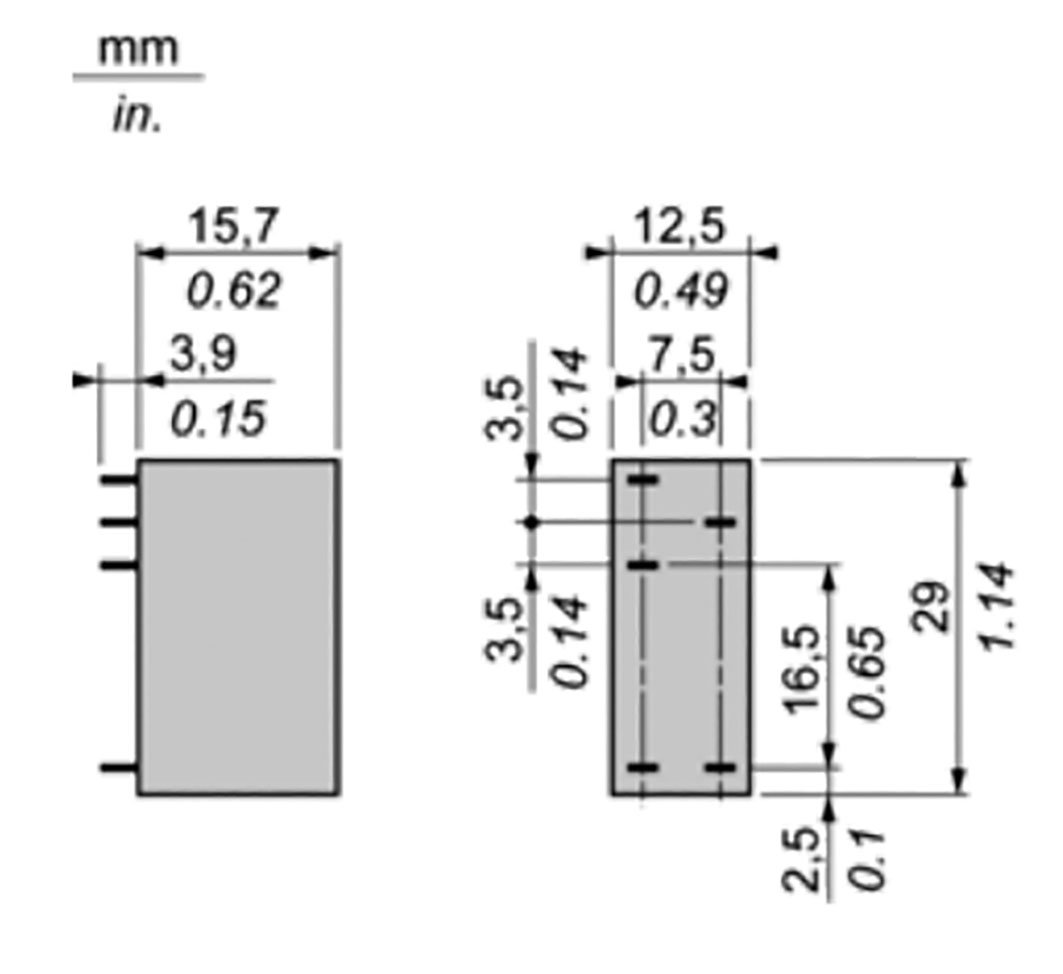

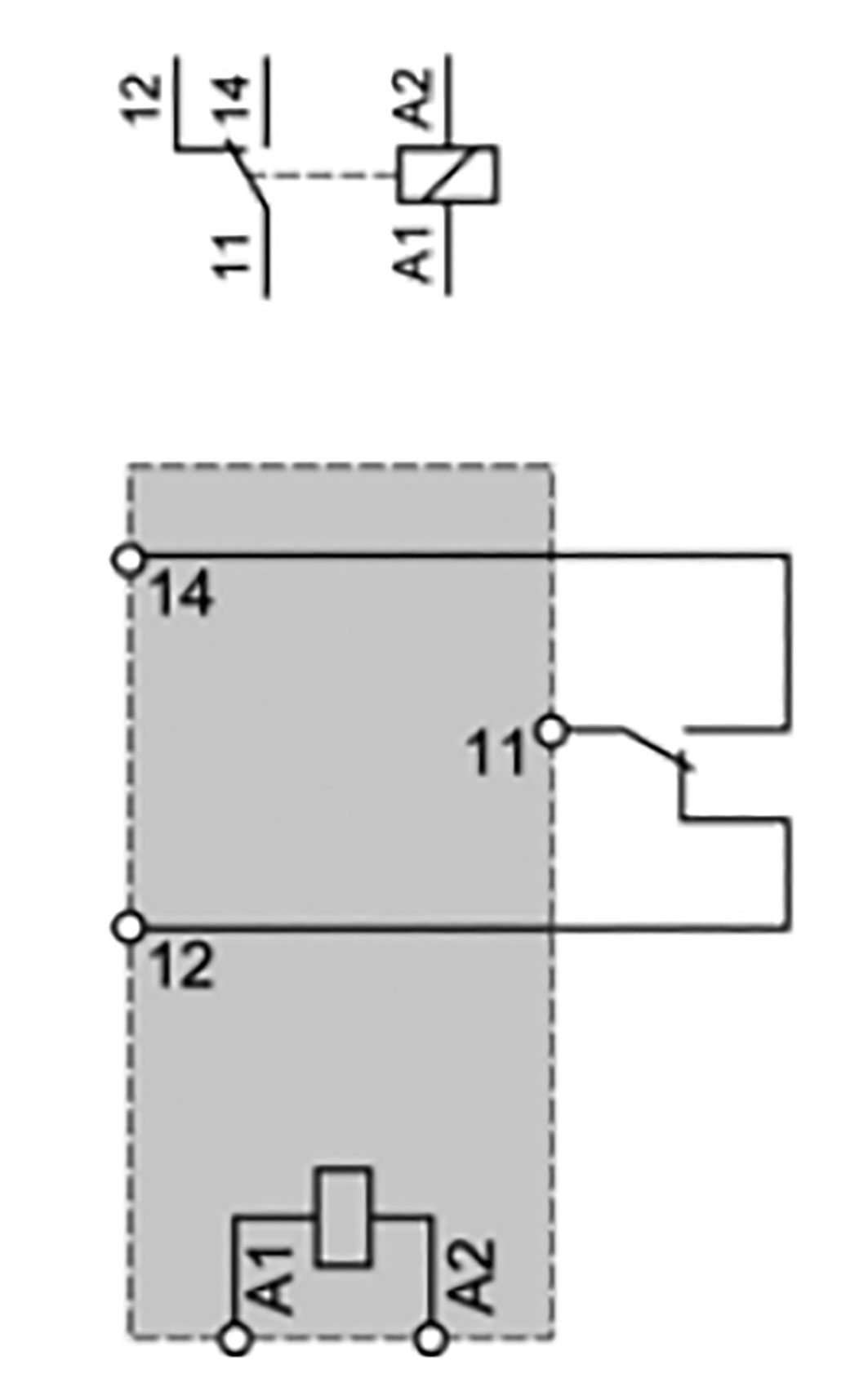

RSB1A120B7 RSZE1S35M, RSZL300, RSZR215 SPDT 24V AC 12 12A / 250V AC 12A / 28V DC - - Fig. 1-2. Fig. 2-2. - 0.75 -40...70
RSB1A120F7 RSZE1S35M, RSZL300, RSZR215 SPDT 120V AC 12 12A / 250V AC 12A / 28V DC - - Fig. 1-2. Fig. 2-2. - 0.75 -40...70
RSB1A120FD RSZE1S35M, RSZL300, RSZR215 SPDT 110V DC 12 12A / 250V AC 12A / 28V DC - - Fig. 1-2. Fig. 2-2. 450 - -40...70
RSB1A120JD RSZE1S35M, RSZL300, RSZR215 SPDT 12V DC 12 12A / 250V AC 12A / 28V DC - - Fig. 1-2. Fig. 2-2. 450 - -40...70
RSB1A120P7 RSZE1S35M, RSZL300, RSZR215 SPDT 230V AC 12 12A / 250V AC 12A / 28V DC - - Fig. 1-2. Fig. 2-2. - 0.75 -40...70
RSB1A120BD RSZE1S35M, RSZL300, RSZR215 SPDT 24V DC 12 12A / 250V AC 12A / 28V DC - - Fig. 1-2. Fig. 2-2. 450 - -40...70

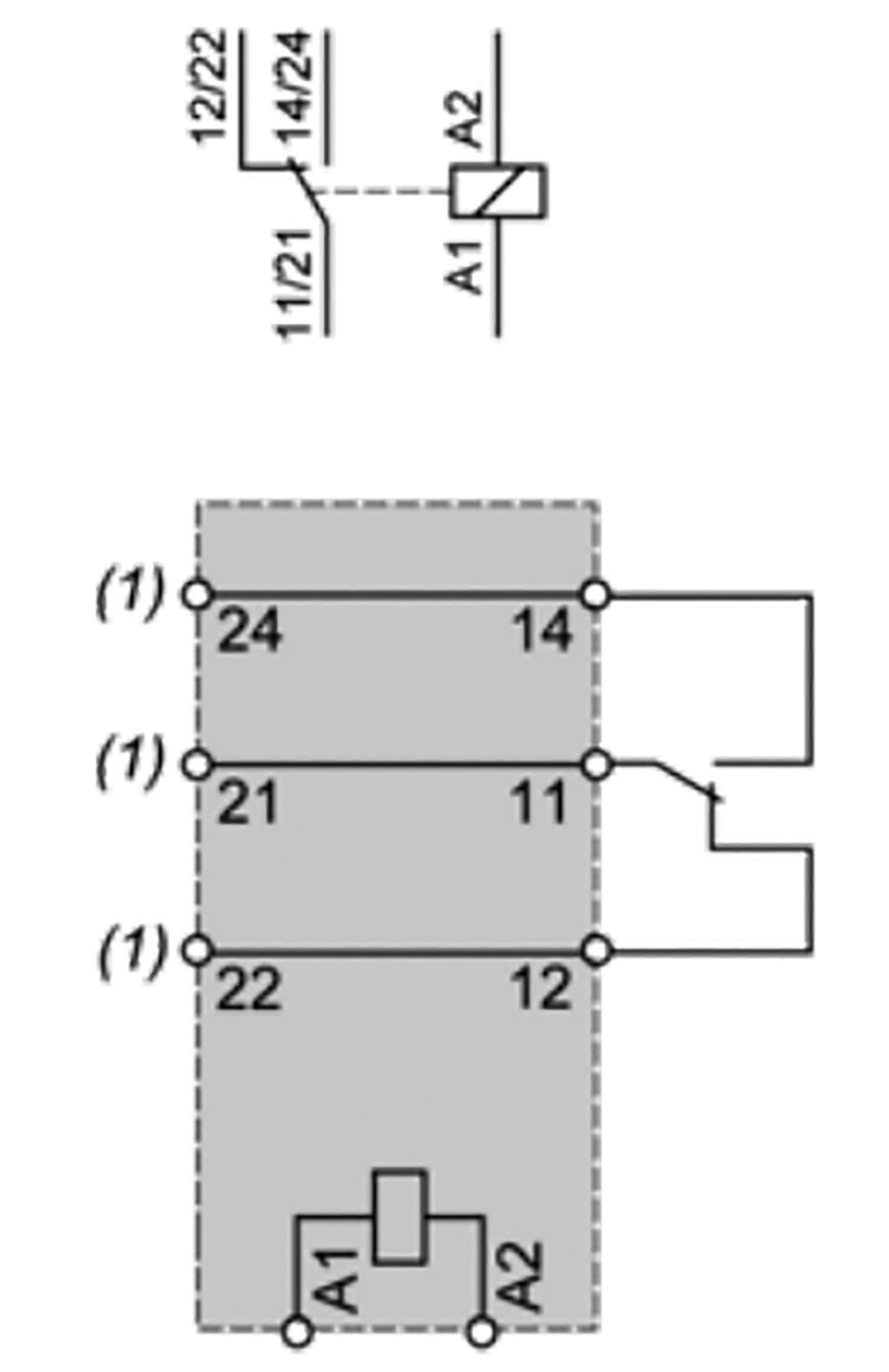

RSB1A160B7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 SPDT 24V AC 16 16A / 250V AC 16A / 28V DC 5 - Fig. 1-1. Fig. 2-3. - 0.75 -40...70
RSB1A160E7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 SPDT 48V AC 16 16A / 250V AC 16A / 28V DC 5 - Fig. 1-1. Fig. 2-3. - 0.75 -40...70
RSB1A160F7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 SPDT 120V AC 16 16A / 250V AC 16A / 28V DC 5 - Fig. 1-1. Fig. 2-3. - 0.75 -40...70
RSB1A160JD RSZE08P, RSZE1S48M, RSZL300, RSZR215 SPDT 12V DC 16 16A / 250V AC 16A / 28V DC 5 - Fig. 1-1. Fig. 2-3. 450 - -40...70
RSB1A160P7 RSZE08P, RSZE1S48M, RSZL300, RSZR215 SPDT 230V AC 16 16A / 250V AC 16A / 28V DC 5 - Fig. 1-1. Fig. 2-3. - 0.75 -40...70
* at resistive load
