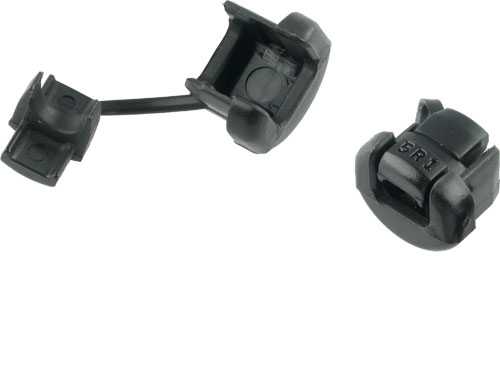

Sectional cable grommets
| Cable accessories | sectional grommet |
| Manufacturer | KSS WIRING |
| Schematic diagram | Fig. 1-1. |
| Symbol | Dimensions | Øext. cable | A | B | D | Panel thickness | Ext. dimensions | Application |
|---|---|---|---|---|---|---|---|---|
| [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | |||
| SR-F23 | Fig. 2-1. | - | 9.5 | 8.7 | 10.3 | 1.8...3.2 | 2.8x5.3 | for flat cable |
| SR-F31 | Fig. 2-1. | - | 11 | 9.9 | 10.3 | 1...1.6 | 3x5.6 | for flat cable |
| SR-F41 | Fig. 2-1. | - | 12.7 | 11.8 | 10.3 | 0.5...1.6 | 3.8x7.6 | for flat cable |
| SR-F42 | Fig. 2-1. | - | 12.7 | 11.8 | 10.3 | 1.8...2.5 | 3.8x7.6 | for flat cable |
| SR-5R1 | Fig. 2-1. | 6.2...7.4 | 12.7 | 11.5 | 11 | 0.5...1.6 | - | on round cable |
| SR-5R2 | Fig. 2-1. | 6.2...7.4 | 13 | 11.5 | 11 | 1.8...2.5 | - | on round cable |
| SR-6P1 | Fig. 2-1. | 7.4...8.2 | 15.9 | 14 | 14.8 | 0.5...1.6 | - | on round cable |
| SR-6P3 | Fig. 2-1. | 7.4...8.2 | 15.9 | 14 | 14.8 | 1.9...3.2 | - | on round cable |
| SR-6R1 | Fig. 2-1. | 8.2...9.2 | 15.9 | 14 | 14.8 | 0.5...1.6 | - | on round cable |
| SR-7R1 | Fig. 2-1. | 9.2...11 | 19.8 | 16.5 | 19 | 0.5...1.6 | - | on round cable |
