SEGGER J-LINK debuggers
| Manufacturer | SEGGER MICROCONTROLLER |
| Symbol | Manufacturer's part number | Interface |
|---|---|---|
| J-LINKBASE-CLASSIC | 8.08.00 J-LINK BASE CLASSIC | JTAG; SWD; USB |
| J-LINKBASE-COMPACT | 8.19.00 J-LINK BASE COMPACT | JTAG; SWD; USB |
| J-LINKPLUS-CLASSIC | 8.08.28 J-LINK PLUS CLASSIC | JTAG; SWD; USB |
| J-LINKPLUS-COMPACT | 8.19.28 J-LINK PLUS COMPACT | JTAG; SWD; USB |

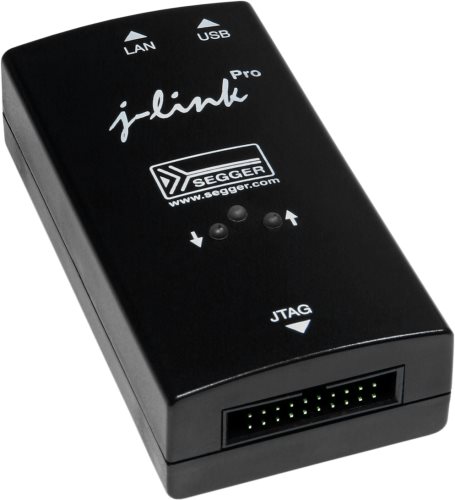

| J-LINK-PRO | 8.12.00 J-LINK PRO | Ethernet; JTAG; SWD; USB |
| J-LINK-ULTRA+ | 8.16.28 J-LINK ULTRA+ | JTAG; SWD; USB |
| J-LINK-EDU-MINI-V2 | 8.08.91 J-LINK EDU MINI | JTAG; SWD; USB |
| Symbol | Associated circuits |
|---|---|
| J-LINKBASE-CLASSIC | ARM Cortex A; ARM Cortex M; ARM7/9/11; PIC32; RENESAS RX; RISC-V |
| J-LINKBASE-COMPACT | ARM Cortex A; ARM Cortex M; ARM7/9/11; PIC32; RENESAS RX; RISC-V |
| J-LINKPLUS-CLASSIC | ARM Cortex A; ARM Cortex M; ARM7/9/11; EFM8; PIC32; RENESAS RX; RISC-V |
| J-LINKPLUS-COMPACT | ARM Cortex A; ARM Cortex M; ARM7/9/11; EFM8; PIC32; RENESAS RX; RISC-V |
| J-LINK-PRO | ARM Cortex A; ARM Cortex M; ARM7/9/11; EFM8; PIC32; RENESAS RX; RISC-V |
| J-LINK-ULTRA+ | ARM Cortex A; ARM Cortex M; ARM7/9/11; EFM8; PIC32; RENESAS RX; RISC-V |
| J-LINK-EDU-MINI-V2 | ARM Cortex A5/A7/A8/A9/A12/A15/A17; ARM Cortex M; EFM8; RISC-V |
| Symbol | Operating system | Kind of connector | Data transmission |
|---|---|---|---|
| [bps] | |||
| J-LINKBASE-CLASSIC | Linux, Mac OS, Windows | 20pin; USB B | 1M |
| J-LINKBASE-COMPACT | Linux, Mac OS, Windows | 20pin; USB B micro | 1M |
| J-LINKPLUS-CLASSIC | Linux, Mac OS, Windows | 20pin; USB B | 1M |
| J-LINKPLUS-COMPACT | Linux, Mac OS, Windows | 20pin; USB B micro | 1M |
| J-LINK-PRO | Linux, Mac OS, Windows | 20pin; RJ45; USB B | 4M |
| J-LINK-ULTRA+ | Linux, Mac OS, Windows | 20pin; USB B | 4M |
| J-LINK-EDU-MINI-V2 | Linux, Mac OS, Windows | 10pin; USB C | 200k |
| Symbol | Kit contents |
|---|---|
| J-LINKBASE-CLASSIC | USB cable; ribbon cable 20pin; programmer |
| J-LINKBASE-COMPACT | USB cable; ribbon cable 20pin; programmer |
| J-LINKPLUS-CLASSIC | USB cable; ribbon cable 20pin; programmer |
| J-LINKPLUS-COMPACT | USB cable; ribbon cable 20pin; programmer |
| J-LINK-PRO | USB cable; ribbon cable 20pin; programmer |
| J-LINK-ULTRA+ | USB cable; ribbon cable 20pin; programmer |
| J-LINK-EDU-MINI-V2 | ribbon cable 10pin; ribbon cable 20pin; programmer |
| Symbol | Operating voltage | Dimensions | Programmer | Operating temperature |
|---|---|---|---|---|
| [V DC] | [mm] | [°C] | ||
| J-LINKBASE-CLASSIC | 1.2...5 | 100x53x27 | debugger | 5...60 |
| J-LINKBASE-COMPACT | 1.2...5 | 46x46x17 | debugger | 5...60 |
| J-LINKPLUS-CLASSIC | 1.2...5 | 100x53x27 | debugger | 5...60 |
| J-LINKPLUS-COMPACT | 1.2...5 | 46x46x17 | debugger | 5...60 |
| J-LINK-PRO | 1.2...5 | 100x53x27 | debugger | 5...60 |
| J-LINK-ULTRA+ | 1.2...5 | 100x53x27 | debugger | 5...60 |
| J-LINK-EDU-MINI-V2 | 3.3 | - | debugger | 5...60 |
