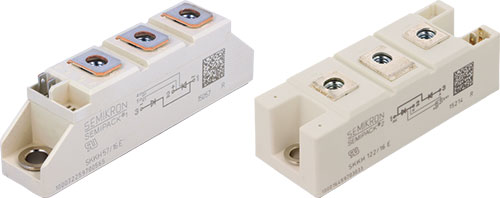

SEMIKRON DANFOSS diode-thyristor modules
| Manufacturer | SEMIKRON DANFOSS |
| Type of semiconductor module | diode-thyristor |
| Symbol | Structure | Urmax | If | Ifmax | Ifsm | Ufmax | Igt | Case | Mech. mounting | Electr. mounting | Version | Leads |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| [V] | [A] | [A] | [A] | [V] | [mA] | |||||||
| SEMIX302KH16S | double series | 1.6k | 300 | - | 9.3k | 1.7 | 200 | SEMIX2S | screw | screw | - | - |
| SK100TAE12 | single diode, single thyristor | 1.2k | - | - | - | 1.26 | 100 | SEMITOP2 | screw | Press-in PCB | - | - |
| SK20NHMH10 | diode/thyristor | 1k | 21 | - | 380 | 1.9 | 100 | SEMITOP2 | screw | Press-in PCB | T30 | - |
| SK30DTA08 | three-phase bridge rectifier/series thyristor | 800 | 25 | - | 900 | 1.8 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK30DTA12 | three-phase bridge rectifier/series thyristor | 1.2k | 25 | - | 900 | 1.8 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK30DTA16 | three-phase bridge rectifier/series thyristor | 1.6k | 25 | - | 900 | 1.8 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK60DTA08 | three-phase bridge rectifier/series thyristor | 800 | 61 | - | 1.35k | 1.8 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK60DTA12 | three-phase bridge rectifier/series thyristor | 1.2k | 61 | - | 1.35k | 1.8 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK60DTA16 | three-phase bridge rectifier/series thyristor | 1.6k | 61 | - | 1.35k | 1.8 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK75TAE12 | single diode, single thyristor | 1.2k | - | - | 1.25k | 1.2 | 100 | SEMITOP2 | screw | Press-in PCB | - | - |
| SK80DTA08 | three-phase bridge rectifier/series thyristor | 800 | 81 | - | 1.8k | 1.85 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK80DTA12 | three-phase bridge rectifier/series thyristor | 1.2k | 81 | - | 1.8k | 1.85 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SK80DTA16 | three-phase bridge rectifier/series thyristor | 1.6k | 81 | - | 1.8k | 1.85 | 100 | SEMITOP3 | screw | Press-in PCB | T45 | wire Ø 1.5mm |
| SKKH106/12E | double series | 1.2k | 106 | 200 | 2.25k | 1.65 | 150 | SEMIPACK1 | screw | screw | A46 | - |
| SKKH106/14E | double series | 1.4k | 106 | 200 | 2.25k | 1.65 | 150 | SEMIPACK1 | screw | screw | A46 | - |
| SKKH106/16E | double series | 1.6k | 106 | 200 | 2.25k | 1.65 | 150 | SEMIPACK1 | screw | screw | A46 | - |
| SKKH106/18E | double series | 1.8k | 106 | 200 | 2.25k | 1.65 | 150 | SEMIPACK1 | screw | screw | A46 | - |
| SKKH107/16E | double series | 1.6k | 119 | 235 | 2.25k | 1.75 | 100 | SEMIPACK1 | screw | screw | A22 | - |
| SKKH122/12E | double series | 1.2k | 122 | 235 | 3.6k | 1.55 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH122/18E | double series | 1.8k | 122 | 235 | 3.6k | 1.55 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH132/12E | double series | 1.2k | 130 | 240 | 4.7k | 1.8 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH132/16E | double series | 1.6k | 130 | 240 | 4.7k | 1.8 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH132/18E | double series | 1.8k | 130 | 240 | 4.7k | 1.8 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH132/20EH4 | double series | 2k | 132 | - | 4.5k | 1.8 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH132/22EH4 | double series | 2.2k | 130 | 240 | 4.7k | 1.8 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH162/12E | double series | 1.2k | 160 | 265 | 5.4k | 1.6 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH162/16E | double series | 1.6k | 160 | 265 | 5.4k | 1.6 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH162/18E | double series | 1.8k | 160 | 265 | 5.4k | 1.6 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH162/20EH4 | double series | 2k | 160 | 265 | 5.4k | 1.6 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH162/22EH4 | double series | 2.2k | 160 | 265 | 5.4k | 1.6 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH172/16E | double series | 1.6k | 172 | - | 5.4k | 1.41 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH172/18E | double series | 1.8k | 172 | - | 5.4k | 1.41 | 150 | SEMIPACK2 | screw | screw | A22 | - |
| SKKH215/16E | double series | 1.6k | 215 | - | 7k | 1.5 | 150 | SEMIPACK2 | screw | screw | - | - |
| SKKH215/18E | double series | 1.8k | 215 | - | 7k | 1.5 | 150 | SEMIPACK2 | screw | screw | - | - |
| SKKH27/12E | double series | 1.2k | 27 | 52 | 550 | 1.8 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH27/16E | double series | 1.6k | 27 | 52 | 550 | 1.8 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH27/18E | double series | 1.8k | 27 | 52 | 550 | 1.8 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH273/12E | double series | 1.2k | 274 | - | 9k | 1.6 | 150 | SEMIPACK3 | screw | screw | - | - |
| SKKH273/16E | double series | 1.6k | 274 | - | 9k | 1.6 | 150 | SEMIPACK3 | screw | screw | - | - |
| SKKH273/18E | double series | 1.8k | 273 | - | 9k | 1.6 | 150 | SEMIPACK3 | screw | screw | - | - |
| SKKH280/20EH4 | double series | 2k | 280 | - | 8.5k | 1.55 | 200 | SEMIPACK3 | screw | screw | A76b | - |
| SKKH280/22EH4 | double series | 2.2k | 280 | - | 8.5k | 1.55 | 200 | SEMIPACK3 | screw | screw | A76b | - |
| SKKH323/12E | double series | 1.2k | 320 | - | 9.5k | 1.45 | 150 | SEMIPACK3 | screw | screw | - | - |
| SKKH323/16E | double series | 1.6k | 320 | - | 9.5k | 1.45 | 150 | SEMIPACK3 | screw | screw | - | - |
| SKKH323/18E | double series | 1.8k | 320 | - | 9.5k | 1.45 | 150 | SEMIPACK3 | screw | screw | - | - |
| SKKH330/12E | double series | 1.2k | 330 | 585 | 9.5k | 1.4 | 200 | SEMIPACK3 | screw | screw | A76b | - |
| SKKH330/16E | double series | 1.6k | 330 | 585 | 9.5k | 1.4 | 200 | SEMIPACK3 | screw | screw | A76b | - |
| SKKH330/18E | double series | 1.8k | 330 | 585 | 9.5k | 1.4 | 200 | SEMIPACK3 | screw | screw | A76b | - |
| SKKH42/12E | double series | 1.2k | 40 | 110 | 1k | 1.95 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH42/16E | double series | 1.6k | 40 | 110 | 1k | 1.95 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH42/18E | double series | 1.8k | 40 | 110 | 1k | 1.95 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH460/16E | double series | 1.6k | 460 | - | 18k | 1.6 | 200 | SEMIPACK5 | screw | screw | A66b | - |
| SKKH460/22EH4 | double series | 2.2k | 460 | - | 18k | 1.6 | 200 | SEMIPACK5 | screw | screw | A66b | - |
| SKKH520/16E | double series | 16k | 506 | - | 13k | - | 200 | SEMIPACK5 | screw | screw | - | - |
| SKKH520/18E | double series | 18k | 506 | - | 13k | - | 200 | SEMIPACK5 | screw | screw | - | - |
| SKKH57/12E | double series | 1.2k | 55 | 130 | 1.5k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH57/16E | double series | 1.6k | 55 | 130 | 1.5k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH57/18E | double series | 1.8k | 55 | 130 | 1.5k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH57/20EH4 | double series | 2k | 55 | - | 1.5k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH57/22EH4 | double series | 2.2k | 55 | - | 1.5k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH570/16E | double series | 1.6k | 570 | 1k | 19k | 1.44 | 200 | SEMIPACK5 | screw | screw | - | - |
| SKKH570/18E | double series | 1.8k | 570 | 1k | 19k | 1.44 | 200 | SEMIPACK5 | screw | screw | - | - |
| SKKH58/16E | double series | 1.6k | 55 | - | 1.5k | 1.75 | 100 | SEMIPACK1 | screw | screw | - | - |
| SKKH72/12E | double series | 1.2k | 70 | 155 | 1.6k | 1.9 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH72/16E | double series | 1.6k | 70 | 155 | 1.6k | 1.9 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH72/18E | double series | 1.8k | 70 | 155 | 1.6k | 1.9 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH72/20EH4 | double series | 2k | 70 | 155 | 1.6k | 1.9 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH72/22EH4 | double series | 2.2k | 70 | 155 | 1.6k | 1.9 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH92/12E | double series | 1.2k | 95 | 190 | 2k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH92/16E | double series | 1.6k | 95 | 190 | 2k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKH92/18E | double series | 1.8k | 95 | 190 | 2k | 1.65 | 150 | SEMIPACK1 | screw | screw | A47 | - |
| SKKL92/12E | double series | 1.2k | 95 | 190 | 2k | 1.65 | 150 | SEMIPACK1 | screw | screw | A59 | - |
| SKKL92/18E | double series | 1.8k | 95 | 190 | 2k | 1.65 | 150 | SEMIPACK1 | screw | screw | A59 | - |
