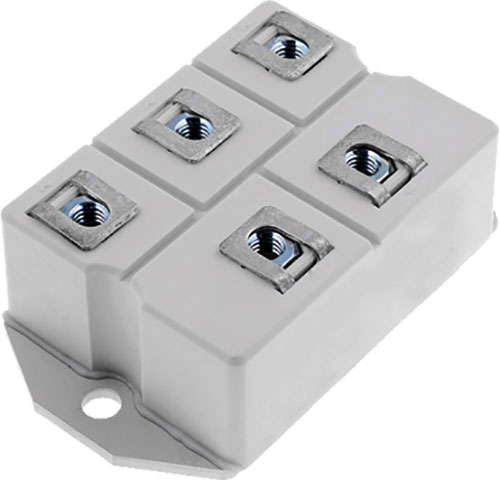

SEMIX251D12FS, SEMIX291D16S, SEMIX341D16S, SEMIX501D17FS, SEMIX526D22P, SEMIX586D16P |EN|
ManufacturerSEMIKRON DANFOSS
Versionmodule
Mech. mountingscrew
Symbol If Ifsm Urmax Electr. mounting Leads Ufmax Structure Features Ugt Igt
[A] [A] [V] [V] [V] [mA]
SEMIX291D16S 232 1.38k 1.6k Press-Fit, screw M6 screws 2.06 - - - -
SEMIX341D16S 348 2.5k 1.7k Press-Fit, screw M6 screws 1.75 - - - -
SEMIX501D17FS 494 2.74k 1.7k Press-Fit, screw M6 screws 1.9 - - - -
SEMIX526D22P 384 5.3k 2.2k Press-Fit - 1.1 - with thermistor (NTC) - -
SEMIX586D16P 392 4.2k 1.6k Press-Fit - 1.2 - with thermistor (NTC) - -
SEMIX636D16P 482 5.5k 1.6k Press-Fit - 1.2 - with thermistor (NTC) - -
SK55D08 55 200 800 Press-in PCB wire Ø 1.5mm 1.25 - - - -
SK55D12 55 200 1.2k Press-in PCB wire Ø 1.5mm 1.25 - - - -
SK55D16 55 200 1.6k Press-in PCB wire Ø 1.5mm 1.25 - - - -
SK70D08 70 270 800 Press-in PCB wire Ø 1.5mm 1.25 - - - -
SK70D12 70 270 1.2k Press-in PCB wire Ø 1.5mm 1.25 - - - -
SK70D16 70 270 1.6k Press-in PCB wire Ø 1.5mm 1.25 - - - -
SK95D08 95 560 800 Press-in PCB wire Ø 1.5mm 1.2 - - - -
SK95D12 95 560 1.2k Press-in PCB wire Ø 1.5mm 1.2 - - - -
SK95D16 95 560 1.6k Press-in PCB wire Ø 1.5mm 1.2 - - - -
SK95D16P 95 560 1.6k Press-Fit - 1.2 - - - -
SKD100/12 100 1k 1.2k screw M5 screws 1.35 - - - -
SKD100/16 100 1k 1.6k screw M5 screws 1.35 - - - -
SKD110/12 110 1.2k 1.2k screw M6 screws 1.9 - - - -
SKD110/16 110 1.2k 1.6k screw M6 screws 1.9 - - - -
SKD110/18 110 1.2k 1.8k screw M6 screws 1.9 - - - -
SKD115/12 110 1.15k 1.2k Press-in PCB 1x1,15mm 1.25 - - - -
SKD115/16 110 1.15k 1.6k Press-in PCB 1x1,15mm 1.25 - - - -
SKD115/18 110 1.15k 1.8k Press-in PCB 1x1,15mm 1.25 - - - -
SKD145/12 140 1.7k 1.2k Press-in PCB 1x1,15mm 1.3 - - - -
SKD145/16 140 1.7k 1.6k Press-in PCB 1x1,15mm 1.3 - - - -
SKD145/18 140 1.7k 1.8k Press-in PCB 1x1,15mm 1.3 - - - -
SKD160/08 205 1.8k 800 screw M6 screws 1.65 - - - -
SKD160/12 205 1.8k 1.2k screw M6 screws 1.65 - - - -
SKD160/16 205 1.8k 1.6k screw M6 screws 1.65 - - - -
SKD160/18 205 1.8k 1.8k screw M6 screws 1.65 - - - -
SKD210/08 207 2k 800 screw M6 screws 1.65 - - - -
SKD210/12 207 2k 1.2k screw M6 screws 1.65 - - - -
SKD210/16 207 2k 1.6k screw M6 screws 1.65 - - - -
SKD210/18 207 2k 1.8k screw M6 screws 1.65 - - - -
SKD30/08A1 30 370 800 screw M4 screws 2.2 - - - -
SKD30/12A1 30 370 1.2k screw M4 screws 2.2 - - - -
SKD30/16A1 30 370 1.6k screw M4 screws 2.2 - - - -
SKD31/08 31 370 800 FASTON connectors connectors 1.75 - - - -
SKD31/12 31 370 1.2k FASTON connectors connectors 1.75 - - - -
SKD31/16 31 370 1.6k FASTON connectors connectors 1.75 - - - -
SKD31F12 31 320 1.2k FASTON connectors connectors 1.75 - fast switching - -
SKD31F16 31 320 1.6k FASTON connectors connectors 1.75 - fast switching - -
SKD33/16 33 240 1.6k FASTON connectors connectors 1.6 - - - -
SKD53/12 53 270 1.2k FASTON connectors connectors 1.5 - - - -
SKD53/16 53 270 1.6k FASTON connectors connectors 1.5 - - - -
SKD53/18 53 270 1.8k FASTON connectors connectors 1.5 - - - -
SKD62/04 60 500 400 screw M5 screws 1.8 - - - -
SKD62/12 60 500 1.2k screw M5 screws 1.8 - - - -
SKD62/16 60 500 1.6k screw M5 screws 1.8 - - - -
SKD62/18 60 500 1.8k screw M5 screws 1.8 - - - -
SKD82/12 80 750 1.2k screw M5 screws 1.6 - - - -
SKD82/16 80 750 1.6k screw M5 screws 1.6 - - - -
SKD82/18 80 750 1.8k screw M5 screws 1.6 - - - -
SKD83/12 83 560 1.2k FASTON connectors connectors 1.45 - - - -
SKD83/16 83 560 1.6k FASTON connectors connectors 1.45 - - - -
SKD83/18 83 560 1.8k FASTON connectors connectors 1.45 - - - -
SKDM60/16A1 60 320 1.6k screw M4 screws 2.2 common cathode - - -
SKDN60/12A1 60 320 1.2k screw M4 screws 2.2 common anode - - -
SKDN60/16A1 60 320 1.6k screw M4 screws 2.2 common anode - - -
SEMIX241DH16S 240 1.9k 1.6k Press-Fit, screw M6 screws 1.9 - - 3 150
SEMIX245DH16 336 1.8k 1.6k Press-Fit, screw M6 screws 1.28 - with thermistor (NTC) 1.65 100
SEMIX365DH16 484 2.75k 1.6k Press-Fit, screw M6 screws 1.28 - with thermistor (NTC) 1.65 100
SK40DH08 42 270 800 Press-in PCB wire Ø 1.5mm 2.45 - - 2 100
SK40DH12 42 270 1.2k Press-in PCB wire Ø 1.5mm 2.45 - - 2 100
SK40DH16 42 270 1.6k Press-in PCB wire Ø 1.5mm 2.45 - - 2 100
SK70DH08 68 270 800 Press-in PCB wire Ø 1.5mm 1.9 - - 2 100
SK70DH12 68 270 1.2k Press-in PCB wire Ø 1.5mm 1.9 - - 2 100
SK70DH16 68 270 1.6k Press-in PCB wire Ø 1.5mm 1.9 - - 2 100
SKDH100/08 100 850 800 FASTON connectors, screw M5 screws 1.95 - - 3 150
SKDH100/12 100 850 1.2k FASTON connectors, screw M5 screws 1.95 - - 3 150
SKDH100/14 100 850 1.4k FASTON connectors, screw M5 screws 1.95 - - 3 150
SK40DT08 42 280 800 Press-in PCB wire Ø 1.5mm 2.45 - - 2 100
SK40DT12 42 280 1.2k Press-in PCB wire Ø 1.5mm 2.45 - - 2 100
SK40DT16 42 280 1.6k Press-in PCB wire Ø 1.5mm 2.45 - - 2 100
SK70DT08 68 380 800 Press-in PCB wire Ø 1.5mm 1.9 - - 2 100
SK70DT12 68 380 1.2k Press-in PCB wire Ø 1.5mm 1.9 - - 2 100
SK70DT16 68 380 1.6k Press-in PCB wire Ø 1.5mm 1.9 - - 2 100
SKDT100/08 100 1k 800 FASTON connectors, screw M5 screws 1.95 - - 3 150
SKDT100/12 100 1k 1.2k FASTON connectors, screw M5 screws 1.95 - - 3 150
SKDT100/14 100 1k 1.4k FASTON connectors, screw M5 screws 1.95 - - 3 150
Symbol: (SEMIX291D16S, SEMIX341D16S, SEMIX501D17FS)
Bridge rectifierthree-phase
CaseSEMIX®13
Symbol: (SEMIXxxxP)
Bridge rectifierthree-phase
CaseSEMiX® 6p
Symbol: (SK55Dxx, SK70D08, SK70D12, SK70D16, SK95D08, SK95D12, SK95D16)
Bridge rectifierthree-phase
CaseSEMITOP2
Symbol: (SK95D16P)
Bridge rectifierthree-phase
CaseSEMITOP2-P
Symbol: (SKD100/12, SKD100/16)
Bridge rectifierthree-phase
CaseSEMIPONT2
Symbol: (SKD110/1x, SKD160/xx, SKD210/xx)
Bridge rectifierthree-phase
CaseSEMIPONT4
Symbol: (SKD115/1x, SKD145/1x)
Bridge rectifierthree-phase
CaseSEMIPONT5
Symbol: (SKD30/xxA1)
Bridge rectifierthree-phase
CaseG13 55x45x24
Symbol: (SKD31xxx)
Bridge rectifierthree-phase
CaseSEMIPONT1
Leads dimensions6.3x0.8mm
Symbol: (SKD33/16, SKD53/1x, SKD83/1x)
Bridge rectifierthree-phase
CaseG55 63,5x29,5x17
Leads dimensions2x0.5mm
Symbol: (SKD62/xx, SKD82/1x)
Bridge rectifierthree-phase
CaseSEMIPONT3
Symbol: (SKDM60/16A1, SKDN60/12A1, SKDN60/16A1)
Bridge rectifierthree-phase
CaseG13 mod
Symbol: (SEMIX241DH16S)
Bridge rectifierhalf-controlled
CaseSEMIX®13
Symbol: (SEMIX245DH16, SEMIX365DH16)
Bridge rectifierhalf-controlled
CaseSEMiX® 5
Symbol: (SK40DHxx, SK70DHxx)
Bridge rectifierhalf-controlled
CaseSEMITOP3
Symbol: (SKDH100/xx)
Bridge rectifierhalf-controlled
CaseSEMIPONT2
Symbol: (SK40DTxx, SK70DTxx)
Bridge rectifierfull-controlled
CaseSEMITOP3
Symbol: (SKDT100/xx)
Bridge rectifierfull-controlled
CaseSEMIPONT2
