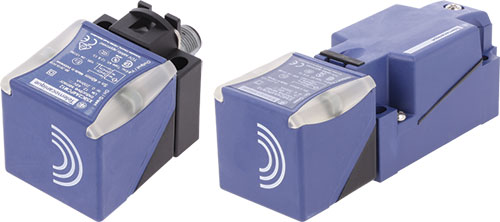

Sensor: inductive; IP67; TELEMECANIQUE SENSORS
| Manufacturer | TELEMECANIQUE SENSORS |
| Type of sensor | inductive |
| Operating temperature | -25...70°C |
| IP rating | IP67 |
| Symbol | Kind of forehead | Range | Output conf. | Usup | Usup |
|---|---|---|---|---|---|
| [mm] | [V DC] | [V AC] | |||
| XS7J1A1DAL2 | embedded | 0...2.5 | 2-wire NO | 12...24 | - |
| XS7J1A1NAL2 | embedded | 0...2.5 | NPN / NO | 12...24 | - |
| XS7J1A1PAL01M8 | embedded | 0...2.5 | PNP / NO | 12...24 | - |
| XS7J1A1PAL2 | embedded | 0...2.5 | PNP / NO | 12...24 | - |
| XS7F1A1DAL2 | embedded | 0...5 | 2-wire NO | 12...24 | - |
| XS7F1A1NAL2 | embedded | 0...5 | NPN / NO | 12...24 | - |
| XS7F1A1PAL01M8 | embedded | 0...5 | PNP / NO | 12...24 | - |
| XS7F1A1PAL2 | embedded | 0...5 | PNP / NO | 12...24 | - |
| XS7E1A1DAL01M12 | embedded | 0...10 | 2-wire NO | 12...24 | - |
| XS7E1A1DAL2 | embedded | 0...10 | 2-wire NO | 12...24 | - |
| XS7E1A1NAL2 | embedded | 0...10 | NPN / NO | 12...24 | - |
| XS7E1A1PAL01M12 | embedded | 0...10 | PNP / NO | 12...24 | - |
| XS7E1A1PAL2 | embedded | 0...10 | PNP / NO | 12...24 | - |
| XS7E1A1PAM8 | embedded | 0...10 | PNP / NO | 12...24 | - |
| XS7C1A1DAL2 | embedded | 0...15 | 2-wire NO | 12...24 | - |
| XS7C1A1DAM8 | embedded | 0...15 | 2-wire NO | 12...24 | - |
| XS7C1A1PAL01M12 | embedded | 0...15 | PNP / NO | 12...24 | - |
| XS7C1A1PAL2 | embedded | 0...15 | PNP / NO | 12...24 | - |
| XS7C1A1PAM8 | embedded | 0...15 | PNP / NO | 12...24 | - |
| XS7C4A1DPG13 | embedded | 0...15 | 2-wire NO/NC | 12...48 | - |
| XS7C4A1MPG13 | embedded | 0...15 | 2-wire NO/NC | 24...240 | 24...240 |
| XS8E1A1MAL2 | non-embedded | 0...15 | 2-wire NO | 24...240 | 24...240 |
| XS8E1A1NAL2 | non-embedded | 0...15 | NPN / NO | 12...24 | - |
| XS8E1A1PAL01M12 | non-embedded | 0...15 | PNP / NO | 12...24 | - |
| XS8E1A1PAL2 | non-embedded | 0...15 | PNP / NO | 12...24 | - |
| XS8E1A1PAM8 | non-embedded | 0...15 | PNP / NO | 12...24 | - |
| XS8C2A1DAM12 | embedded | 0...20 | 2-wire NO | 12...48 | - |
| XS8C2A1MAU20 | embedded | 0...20 | 2-wire NO | 24...240 | 24...240 |
| XS8C2A1PCM12 | embedded | 0...20 | PNP / NO + NC | 12...48 | - |
| XS8C4A1DPG13 | embedded | 0...20 | 2-wire NO/NC | 12...48 | - |
| XS8C4A1DPN12 | embedded | 0...20 | 2-wire NO/NC | 12...48 | - |
| XS8C4A1DPP20 | embedded | 0...20 | 2-wire NO/NC | 12...48 | - |
| XS8C4A1MPG13 | embedded | 0...20 | 2-wire NO/NC | 24...240 | 24...240 |
| XS8C4A1MPN12 | embedded | 0...20 | 2-wire NO/NC | 24...240 | 24...240 |
| XS8C4A1MPP20 | embedded | 0...20 | 2-wire NO/NC | 24...240 | 24...240 |
| XS8C4A1NCG13 | embedded | 0...20 | NPN / NO + NC | 12...48 | - |
| XS8C4A1NCP20 | embedded | 0...20 | NPN / NO + NC | 12...48 | - |
| XS8C4A1PCG13 | embedded | 0...20 | PNP / NO + NC | 12...48 | - |
| XS8C4A1PCM12 | embedded | 0...20 | PNP / NO + NC | 12...48 | - |
| XS8C4A1PCN12 | embedded | 0...20 | PNP / NO + NC | 12...48 | - |
| XS8C4A1PCP20 | embedded | 0...20 | PNP / NO + NC | 12...48 | - |
| XS8C4A2PCP20 | embedded | 0...20 | PNP / NO + NC | 12...48 | - |
| XS8C1A1MAL2 | non-embedded | 0...25 | 2-wire NO | 24...240 | 24...240 |
| XS8C1A1NAL01M12 | non-embedded | 0...25 | NPN / NO | 12...24 | - |
| XS8C1A1NAL2 | non-embedded | 0...25 | NPN / NO | 12...24 | - |
| XS8C1A1PAL01M12 | non-embedded | 0...25 | PNP / NO | 12...24 | - |
| XS8C1A1PAL2 | non-embedded | 0...25 | PNP / NO | 12...24 | - |
| XS8C1A1PAM8 | non-embedded | 0...25 | PNP / NO | 12...24 | - |
| XS7D1A1DAL2 | non-embedded | 0...40 | 2-wire NO | 12...24 | - |
| XS7D1A1DAM12 | non-embedded | 0...40 | 2-wire NO | 12...24 | - |
| XS7D1A1NAL2 | non-embedded | 0...40 | NPN / NO | 12...24 | - |
| XS7D1A1PAL2 | non-embedded | 0...40 | PNP / NO | 12...24 | - |
| XS7D1A1PAM12 | non-embedded | 0...40 | PNP / NO | 12...24 | - |
| XS8C2A4DAM12 | non-embedded | 0...40 | 2-wire NO | 12...48 | - |
| XS8C2A4MAU20 | non-embedded | 0...40 | 2-wire NO | 24...240 | 24...240 |
| XS8C2A4PCM12 | non-embedded | 0...40 | PNP / NO + NC | 12...48 | - |
| XS8C4A4DPP20 | non-embedded | 0...40 | 2-wire NO/NC | 12...48 | - |
| XS8C4A4MPG13 | non-embedded | 0...40 | 2-wire NO/NC | 24...240 | 24...240 |
| XS8C4A4MPN12 | non-embedded | 0...40 | 2-wire NO/NC | 24...240 | 24...240 |
| XS8C4A4MPP20 | non-embedded | 0...40 | 2-wire NO/NC | 24...240 | 24...240 |
| XS8C4A4NCG13 | non-embedded | 0...40 | NPN / NO + NC | 12...48 | - |
| XS8C4A4NCP20 | non-embedded | 0...40 | NPN / NO + NC | 12...48 | - |
| XS8C4A4PCG13 | non-embedded | 0...40 | PNP / NO + NC | 12...48 | - |
| XS8C4A4PCN12 | non-embedded | 0...40 | PNP / NO + NC | 12...48 | - |
| XS8C4A4PCP20 | non-embedded | 0...40 | PNP / NO + NC | 12...48 | - |
| XS8D1A1MAL2 | non-embedded | 0...60 | 2-wire NO | 24...240 | 24...240 |
| XS8D1A1MAU20 | non-embedded | 0...60 | 2-wire NO | 24...240 | 24...240 |
| XS8D1A1NAL2 | non-embedded | 0...60 | NPN / NO | 12...24 | - |
| XS8D1A1PAL2 | non-embedded | 0...60 | PNP / NO | 12...24 | - |
| XS8D1A1PAM12 | non-embedded | 0...60 | PNP / NO | 12...24 | - |
| Symbol | Connection | Number of pins | Max. operating current | fswitch. max | Lead length |
|---|---|---|---|---|---|
| [mA] | [Hz] | [m] | |||
| XS7J1A1DAL2 | cables | - | 100 | 4000 | 2 |
| XS7J1A1NAL2 | cables | - | 100 | 2000 | 2 |
| XS7J1A1PAL01M8 | M8, cables | 3 | 100 | 2000 | 0.15 |
| XS7J1A1PAL2 | cables | - | 100 | 2000 | 2 |
| XS7F1A1DAL2 | cables | - | 100 | 5000 | 2 |
| XS7F1A1NAL2 | cables | - | 100 | 2000 | 2 |
| XS7F1A1PAL01M8 | M8, cables | 3 | 100 | 2000 | 0.15 |
| XS7F1A1PAL2 | cables | - | 100 | 2000 | 2 |
| XS7E1A1DAL01M12 | M12, cables | 4 | 100 | 1000 | 0.15 |
| XS7E1A1DAL2 | cables | - | 100 | 1000 | 2 |
| XS7E1A1NAL2 | cables | - | 100 | 1000 | 2 |
| XS7E1A1PAL01M12 | M12, cables | 4 | 100 | 1000 | 0.15 |
| XS7E1A1PAL2 | cables | - | 100 | 1000 | 2 |
| XS7E1A1PAM8 | M8 male | 3 | 100 | 1000 | - |
| XS7C1A1DAL2 | cables | - | 100 | 1000 | 2 |
| XS7C1A1DAM8 | M8 male | 3 | 100 | 1000 | - |
| XS7C1A1PAL01M12 | M12, cables | 4 | 100 | 1000 | 0.15 |
| XS7C1A1PAL2 | cables | - | 100 | 1000 | 2 |
| XS7C1A1PAM8 | M8 male | 3 | 100 | 1000 | - |
| XS7C4A1DPG13 | PG13,5, screw terminals | - | 100 | - | - |
| XS7C4A1MPG13 | PG13,5, screw terminals | - | 100 | - | - |
| XS8E1A1MAL2 | cables | - | 200 | 2000 | 2 |
| XS8E1A1NAL2 | cables | - | 100 | 2000 | 2 |
| XS8E1A1PAL01M12 | M12, cables | 4 | 100 | 2000 | 0.15 |
| XS8E1A1PAL2 | cables | - | 100 | 2000 | 2 |
| XS8E1A1PAM8 | M8 male | 3 | 100 | 2000 | - |
| XS8C2A1DAM12 | M12 male | 4 | 100 | 300 | - |
| XS8C2A1MAU20 | connector 1/2”-20 UNF | - | 300 | 300 | - |
| XS8C2A1PCM12 | M12 male | 4 | 200 | 300 | - |
| XS8C4A1DPG13 | PG13,5, screw terminals | - | 200 | 300 | - |
| XS8C4A1DPN12 | 1/2" NPT, screw terminals | - | 200 | 300 | - |
| XS8C4A1DPP20 | M20 x 1,5, screw terminals | - | 200 | 300 | - |
| XS8C4A1MPG13 | PG13,5, screw terminals | - | 200 | 300 | - |
| XS8C4A1MPN12 | 1/2" NPT, screw terminals | - | 200 | 300 | - |
| XS8C4A1MPP20 | M20 x 1,5, screw terminals | - | 200 | 300 | - |
| XS8C4A1NCG13 | PG13,5, screw terminals | - | 200 | 300 | - |
| XS8C4A1NCP20 | M20 x 1,5, screw terminals | - | 200 | 300 | - |
| XS8C4A1PCG13 | PG13,5, screw terminals | - | 200 | 300 | - |
| XS8C4A1PCM12 | M12 male | 4 | 200 | 300 | - |
| XS8C4A1PCN12 | 1/2" NPT, screw terminals | - | 200 | 300 | - |
| XS8C4A1PCP20 | M20 x 1,5, screw terminals | - | 200 | 300 | - |
| XS8C4A2PCP20 | M20 x 1,5, screw terminals | - | 200 | 300 | - |
| XS8C1A1MAL2 | cables | - | 200 | 1000 | 2 |
| XS8C1A1NAL01M12 | M12, cables | 4 | 200 | 1000 | 0.15 |
| XS8C1A1NAL2 | cables | - | 200 | 1000 | 2 |
| XS8C1A1PAL01M12 | M12, cables | 4 | 200 | 1000 | 0.15 |
| XS8C1A1PAL2 | cables | - | 200 | 1000 | 2 |
| XS8C1A1PAM8 | M8 male | 3 | 200 | 1000 | - |
| XS7D1A1DAL2 | cables | - | 100 | 100 | 2 |
| XS7D1A1DAM12 | M12 male | 4 | 100 | 100 | - |
| XS7D1A1NAL2 | cables | - | 100 | 100 | 2 |
| XS7D1A1PAL2 | cables | - | 100 | 100 | 2 |
| XS7D1A1PAM12 | M12 male | 4 | 100 | 100 | - |
| XS8C2A4DAM12 | M12 male | 4 | 100 | 150 | - |
| XS8C2A4MAU20 | connector 1/2”-20 UNF | - | 300 | 150 | - |
| XS8C2A4PCM12 | M12 male | 4 | 200 | 500 | - |
| XS8C4A4DPP20 | M20 x 1,5, screw terminals | - | 200 | 150 | - |
| XS8C4A4MPG13 | PG13,5, screw terminals | - | 200 | 25 | - |
| XS8C4A4MPN12 | 1/2" NPT, screw terminals | - | 200 | 25 | - |
| XS8C4A4MPP20 | M20 x 1,5, screw terminals | - | 200 | 25 | - |
| XS8C4A4NCG13 | PG13,5, screw terminals | - | 200 | 200 | - |
| XS8C4A4NCP20 | M20 x 1,5, screw terminals | - | 200 | 200 | - |
| XS8C4A4PCG13 | PG13,5, screw terminals | - | 200 | 200 | - |
| XS8C4A4PCN12 | 1/2" NPT, screw terminals | - | 200 | 200 | - |
| XS8C4A4PCP20 | M20 x 1,5, screw terminals | - | 200 | 200 | - |
| XS8D1A1MAL2 | cables | - | 200 | 150 | 2 |
| XS8D1A1MAU20 | connector 1/2”-20 UNF | - | 200 | 150 | - |
| XS8D1A1NAL2 | cables | - | 200 | 150 | 2 |
| XS8D1A1PAL2 | cables | - | 200 | 150 | 2 |
| XS8D1A1PAM12 | M12 male | 4 | 200 | 150 | - |
