Sensor: liquid level; LS02; MEDER
| Manufacturer | MEDER |
| Type of sensor | liquid level |
| Features | sensor for vertical mounting |
| Manufacturer series | LS02 |
| Symbol | Output conf. | Pswitch. | Ioper. max | Uoper max | Uoper. max | Lead length | Operating temp. |
|---|---|---|---|---|---|---|---|
| [W] | [A] | [V DC] | [V AC] | [m] | [°C] | ||
| LS02-1A66-PA-500W | SPST-NO | 10 | 0.5 | 200 | 200 | 0.5 | -20...90 |
| LS02-1A66-PP-500W | SPST-NO | 10 | 0.5 | 200 | 200 | 0.5 | -20...90 |
| LS02-1A85-PP-500W | SPST-NO | 100 | 1 | 1000 | 1000 | 0.5 | -55...130 |
| LS02-1B66-PA-500W | SPST-NC | 10 | 0.5 | 200 | 200 | 0.5 | -20...90 |
| LS02-1B66-PP-500W | SPST-NC | 10 | 0.5 | 200 | 200 | 0.5 | -20...90 |
| LS02-1B85-PP-500W | SPST-NC | 100 | 1 | 1000 | 1000 | 0.5 | -55...130 |
| LS02-1A66-S-500W | SPST-NO | 10 | 0.5 | 200 | 200 | 0.5 | -30...80 |
| LS02-1B66-S-500W | SPST-NC | 10 | 0.5 | 200 | 200 | 0.5 | -30...80 |
| LS02-BV14402 | SPST-NO | 10 | 1.25 | 180 | 180 | - | -30...80 |
| Symbol | Connection | Body mat. | Application | Dimensions |
|---|---|---|---|---|

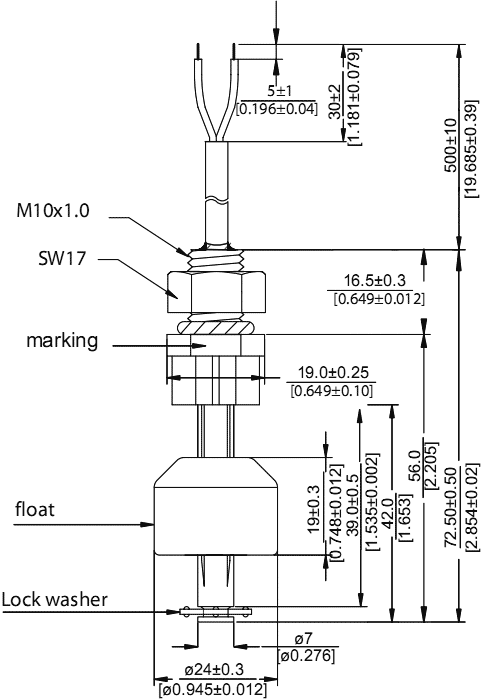

| LS02-1A66-PA-500W | cables | polyamide | gasoline, oil, brake fluid | Fig. 1. |
| LS02-1A66-PP-500W | cables | polypropylene | dilute acids, water | Fig. 1. |
| LS02-1A85-PP-500W | cables | polypropylene | dilute acids, water | Fig. 1. |
| LS02-1B66-PA-500W | cables | polyamide | gasoline, oil, brake fluid | Fig. 1. |
| LS02-1B66-PP-500W | cables | polypropylene | dilute acids, water | Fig. 1. |
| LS02-1B85-PP-500W | cables | polypropylene | dilute acids, water | Fig. 1. |

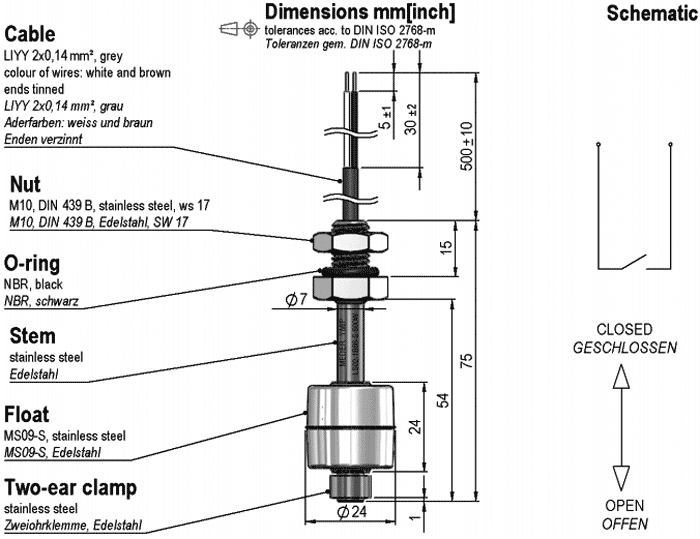

| LS02-1A66-S-500W | cables | stainless steel | - | Fig. 2. |

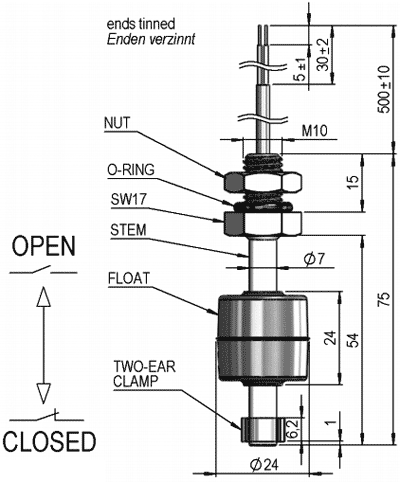

| LS02-1B66-S-500W | cables | stainless steel | - | Fig. 3. |

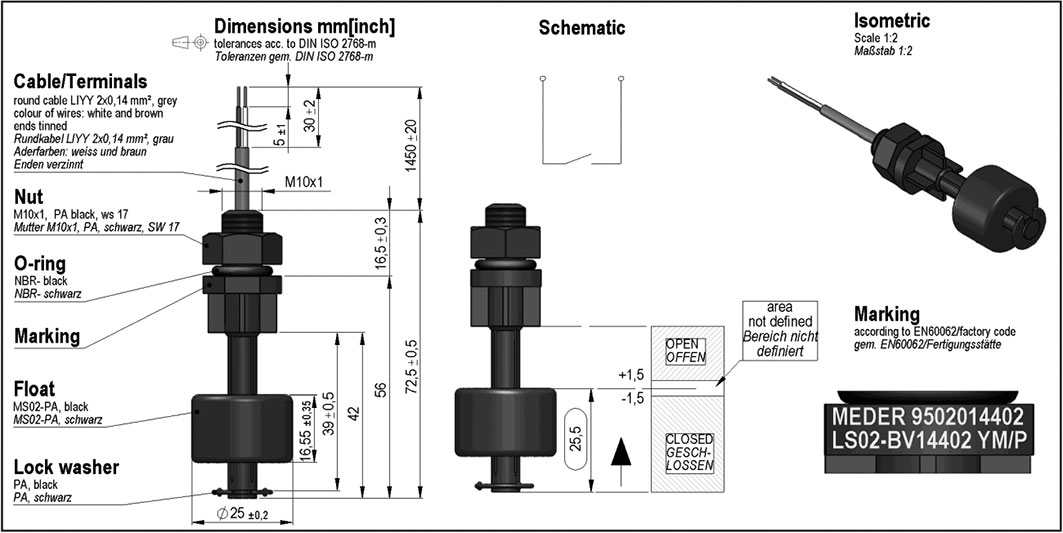

| LS02-BV14402 | - | polyurethane | - | Fig. 4. |
