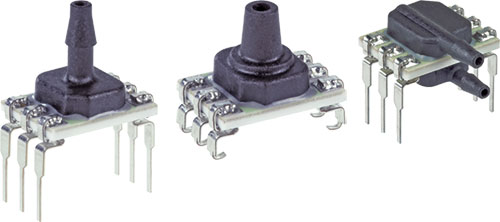

Sensor: pressure; HONEYWELL
| Manufacturer | HONEYWELL |
| Type of sensor | pressure |
| Symbol | Operation mode | Pressure measuring range | Output conf. | Usup | Case |
|---|---|---|---|---|---|
| [V DC] | |||||
| ABPDANN001PGAA5 | gage | 0...1psi | analogue | 5 | DIP |
| ABPDANN005PG2A3 | gage | 0...5psi | I2C | 3.3 | DIP |
| ABPDANN010BG2A3 | gage | 0...10bar | I2C | 3.3 | DIP |
| ABPDANT015PGAA5 | gage | 0...15psi | analogue | 5 | DIP |
| ABPDJJN010KG2A3 | gage | 0...10kPa | I2C | 3.3 | DIP |
| ABPDLNN100MG2A3 | gage | 0...100mbar | I2C | 3.3 | DIP |
| ABPDRRT005PG2A5 | gage | 0...5psi | I2C | 5 | DIP |
| ABPLANN001PG2A5 | gage | 0...1psi | I2C | 5 | - |
| ABPLANT005PG2A3 | gage | 0...5psi | I2C | 3.3 | - |
| ABPLANT160MGAA5 | gage | 0...160mbar | analogue | 5 | - |
| ABPLLNN600MGAA3 | gage | 0...600mbar | analogue | 3.3 | - |
| ABPLLNT010BGAA5 | gage | 0...10bar | analogue | 5 | - |
| ABPMAND001PG2A3 | gage | 0...1psi | I2C | 3.3 | - |
| ABPMANN004BGAA5 | gage | 0...4bar | analogue | 5 | - |
| ABPMANN030PG2A3 | gage | 0...30psi | I2C | 3.3 | - |
| ABPMANT100PG2A3 | gage | 0...100psi | I2C | 3.3 | - |
| ABPMJJT015PGAA5 | gage | 0...15psi | analogue | 5 | - |
| ABPMLNN001PGAA3 | gage | 0...1psi | analogue | 3.3 | - |
| ABPLANT015PD2A5 | differential | -15...15psi | I2C | 5 | - |
| ABPMRRN060MDAA5 | differential | -60...60mbar | analogue | 5 | - |
| ABPMRRN060MDSA3 | differential | -60...60mbar | SPI | 3.3 | - |
| ABPDANN006BG2A3 | gage | 0...6bar | I2C | 3.3 | DIP |
| ABPDANN010BGAA5 | gage | 0...10bar | analogue | 5 | DIP |
| ABPDANN030PG0D3 | gage | 0...30psi | I2C | 3.3 | DIP |
| ABPDANN030PGAA5 | gage | 0...30psi | analogue | 5 | DIP |
| ABPDANN060MD0A5 | differential | -60...60mbar | I2C | 5 | DIP |
| ABPDANN060PGAA5 | gage | 0...60psi | analogue | 5 | DIP |
| ABPDANN100MGAA5 | gage | 0...100mbar | analogue | 5 | DIP |
| ABPDANN150PGAA5 | gage | 0...150psi | analogue | 5 | DIP |
| ABPDANT006BGAA5 | gage | 0...6bar | analogue | 5 | DIP |
| ABPDANT006KGSA5 | gage | 0...6kPa | SPI | 5 | DIP |
| ABPDANT030PG0D3 | gage | 0...30psi | I2C | 3.3 | DIP |
| ABPDANT030PG0D5 | gage | 0...30psi | I2C | 5 | DIP |
| ABPDANT060MGAA5 | gage | 0...60mbar | analogue | 5 | DIP |
| ABPDANT100PGAA5 | gage | 0...100psi | analogue | 5 | DIP |
| ABPDANT150PG4A5 | gage | 0...150psi | I2C | 5 | DIP |
| ABPDANT150PGAA5 | gage | 0...150psi | analogue | 5 | DIP |
| ABPDANV001BD2A5 | differential | -1...1bar | I2C | 5 | DIP |
| ABPDANV005PGSA5 | gage | 0...5psi | SPI | 5 | DIP |
| ABPDANV015PGAA5 | gage | 0...15psi | analogue | 5 | DIP |
| ABPDANV015PGSA3 | gage | 0...15psi | SPI | 3.3 | DIP |
| ABPDANV030PGAA5 | gage | 0...30psi | analogue | 5 | DIP |
| ABPDANV030PGSA3 | gage | 0...30psi | SPI | 3.3 | DIP |
| ABPDANV030PGSA5 | gage | 0...30psi | SPI | 5 | DIP |
| ABPDANV060PGAA5 | gage | 0...60psi | analogue | 5 | DIP |
| ABPDANV060PGSA3 | gage | 0...60psi | SPI | 3.3 | DIP |
| ABPDANV150PGAA5 | gage | 0...150psi | analogue | 5 | DIP |
| ABPDANV150PGSA3 | gage | 0...150psi | SPI | 3.3 | DIP |
| ABPDJJT001PDSA3 | differential | -1...1psi | SPI | 3.3 | DIP |
| ABPDJNN001PDAA3 | differential | -1...1psi | analogue | 3.3 | DIP |
| ABPDLNN030PGAA3 | gage | 0...30psi | analogue | 3.3 | DIP |
| ABPDLNT060MGAA5 | gage | 0...60mbar | analogue | 5 | DIP |
| ABPDLNT150PGAA3 | gage | 0...150psi | analogue | 3.3 | DIP |
| ABPDLNT150PGAA5 | gage | 0...150psi | analogue | 5 | DIP |
| ABPDLNV150PGSD3 | gage | 0...150psi | SPI | 3.3 | DIP |
| ABPDNNT001BDAA5 | differential | -1...1bar | analogue | 5 | DIP |
| ABPDRNT150PGAA3 | gage | 0...150psi | analogue | 3.3 | DIP |
| ABPDRNT150PGAA5 | gage | 0...150psi | analogue | 5 | DIP |
| ABPDRNV150PGSA3 | gage | 0...150psi | SPI | 3.3 | DIP |
| ABPDRRN001BDAA5 | differential | -1...1bar | analogue | 5 | DIP |
| ABPDRRN060MGSA5 | gage | 0...60mbar | SPI | 5 | DIP |
| ABPDRRN100MDAA5 | differential | -100...100mbar | analogue | 5 | DIP |
| ABPDRRT005PG2A3 | gage | 0...5psi | I2C | 3.3 | DIP |
| ABPDRRT015PG0D5 | gage | 0...15psi | I2C | 5 | DIP |
| ABPDRRT015PG3D3 | gage | 0...15psi | I2C | 3.3 | DIP |
| ABPDRRT100MGAA3 | gage | 0...100mbar | analogue | 3.3 | DIP |
| ABPDRRT100MGAA5 | gage | 0...100mbar | analogue | 5 | DIP |
| ABPDRRV001PDAA5 | differential | -1...1psi | analogue | 5 | DIP |
| ABPDRRV001PDSA3 | differential | -1...1psi | SPI | 3.3 | DIP |
| ABPDRRV015PDAA5 | differential | -15...15psi | analogue | 5 | DIP |
| ABPDRRV060MG0S3 | gage | 0...60mbar | I2C | 3.3 | DIP |
| ABPDRRV060MGAA5 | gage | 0...60mbar | analogue | 5 | DIP |
| ABPDRRV060MGSA3 | gage | 0...60mbar | SPI | 3.3 | DIP |
| ABPDRRV600MGAA5 | gage | 0...600mbar | analogue | 5 | DIP |
| ABPDRRV600MGSA3 | gage | 0...600mbar | SPI | 3.3 | DIP |
| ABPLANN015PDAA3 | differential | -15...15psi | analogue | 3.3 | - |
| ABPLANN030PGAA3 | gage | 0...30psi | analogue | 3.3 | - |
| ABPLANN100PGAA5 | gage | 0...100psi | analogue | 5 | - |
| ABPLANT001PG2A5 | gage | 0...1psi | I2C | 5 | - |
| ABPLANV001PG0A3 | gage | 0...1psi | I2C | 3.3 | - |
| ABPLLNN015PDAA5 | differential | -15...15psi | analogue | 5 | - |
| ABPLLNN015PGST5 | gage | 0...15psi | SPI | 5 | - |
| ABPLLNN030PGST5 | gage | 0...30psi | SPI | 5 | - |
| ABPLLNN060MGSA3 | gage | 0...60mbar | SPI | 3.3 | - |
| ABPLLNN150PGAA3 | gage | 0...150psi | analogue | 3.3 | - |
| ABPLLNN150PGAA5 | gage | 0...150psi | analogue | 5 | - |
| ABPLLNN150PGST5 | gage | 0...150psi | SPI | 5 | - |
| ABPLLNN400MG2S3 | gage | 0...400mbar | I2C | 3.3 | - |
| ABPLLNT001GGAA5 | gage | 0...1MPa | analogue | 5 | - |
| ABPLLNT060MGSA3 | gage | 0...60mbar | SPI | 3.3 | - |
| ABPLLNT1.6BDAA3 | differential | -1.6...1.6bar | analogue | 3.3 | - |
| ABPLLNV001PG0A3 | gage | 0...1psi | I2C | 3.3 | - |
| ABPLLNV010BGSD3 | gage | 0...10bar | SPI | 3.3 | - |
| ABPLLNV600MG0S3 | gage | 0...600mbar | I2C | 3.3 | - |
| ABPLNNN001PG2A3 | gage | 0...1psi | I2C | 3.3 | - |
| ABPLNNN001PG3A3 | gage | 0...1psi | I2C | 3.3 | - |
| ABPLNNN001PG4A3 | gage | 0...1psi | I2C | 3.3 | - |
| ABPLNNN005PDAA5 | differential | -5...5psi | analogue | 5 | - |
| ABPLNNN010BGST5 | gage | 0...10bar | SPI | 5 | - |
| ABPLNNN060MGSA3 | gage | 0...60mbar | SPI | 3.3 | - |
| ABPLNNT006KDSS3 | differential | -6...6kPa | SPI | 3.3 | - |
| ABPLNNV100PG2T3 | gage | 0...100psi | I2C | 3.3 | - |
| ABPLNNV400KD2T3 | differential | -400...400kPa | I2C | 3.3 | - |
| ABPMANN016KGAA5 | gage | 0...16kPa | analogue | 5 | - |
| ABPMANN030PG0D3 | gage | 0...30psi | I2C | 3.3 | - |
| ABPMANN060KGSA3 | gage | 0...60kPa | SPI | 3.3 | - |
| ABPMANN100PG2A3 | gage | 0...100psi | I2C | 3.3 | - |
| ABPMANN600MGAA3 | gage | 0...600mbar | analogue | 3.3 | - |
| ABPMANV001PG2A3 | gage | 0...1psi | I2C | 3.3 | - |
| ABPMANV005PGSA5 | gage | 0...5psi | SPI | 5 | - |
| ABPMANV015PG2A3 | gage | 0...15psi | I2C | 3.3 | - |
| ABPMANV015PG7A5 | gage | 0...15psi | I2C | 5 | - |
| ABPMANV015PGAA5 | gage | 0...15psi | analogue | 5 | - |
| ABPMANV030PG2A3 | gage | 0...30psi | I2C | 3.3 | - |
| ABPMANV030PGAA5 | gage | 0...30psi | analogue | 5 | - |
| ABPMANV030PGSA5 | gage | 0...30psi | SPI | 5 | - |
| ABPMANV060PG2A3 | gage | 0...60psi | I2C | 3.3 | - |
| ABPMANV060PGAA5 | gage | 0...60psi | analogue | 5 | - |
| ABPMANV150PG2A3 | gage | 0...150psi | I2C | 3.3 | - |
| ABPMANV150PGAA5 | gage | 0...150psi | analogue | 5 | - |
| ABPMJNN001PDAA3 | differential | -1...1psi | analogue | 3.3 | - |
| ABPMJNN060MG2A3 | gage | 0...60mbar | I2C | 3.3 | - |
| ABPMJNN060MG3A3 | gage | 0...60mbar | I2C | 3.3 | - |
| ABPMLNN030PGAA5 | gage | 0...30psi | analogue | 5 | - |
| ABPMLNV006KG2A3 | gage | 0...6kPa | I2C | 3.3 | - |
| ABPMLNV015PDAA3 | differential | -15...15psi | analogue | 3.3 | - |
| ABPMLNV060PGAA3 | gage | 0...60psi | analogue | 3.3 | - |
| ABPMLNV150PGAA3 | gage | 0...150psi | analogue | 3.3 | - |
| ABPMRNN030PG0A3 | gage | 0...30psi | I2C | 3.3 | - |
| ABPMRNN060KGSA3 | gage | 0...60kPa | SPI | 3.3 | - |
| ABPMRNN060PGAA3 | gage | 0...60psi | analogue | 3.3 | - |
| ABPMRNN2.5BGAA3 | gage | 0...2.5bar | analogue | 3.3 | - |
| ABPMRNN400MDAA3 | differential | -400...400mbar | analogue | 3.3 | - |
| ABPMRNN400MDAA3T | differential | -400...400mbar | analogue | 3.3 | - |
| ABPMRNT060MGSS3 | gage | 0...60mbar | SPI | 3.3 | - |
| ABPMRNT1.6BDAA3 | differential | -1.6...1.6bar | analogue | 3.3 | - |
| ABPMRNT150PGAA3 | gage | 0...150psi | analogue | 3.3 | - |
| ABPMRNT150PGSA3 | gage | 0...150psi | SPI | 3.3 | - |
| ABPMRRN005PD2A3 | differential | -5...5psi | I2C | 3.3 | - |
| ABPMRRN006KDSA3 | differential | -6...6kPa | SPI | 3.3 | - |
| ABPMRRN010KD2A3 | differential | -10...10kPa | I2C | 3.3 | - |
| ABPMRRN015PD2A5 | differential | -15...15psi | I2C | 5 | - |
| ABPMRRN025KD2A3 | differential | -25...25kPa | I2C | 3.3 | - |
| ABPMRRN060MGAA5 | gage | 0...60mbar | analogue | 5 | - |
| ABPMRRN100MDSA3 | differential | -100...100mbar | SPI | 3.3 | - |
| ABPMRRT030PD4A3 | differential | -30...30psi | I2C | 3.3 | - |
| ABPMRRV001PD2A3 | differential | -1...1psi | I2C | 3.3 | - |
| ABPMRRV001PDAA5 | differential | -1...1psi | analogue | 5 | - |
| ABPMRRV015PD2A3 | differential | -15...15psi | I2C | 3.3 | - |
| ABPMRRV015PDAA5 | differential | -15...15psi | analogue | 5 | - |
| ABPMRRV060MG2A3 | gage | 0...60mbar | I2C | 3.3 | - |
| ABPMRRV060MGAA5 | gage | 0...60mbar | analogue | 5 | - |
| ABPMRRV150PGSD3 | gage | 0...150psi | SPI | 3.3 | - |
| ABPMRRV600MG2A3 | gage | 0...600mbar | I2C | 3.3 | - |
| ABPMRRV600MGAA5 | gage | 0...600mbar | analogue | 5 | - |
| ABP2LANT010BG2A3XX | gage | 0...10bar | I2C | 3.3 | - |
| ABP2LANT060PG2A3XX | gage | 0...60psi | I2C | 3.3 | - |
| ABP2LANT150PG2A3XX | gage | 0...150psi | I2C | 3.3 | - |
| ABP2LSNT010BG2A3XX | gage | 0...10bar | I2C | 3.3 | - |
| ABP2DANT001PGSA3XX | gage | 0...1psi | SPI | 3.3 | DIP |
| ABP2DDAN001PD2A3XX | differential | -1...1psi | I2C | 3.3 | DIP |
| ABP2DRNT006KG2A3XX | gage | 0...6kPa | I2C | 3.3 | DIP |
| ABP2DRRN002ND2B3XX | differential | -5...5mbar | I2C | 3.3 | DIP |
| ABP2LANT001PG2A3XX | gage | 0...1psi | I2C | 3.3 | - |
| ABP2LANT160MGSA3XX | gage | 0...160mbar | SPI | 3.3 | - |
| ABP2MRNT016KG2A3XX | gage | 0...16kPa | I2C | 3.3 | - |
| ABP2MRRN005NDSA3XX | differential | -12.5...12.5mbar | SPI | 3.3 | - |
| ABP2MRRT060MD2A3XX | differential | -60...60mbar | I2C | 3.3 | - |
| ABP2MRRT060MDSA3XX | differential | -60...60mbar | SPI | 3.3 | - |
| ABP2DANT001BA2A3XX | absolute | 0...1bar | I2C | 3.3 | DIP |
| ABP2DANT150PGSA3XX | gage | 0...150psi | SPI | 3.3 | DIP |
| ABP2DVNT005PG2A3XX | gage | 0...5psi | I2C | 3.3 | DIP |
| ABP2LANG004BG2A3XX | gage | 0...4bar | I2C | 3.3 | - |
| ABP2LNNT400KA2A3XX | absolute | 0...400kPa | I2C | 3.3 | - |
| ABP2MANT001BA2A3XX | absolute | 0...1bar | I2C | 3.3 | - |
| ABP2MRNT001BG2A3XX | gage | 0...1bar | I2C | 3.3 | - |
| ABP2MRRT005PD2A3XX | differential | -5...5psi | I2C | 3.3 | - |
Operating temperature:
- -40...85°C (ABPDxxx, ABPLxxx, ABPMxxx)
- -40...110°C (ABP2xxx3XX)
Manufacturer series:
- ABP (ABPDxxx, ABPLxxx, ABPMxxx)
- ABP2 (ABP2xxx3XX)
Features:
- covering with fluorosilicone gel (ABP2LANG004BG2A3XX)
- food grade gel coverage (ABP2LANTxxxA3XX, ABP2LSNT010BG2A3XX, ABP2LNNT400KA2A3XX, ABP2DANTxxxA3XX, ABP2DRNT006KG2A3XX, ABP2DVNT005PG2A3XX, ABP2MRNT016KG2A3XX, ABP2MRNT001BG2A3XX, ABP2MRRT0xxxA3XX, ABP2MANT001BA2A3XX)
- silicone gel coating (ABPDANTxxx, ABPDANVxxx, ABPDRRTxxx, ABPDRRVxxx, ABPDRNxxx, ABPDJJT001PDSA3, ABPDLNTxxx, ABPDLNV150PGSD3, ABPDNNT001BDAA5, ABPLANTxxx, ABPLANV001PG0A3, ABPLLNTxxx, ABPLLNVxxx3, ABPLNNT006KDSS3, ABPLNNV100PG2T3, ABPLNNV400KD2T3, ABPMANT100PG2A3, ABPMANVxxx, ABPMJJT015PGAA5, ABPMLNVxxxA3, ABPMRNTxxx3, ABPMRRT030PD4A3, ABPMRRVxxx)
Dimensions:

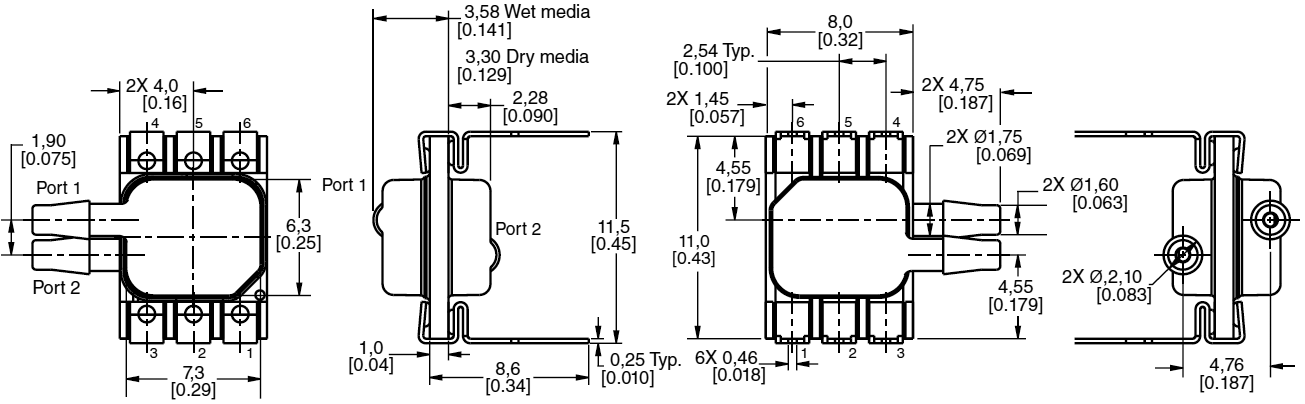

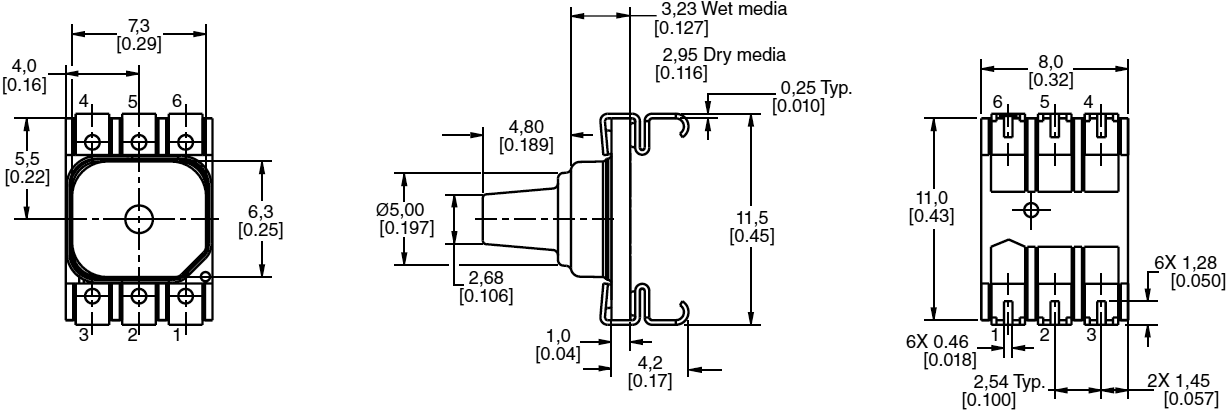

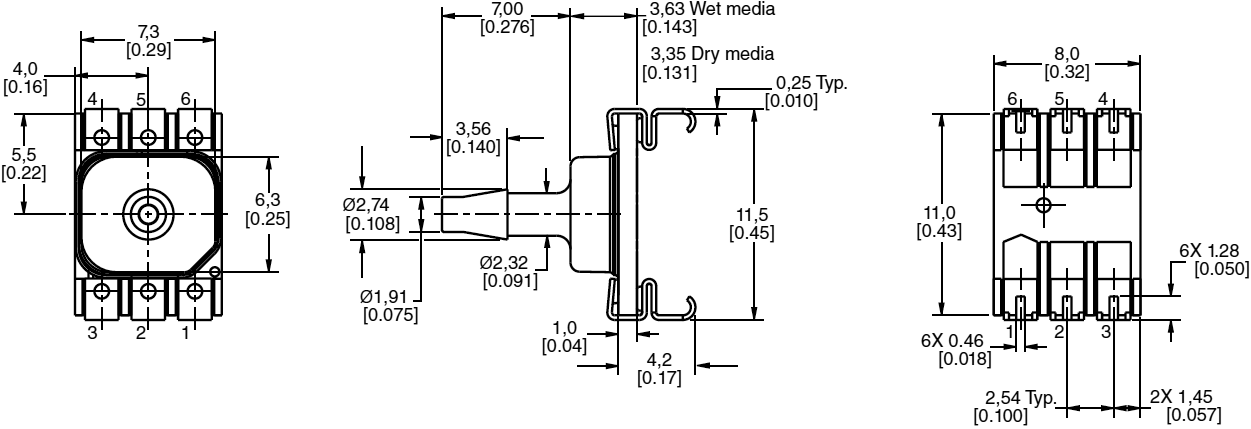

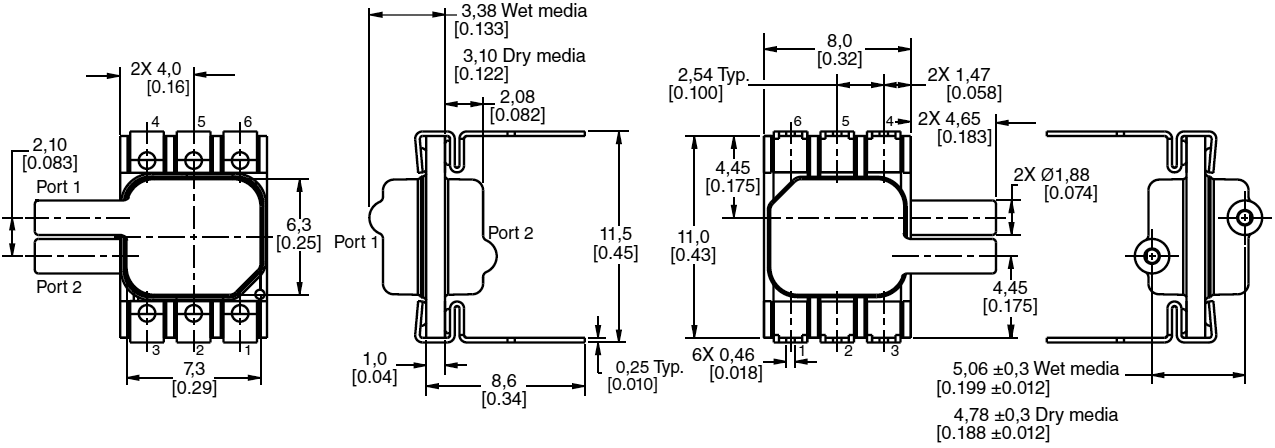

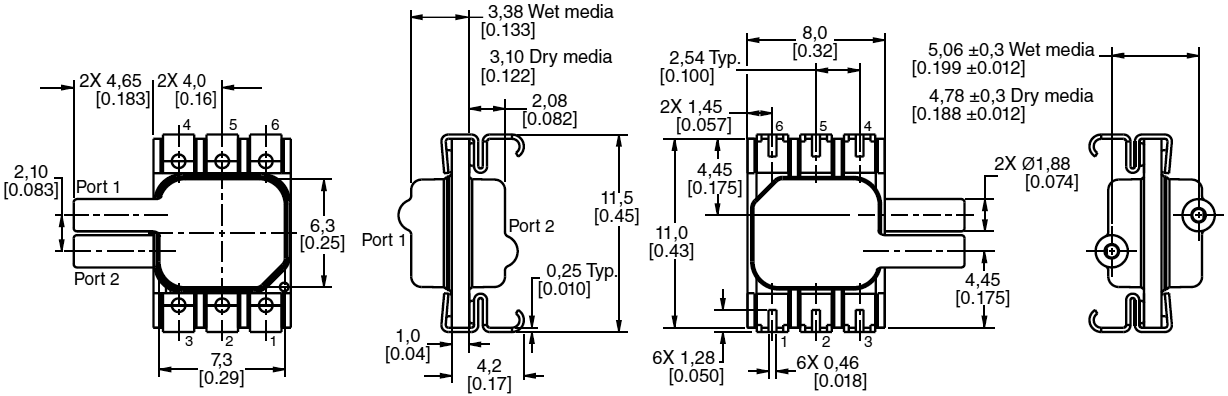

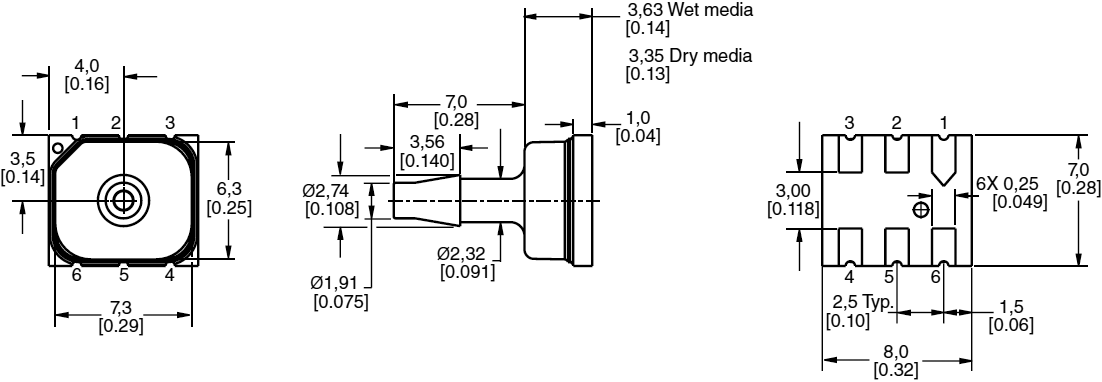

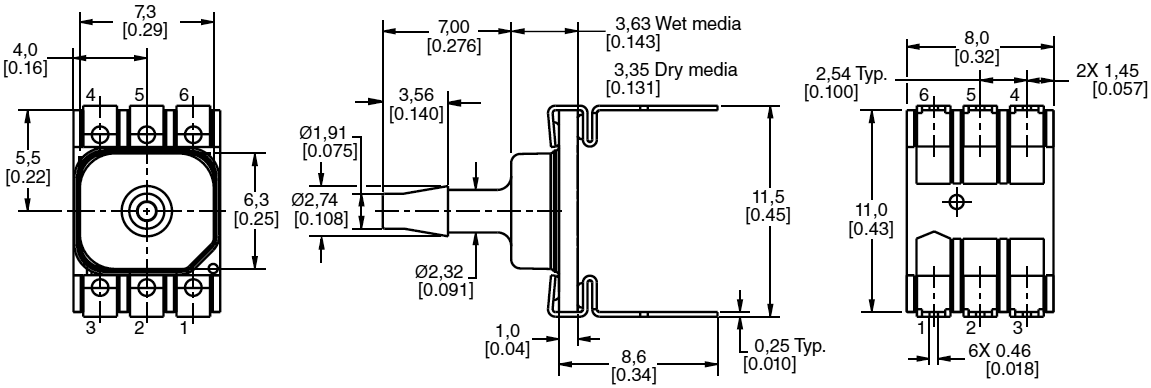

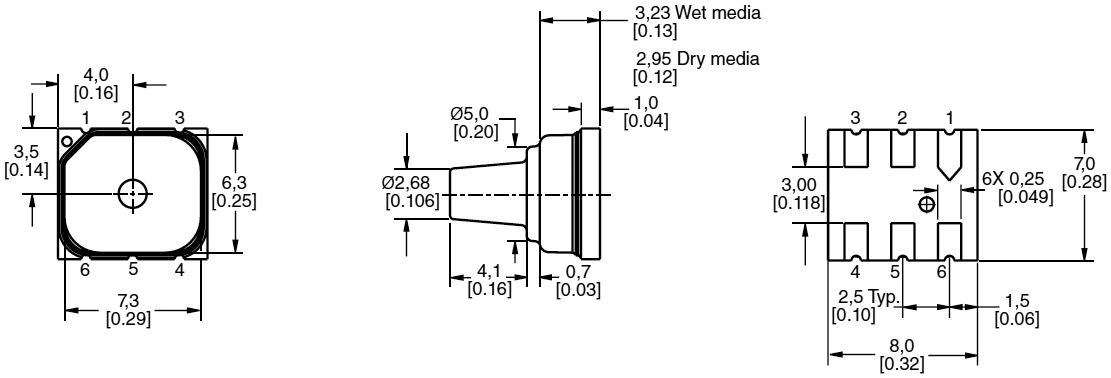

- Fig. 1. (ABPDANN001PGAA5, ABPDANN005PG2A3, ABPDANN010BG2A3, ABPDANT015PGAA5)

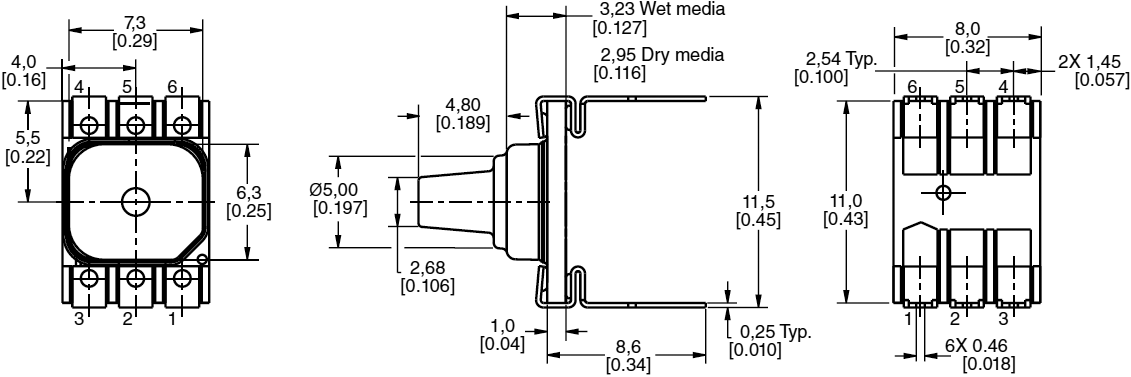

- Fig. 2. (ABPDJJN010KG2A3)

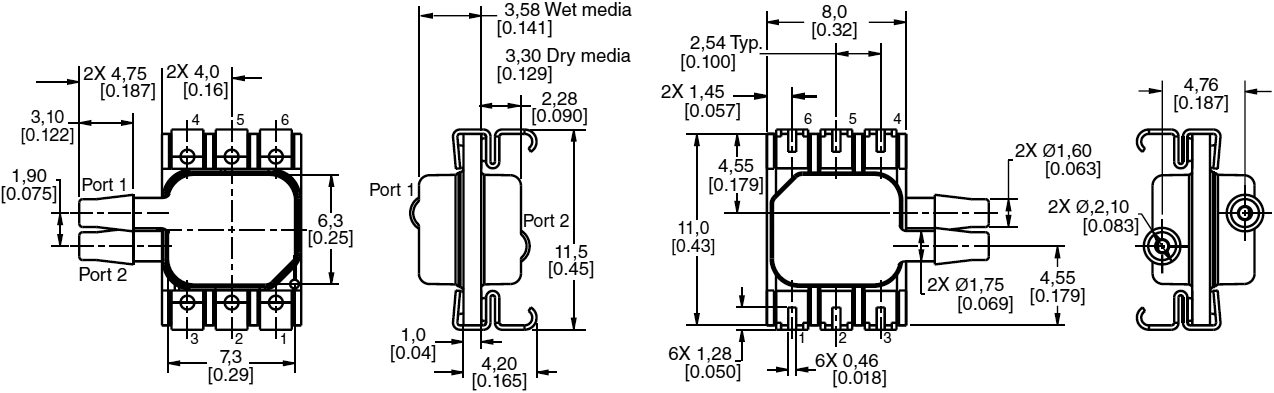

- Fig. 3. (ABPDLNN100MG2A3)
- Fig. 4. (ABPDRRT005PG2A5)
- Fig. 5. (ABPLANN001PG2A5, ABPLANT005PG2A3, ABPLANT015PD2A5)
- Fig. 6. (ABPLANT160MGAA5, ABPLLNN600MGAA3, ABPLLNT010BGAA5)
- Fig. 7. (ABPMAND001PG2A3, ABPMANN004BGAA5, ABPMANN030PG2A3, ABPMANT100PG2A3)
- Fig. 8. (ABPMJJT015PGAA5)
- Fig. 9. (ABPMLNN001PGAA3)
- Fig. 10. (ABPMRRN060MDAA5, ABPMRRN060MDSA3)
Related items:
- SEK002 (ABPDANN005PG2A3, ABPDANN006BG2A3, ABPDANN010BG2A3, ABPDANN030PG0D3, ABPDANN060MD0A5, ABPDANT006KGSA5, ABPDANT030PG0D3, ABPDANT030PG0D5, ABPDANT150PG4A5, ABPDANV001BD2A5, ABPDANV005PGSA5, ABPDANV015PGSA3, ABPDANV030PGSA3, ABPDANV030PGSA5, ABPDANV060PGSA3, ABPDANV150PGSA3, ABPDJJN010KG2A3, ABPDJJT001PDSA3, ABPDLNN100MG2A3, ABPDLNV150PGSD3, ABPDRRT0xxx, ABPDRRN060MGSA5, ABPDRRVxxx3, ABPDRNV150PGSA3, ABPLANN001PG2A5, ABPLANT0xxx, ABPLANV001PG0A3, ABPLLNN015PGST5, ABPLLNN030PGST5, ABPLLNN060MGSA3, ABPLLNN150PGST5, ABPLLNN400MG2S3, ABPLLNT060MGSA3, ABPLLNVxxx3, ABPLNNN001PGxA3, ABPLNNN010BGST5, ABPLNNN060MGSA3, ABPLNNT006KDSS3, ABPLNNV100PG2T3, ABPLNNV400KD2T3, ABPMAND001PG2A3, ABPMANN0xxx3, ABPMANN100PG2A3, ABPMANT100PG2A3, ABPMANV001PG2A3, ABPMANV005PGSA5, ABPMANV015PG2A3, ABPMANV015PG7A5, ABPMANV030PG2A3, ABPMANV030PGSA5, ABPMANV060PG2A3, ABPMANV150PG2A3, ABPMRRN060MDSA3, ABPMRRN005PD2A3, ABPMRRN006KDSA3, ABPMRRN010KD2A3, ABPMRRN015PD2A5, ABPMRRN025KD2A3, ABPMRRN100MDSA3, ABPMRRT030PD4A3, ABPMRRVxxx3, ABPMRNN030PG0A3, ABPMRNN060KGSA3, ABPMRNT060MGSS3, ABPMRNT150PGSA3, ABPMJNN060MG2A3, ABPMJNN060MG3A3, ABPMLNV006KG2A3)
Package:
- reel (ABPMRNN400MDAA3T)
- tape (ABPMRNN400MDAA3T)
Mounting:
- SMT (ABPLxxx, ABPMxxx, ABP2LxxxA3XX, ABP2MxxxA3XX)
