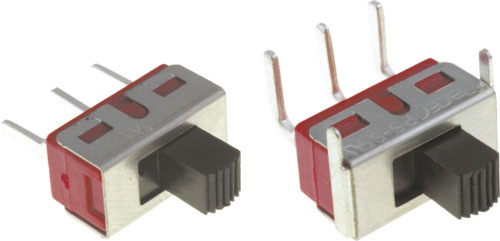

SL19ide switches, SL19 series

SL19ide switches, SL19 series, SL19123, SL19121, SL19-124, SL19-120 |EN|

Manufacturer	CANAL ELECTRONIC
Type of switch	slide
Max. contact resistance:	10mΩ
Body material	stainless steel
Actuator material	polyamide
Min. insulation resistance	100MΩ
Contact material	copper
Terminals material	copper alloy
Contact plating	silver plated
Button marking	blank
Actuator colour	black
Positions	2
Contacts layout	SPDT
Switch. method*	ON-ON
Body col.	silver
AC contacts rating @R**	3A / 250V AC
DC contacts rating @R**	6A / 28V DC
Body dim.	12.8x6.7x6.35mm
Manufacturer series	SL19

* the position in bracket indicates momentary position.
** at resistive load

Symbol	Knob height	Operating temperature
	[mm]	[°C]
SL19123	4.65	-20...85
SL19121	4.65	-20...85
SL19-124	4.45	-30...130
SL19-120	5.05	-30...130

Symbol	Mounting	Leads	Term. pitch	Mechanical durability	Schematic diagram	Dimensions
			[mm]

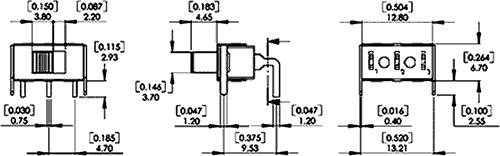

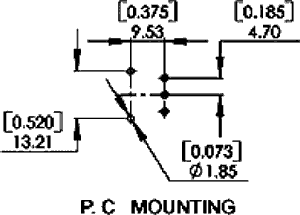

SL19123	THT	for PCB, angled	4.7	30000 cycles	Fig. 1-1.	Fig. 2-1.
SL19121	THT	for PCB, straight	4.7	30000 cycles	Fig. 1-1.	Fig. 2-1.
SL19-124	THT	for PCB, angled	3.81	-	-	-
SL19-120	on panel, screw type	for soldering	4.7	-	-	-
