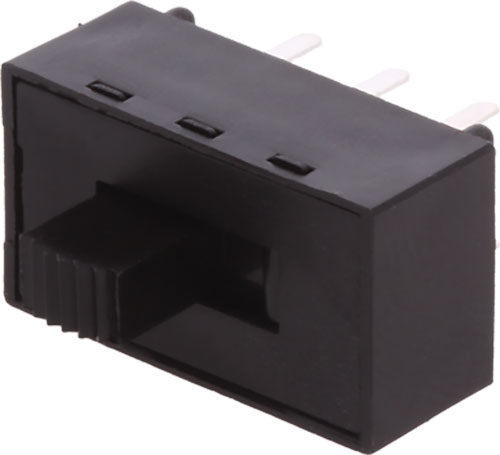

Slide switches, L series
| Manufacturer | C&K |
| Type of switch | slide |
| Leads | for PCB |
| Knob height | 5.08mm |
| AC contacts rating @R* | 2A / 250V AC |
| DC contacts rating @R* | 4A / 28V DC |
| Mounting | THT |
| Operating temperature | -30...65°C |
| Term. pitch | 4.6mm |
| Contact plating | silver plated |
| Contact material | copper |
| Max. contact resistance: | 10mΩ |
| Min. insulation resistance | 1GΩ |
* at resistive load
| Symbol | Switch. method* | Contacts layout | Positions | Body dim. |
|---|---|---|---|---|
| [mm] | ||||
| L202011MS02Q | ON-ON | DPDT | 2 | 19.1x10.8x5.6 |
| L203011MS02Q | ON-ON-ON | DP3T | 3 | 23.9x10.8x9.1 |
| L102011MS02Q | ON-ON | SPDT | 2 | 19.1x10.8x5.6 |
| L202021MA04Q | ON-ON | DPDT | 2 | 10.46x20.32x13.97 |
* the position in bracket indicates momentary position.
